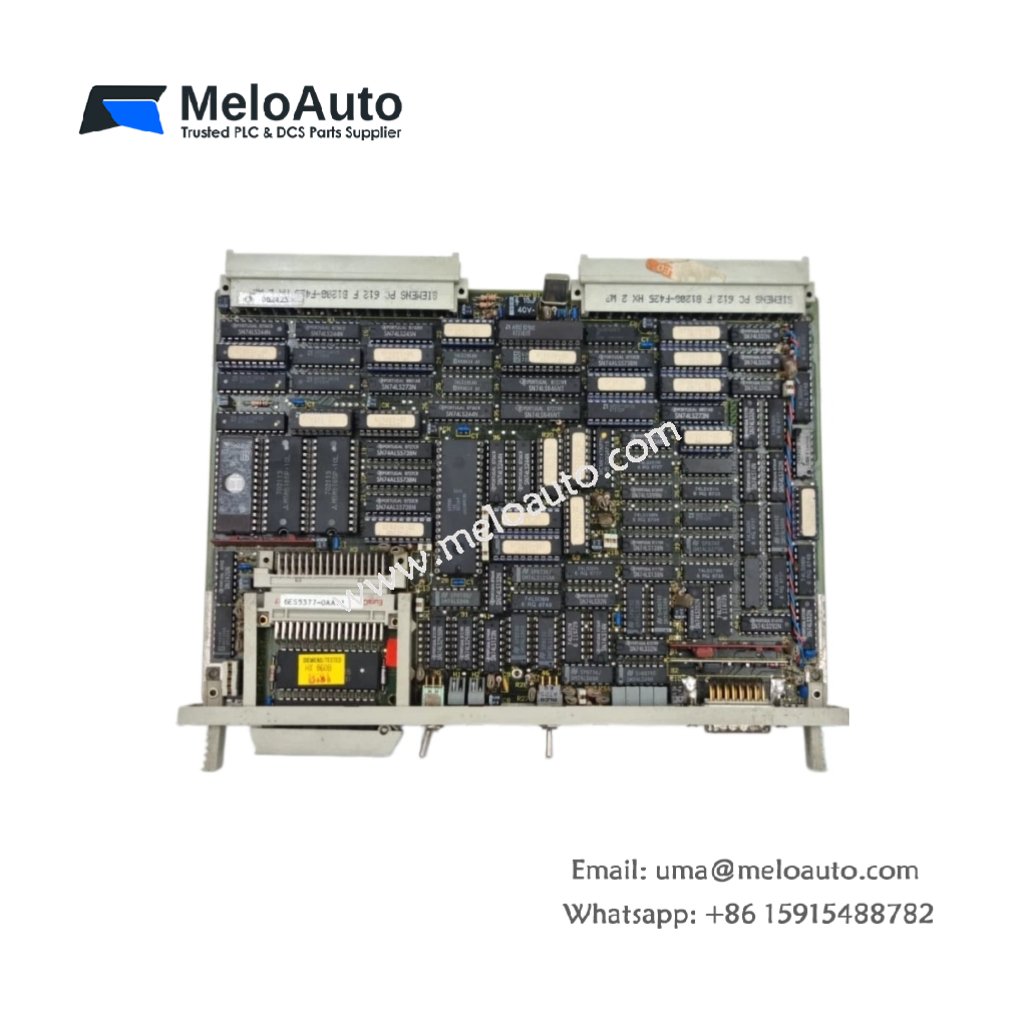

Siemens 6ES5312-5AA13 | SIMATIC S5 Expansion Interface

The 6ES5312-5AA13 connects a central controller to remote S5 expansion racks. This interface module serves as the master unit in a multi-rack configuration. It transmits data between the CPU and up to four extension frames. Consequently, operators can build larger automation systems without replacing the main rack.

You can mount this module directly into the standard S5-115U or S5-135U rack. The 6ES5312-5AA13 occupies a single slot in the central controller. It communicates exclusively with the IM313 or IM314 slave modules. This pairing ensures reliable data exchange across the entire system.

Technical Specifications and Physical Dimensions

The module operates without any internal battery or energy storage. It draws all necessary power from the S5 backplane. The 6ES5312-5AA13 contains no moving parts or wear-prone components. Below is a complete breakdown of its technical characteristics.

Specification	Detail
Product Type	IM312 Interface Module (Master)
Compatible Modules	IM313, IM314 (Slave units)
Connection Type	20-pin flat ribbon cable
Max Expansion Racks	4 (Up to 5 meters cable length)
Dimensions (H x W x D)	250 mm x 25 mm x 190 mm
Weight	0.50 kg (Approx.)
Energy Storage	None (No battery or capacitor)
Slot Requirement	1 single-width slot in central rack

Interface Layout and Connection Details

A single 20-pin female connector dominates the module’s front panel. The 6ES5312-5AA13 uses a standard flat ribbon cable for this link. You need an IM313 or IM314 in each remote rack for proper operation. A status LED on the front indicates active communication with the expansion frames.

This module does not include any analog or digital I/O points. It functions purely as a data transmission gateway. The 6ES5312-5AA13 handles all handshaking and error checking automatically. Therefore, the CPU can focus on executing control logic without interruption.

Operational Benefits for System Expansion

This interface module allows you to add I/O capacity economically. You do not need to purchase a second CPU for larger systems. The 6ES5312-5AA13 supports cable runs up to five meters between racks. Engineers value this flexibility for distributed machine layouts.
