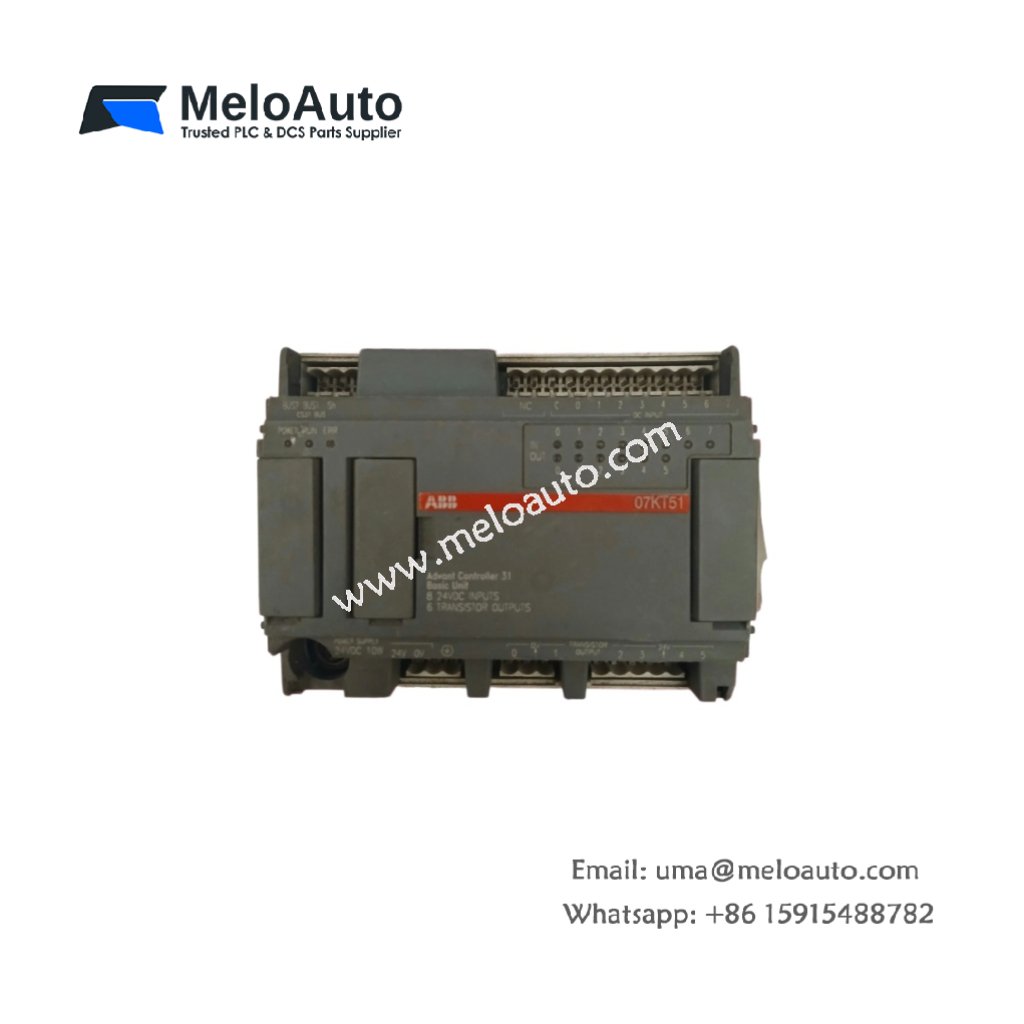

ABB 1SBP260512R1001 Basic Unit

This basic unit serves as the core controller for ABB’s Advant Controller 31 series. It handles logic execution and communication tasks for industrial automation systems. Therefore, this component suits small to mid-sized control applications in various industries.

Physical Dimensions and Weight Specifications

The ABB 1SBP260512R1001 features a compact metal housing for rack mounting. Its width occupies a single slot in the Advant Controller chassis. The unit depth measures 220 mm for backplane connectivity. Consequently, technicians can install this controller without special tools.

Interface Types and Connection Layout

The ABB 1SBP260512R1001 provides one RS-232 port for programming access. A second RS-485 interface supports Modbus communication with field devices. The front panel carries a 9-pin D-sub connector for diagnostic tools. Hence, users can monitor system status without opening the control cabinet.

Component Count and Onboard Memory

This basic unit contains one main board with a 16-bit microcontroller. The board holds 128 KB of RAM for user program execution. You will also find 256 KB of flash memory for non-volatile storage. An onboard real-time clock maintains schedule data during power cycles.

Energy Storage and Power Consumption

The ABB 1SBP260512R1001 draws 200 mA from the 5V backplane supply. A lithium coin cell provides backup power for the RAM storage. This battery maintains program and data for 180 days without external power. Therefore, the controller retains critical information during extended shutdowns.

Processing Speed and I/O Capacity

The processor executes 0.8 microseconds per basic logic instruction. It handles up to 512 digital I/O points within a single scan. Users can store up to 1024 function blocks in the flash memory. This capacity supports automation tasks for conveyors, mixers, and packaging machines.
