Technical Overview of the Positioning Module

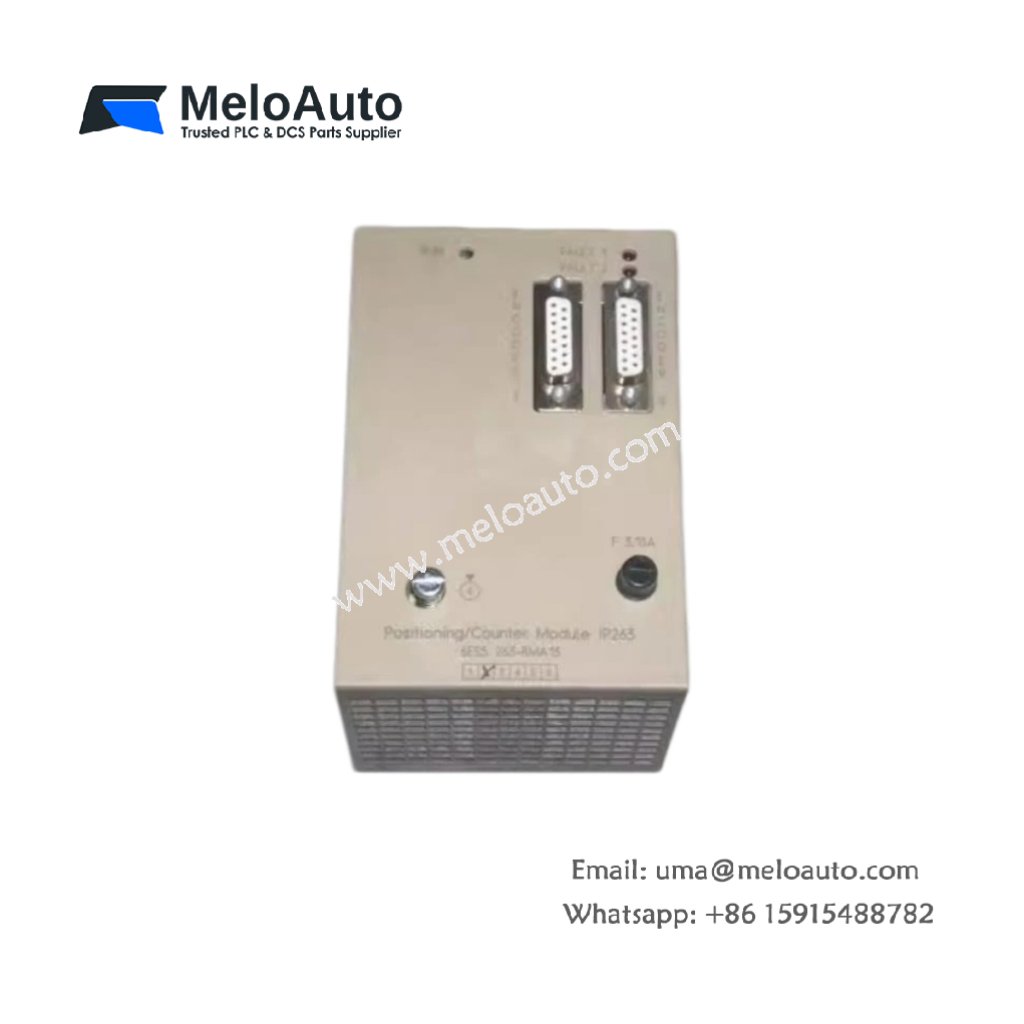

The Siemens 6ES5263-8MA13 functions as a dedicated positioning module for the SIMATIC S5 PLC family. This module controls servo and stepper motors for precise axis positioning tasks. It generates pulse trains and direction signals for motion control applications. The design supports incremental encoders for closed-loop position feedback.
Key Technical Specifications
This section details the exact parameters for the Siemens 6ES5263-8MA13 positioning module. Use these figures to verify compatibility with your motion control system.
| Parameter | Specification |
|---|---|
| Part Number | 6ES5263-8MA13 |
| Type | Positioning Module |
| Product Family | SIMATIC S5 |
| Number of Axes | 1 Axis |
| Control Signals | Pulse / Direction, CW / CCW |
| Maximum Frequency | 50 kHz |
| Positioning Range | -32,767 to +32,767 increments |
| Encoder Interface | Incremental (5V differential) |
| I/O Points | 4 Digital Inputs, 4 Digital Outputs |
| Dimensions (W x H x D) | Approx. 250 x 25 x 180 mm |
| Weight | Approx. 1.0 kg |
| Compatibility | SIMATIC S5-115U, 135U, and 155U systems |
Application and System Integration
This positioning module mounts directly onto the S5 backplane bus. It controls single-axis motion in conveying, cutting, or assembly applications. The Siemens 6ES5263-8MA13 generates pulse signals for stepper or servo drives. Its incremental encoder input provides real-time position verification. Consequently, engineers can implement precise point-to-point movements with confidence.
Reliability and Performance Characteristics
The module handles high-frequency pulse outputs without burdening the main CPU. Its dedicated design ensures consistent timing for motion commands. The robust construction withstands typical industrial vibration levels. Users select the Siemens 6ES5263-8MA13 for reliable single-axis positioning tasks.
