Schneider TSXP57453AM | Double-Format PL7 Processor

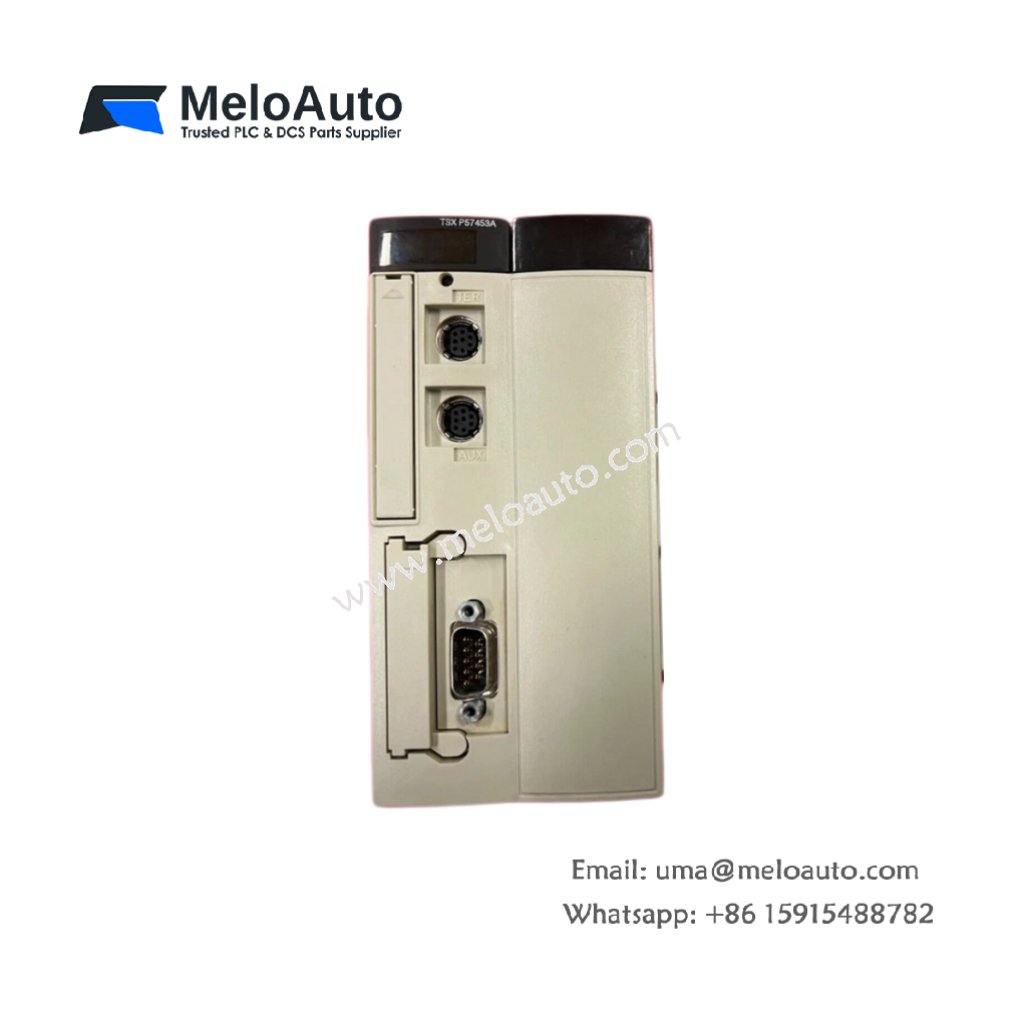

The Schneider TSXP57453AM delivers powerful processing for complex Modicon Premium applications. This double-format processor occupies two rack slots for enhanced performance and features. It executes 90 instructions per millisecond for demanding real-time control tasks. Weighing only 0.85 kg, the Schneider TSXP57453AM fits into Premium racks with double-width spacing. Its dimensions measure 187.9 mm x 302.8 mm x 160 mm.

Processing Power and Memory Architecture

The Schneider TSXP57453AM includes 1 MB of built-in flash memory for large user programs. This processor features 384 KB of internal RAM for extensive data storage. It handles up to 4,096 discrete I/O and 512 analog I/O channels. Moreover, the Schneider TSXP57453AM supports 4 built-in serial ports for versatile communication. Consequently, you can connect multiple HMIs, drives, and programming terminals simultaneously.

Communication Ports and Energy Storage

The Schneider TSXP57453AM features two Modbus ports and two Uni-Telway ports. It also includes a Mini DIN connector for terminal or HMI connections. Importantly, the Schneider TSXP57453AM contains a lithium battery for SRAM data backup. This battery provides energy storage for up to 1,000 hours without external power. Therefore, your critical program and data remain safe during extended power outages.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider TSXP57453AM
Product Category	Modicon Premium Double-Format PL7 Processor
Processor Type	32-bit microcontroller
Processing Speed	90 instructions per millisecond
Program Memory (Flash)	1 MB
Internal RAM	384 KB
Format	Double (occupies 2 rack slots)
Discrete I/O Capacity	Up to 4,096 channels
Analog I/O Capacity	Up to 512 channels
Built-in Communication Ports	4 (2 Modbus + 2 Uni-Telway)
Modbus Port Connectors	2 x 9-pin SUB-D
Uni-Telway Port Connectors	2 x 5-pin Mini DIN
Supported Protocols	Modbus, Modbus Plus, Uni-Telway, Character mode
Maximum Communication Modules	8
Maximum Ethernet Modules	4
Energy Storage Type	Lithium battery (user-replaceable)
Battery Backup Duration	1,000 hours (approximately 41 days)
Current Consumption (5V DC)	600 mA from rack
Power Dissipation	3.0 W maximum
Number of Components	1 main PCB + battery holder + 4 ports + double-width housing
Net Weight	0.85 kg (850 grams)
Gross Weight (packaged)	1.1 kg
Dimensions (H x W x D)	187.9 mm x 302.8 mm x 160 mm
Real-Time Clock Accuracy	±5 minutes per month
RTC Battery Backup	Same lithium battery (shared)
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA, ATEX Zone 2
Configuration Software	PL7 Pro (version 4.5 or higher)

Installation and Application Details
