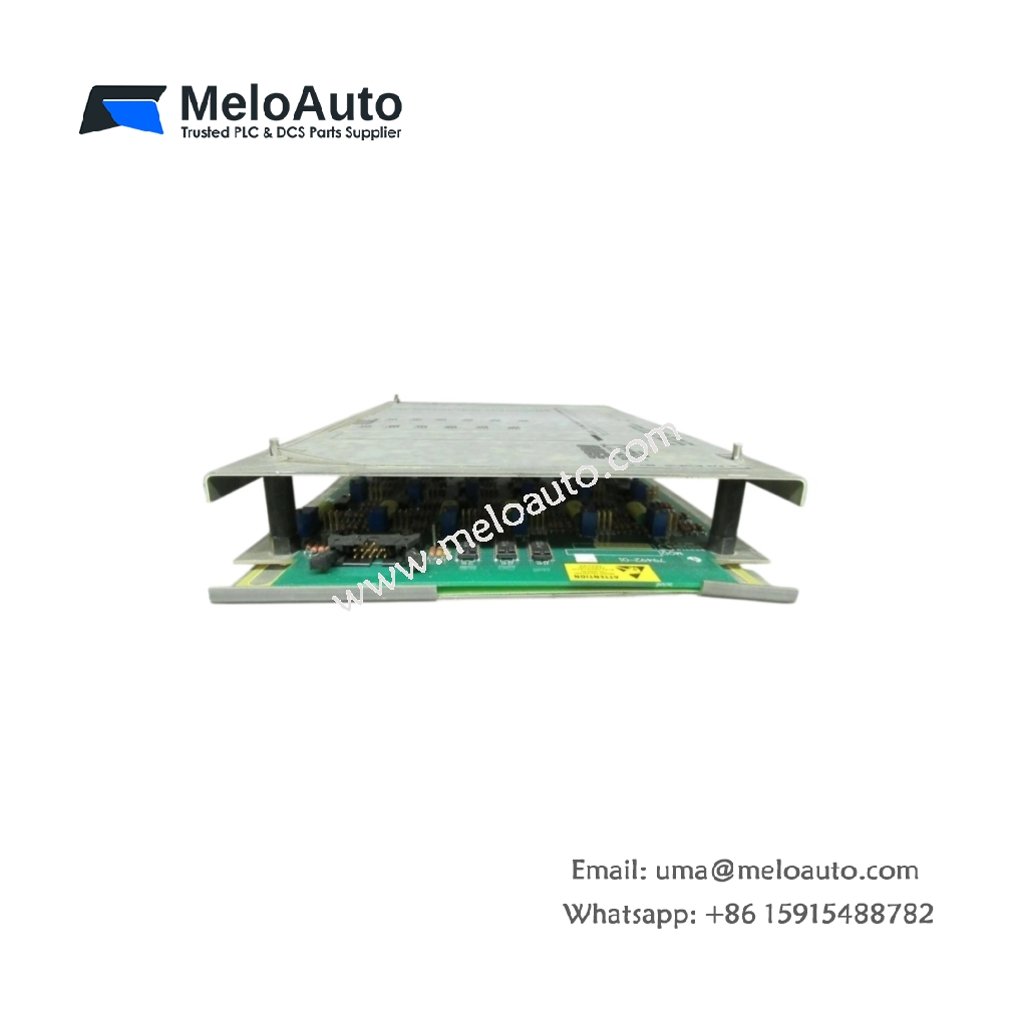

Bently Nevada 81228-01 Monitor Module

Vibration Monitoring with the 81228-01

The 81228-01 monitors shaft vibration and position signals inside Bently Nevada 3300 Series systems. This monitor module processes proximity probe inputs for rotating machinery protection. Reliability engineers therefore apply it to turbines, compressors, and large motors. Its full-width board slides into standard 3300 Series rack slots without extra hardware.

Detailed Technical Parameters

Measurement integrity defines the 81228-01, because the input stage isolates each probe channel from the backplane electronics. The module filters signal noise before converting readings into vibration values. Meanwhile, front-panel indicators reveal channel status during walkdown checks. Review the essential specifications in the table below.

Parameter	Specification
Function	Vibration and position monitoring for 3300 Series racks
Input signals	Proximity probe transducer inputs
Dimensions (W × H × D)	40 × 220 × 250 mm
Weight	Approximately 1.2 kg
Interface	3300 Series backplane connector plus front transducer terminals
Component count	Input amplifier stage plus signal processing board
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 65 °C

Integration into 3300 Series Racks

The 81228-01 fits into a standard 3300 Series rack slot and connects through the backplane connector. Commissioning engineers verify probe gaps and alarm setpoints during startup procedures. Consequently, protection channels return to service quickly after module replacement. The board samples transducer signals within a fixed interval. Furthermore, the isolated front end resists interference from nearby power cables and drives.

Why Plants Choose This Module

Many power stations still operate 3300 Series racks for their proven machinery protection. Hence, the 81228-01 serves as a dependable spare for keeping vibration channels online. Its standardized board format simplifies stock management across multiple sites. In addition, the robust input stage maintains stable readings under electrical noise. This module keeps machinery protection accurate and plant operations on schedule.
