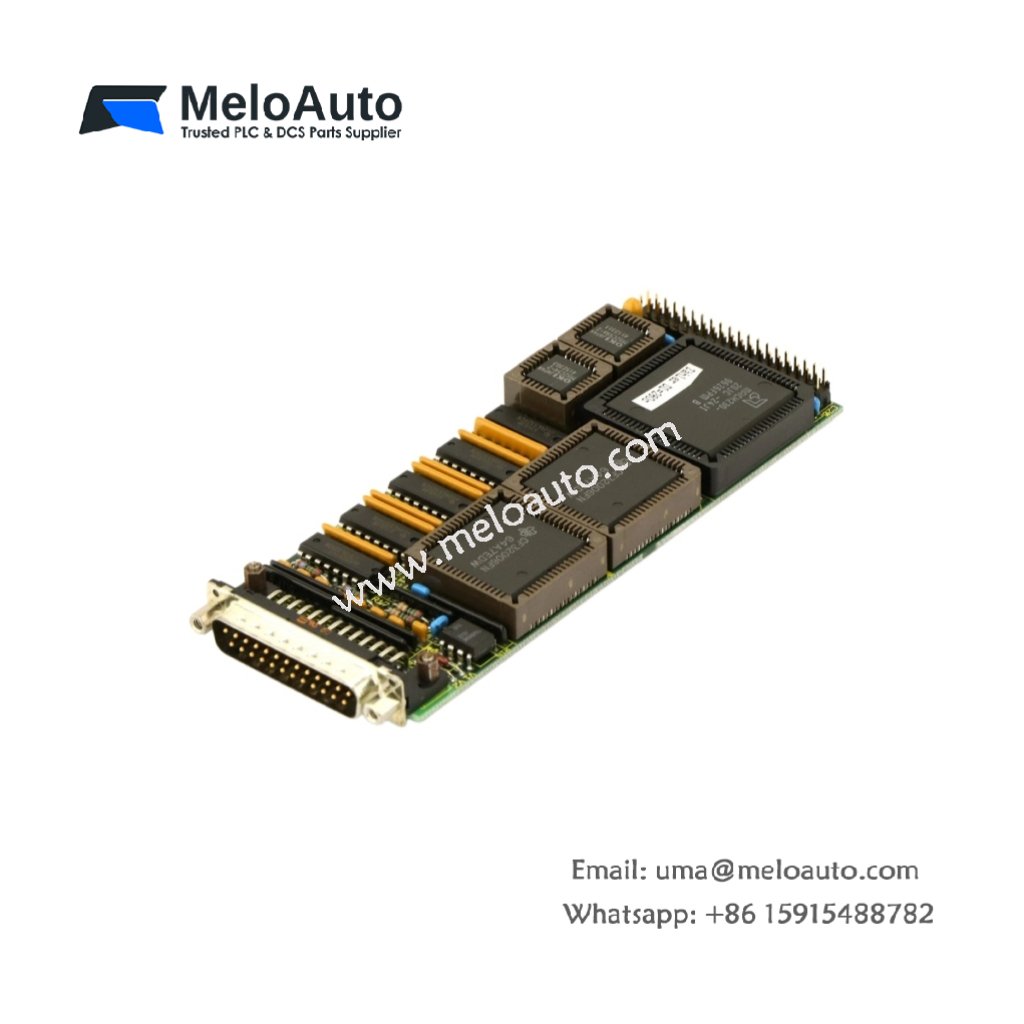

Siemens 6ES5252-5BC11 Incremental Encoder Board SIMATIC S5

Technical Overview

The 6ES5252-5BC11 incremental encoder board processes quadrature signals from rotary encoders and linear scales. This module captures position, speed, and direction data for motion control applications within SIMATIC S5 systems. It accepts TTL or RS-422 differential signals for high noise immunity. The onboard counter registers up to 16-bit values, enabling precise positioning in demanding automation tasks.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5252-5BC11
Product Type	Incremental Encoder Board
Series	SIMATIC S5
Signal Input	TTL and RS-422 differential
Counter Resolution	Up to 16-bit
Encoder Supply	5V DC from board
Count Frequency	Up to 100 kHz (depending on encoder)
Signal Processing	Quadrature decoding with direction detection
Compatibility	5V differential and TTL encoders
Approx. Weight	0.3 kg

Signal Processing and Decoding

The board decodes the quadrature signals (A, B, and reference pulse) to determine position and direction. It counts pulses from both channels for high-resolution measurement. The reference pulse input allows for homing or zero-position referencing.

Robust Interference Immunity

The RS-422 differential inputs reject common-mode noise from long cable runs and industrial equipment. This design ensures reliable count acquisition even in electrically noisy environments. Furthermore, the board provides a regulated 5V supply for powering the encoder.

Motion Control Applications

This encoder board excels in CNC machine tools, robotic axes, and conveyor positioning systems. It provides real-time feedback to the controller for closed-loop motion control. The module’s high-speed counting supports applications requiring rapid acceleration and precise stopping.
