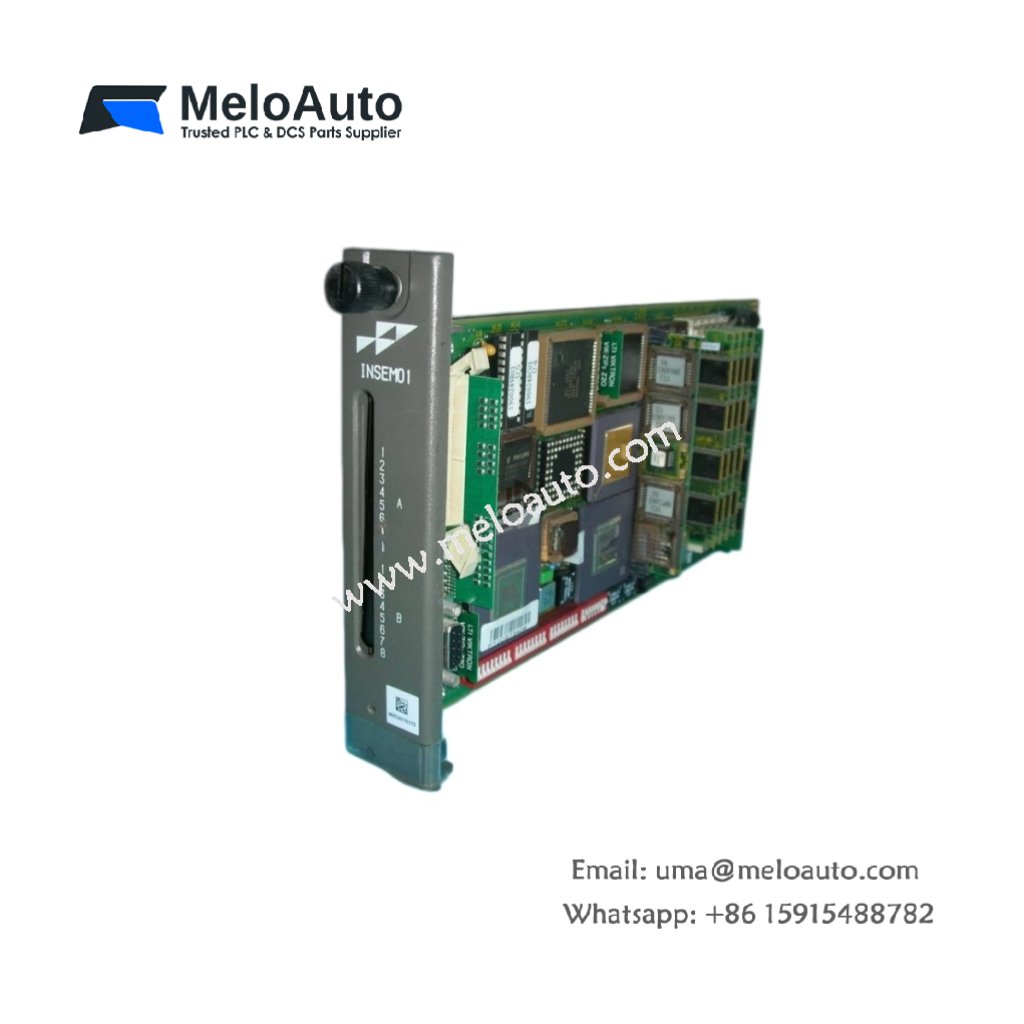

ABB Bailey INSEM01 Sequence of Events (SOE) Master Module

Overview

The ABB Bailey INSEM01 Sequence of Events (SOE) Master Module plays a vital role in monitoring and recording event sequences within industrial control systems. This module integrates seamlessly with ABB’s advanced control platforms, offering high accuracy and reliability for event logging.

Core Functions

• Primary Role: The INSEM01 functions as a Sequence of Events (SOE) Master and Industrial Input Module.
• Event Timestamp Accuracy: It provides a high level of precision with a timestamp accuracy of +1 millisecond.
• Event Memory: Capable of storing up to 10,000 events, it ensures comprehensive data capture for troubleshooting and system analysis.
• Analog Input Resolution: Featuring 16-bit resolution for analog inputs (ADC variant), this module captures detailed data for precise analysis.
• Measurement Accuracy: The module ensures high-precision measurements with +0.05% accuracy, supporting critical applications.
• System Compatibility: The INSEM01 is fully compatible with ABB Bailey Infi 90, Net 90, and Symphony DCS platforms, enhancing system flexibility.

Electrical & Performance

• Input Voltage Tolerance: Designed for industrial stability, the INSEM01 maintains reliable operation even under fluctuating input voltages.
• High-Fidelity Event Capture: It provides accurate event sequencing, facilitating precise root-cause analysis during diagnostics.
• Diagnostic Capability: The INSEM01 allows detailed event sequencing, enhancing troubleshooting and fault detection processes.

Environmental Conditions

• Operating Temperature: It operates effectively in extreme conditions, with a temperature range from -40°C to +85°C, ensuring durability in harsh environments.
• Construction: Built with rugged, industrial-grade materials, the INSEM01 is designed to withstand the harshest conditions in industrial settings.

Physical Dimensions

• Size: 12.5 x 8.5 x 2.5 inches (318 x 216 x 64 mm), making it compact and suitable for integration into tight spaces within control panels.
• Weight: At 0.5 kg, this lightweight design allows easy installation and maintenance without adding unnecessary bulk to your system.

Technical Specifications

Conclusion

The ABB Bailey INSEM01 Sequence of Events Master Module offers exceptional event logging capabilities for industrial applications. With its high accuracy, large memory capacity, and compatibility with ABB control platforms, it ensures reliable system monitoring and quick diagnostics. Its rugged construction and wide operating temperature range make it ideal for demanding industrial environments.
