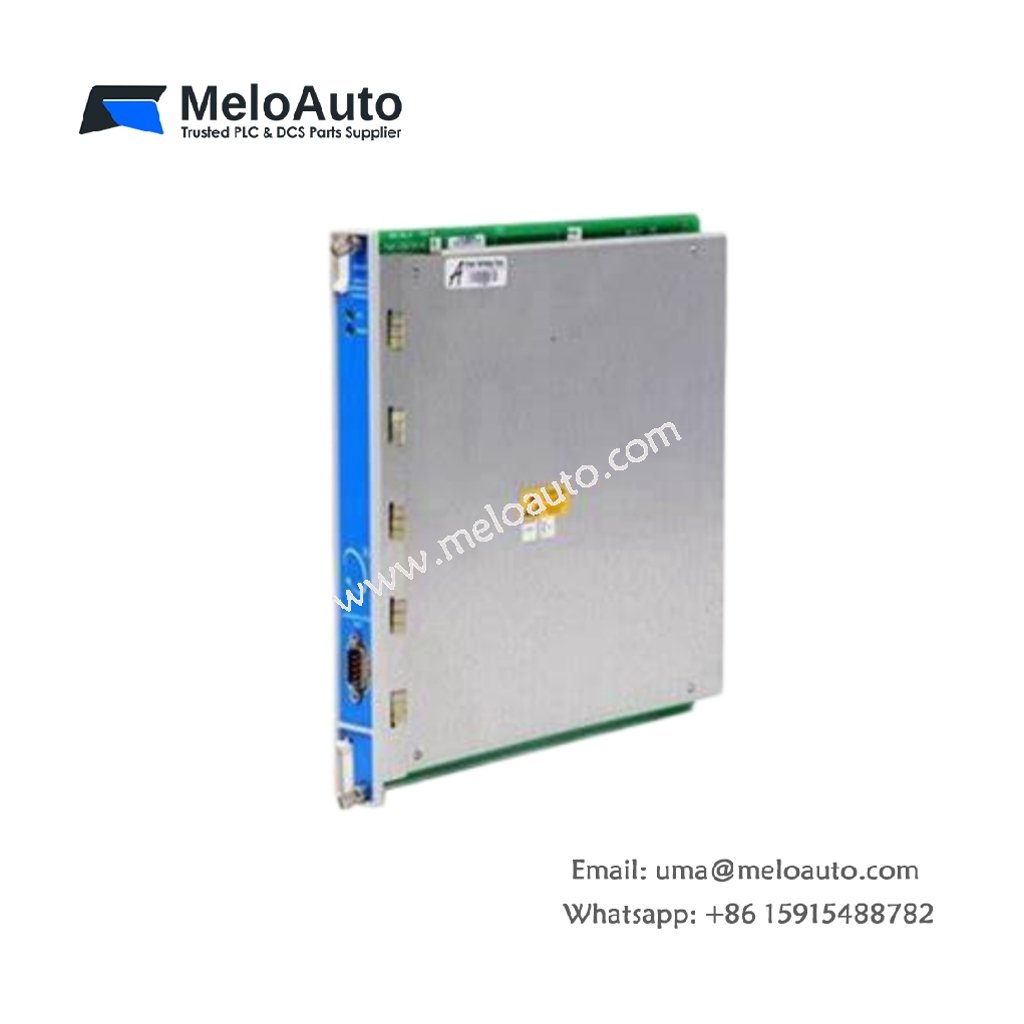

Bently Nevada 3500/60 133819-01 RTD/TC Temperature I/O Module

Product Overview

The Bently Nevada 3500/60 133819-01 delivers high-precision temperature monitoring for critical rotating assets. This I/O module accepts both RTD and thermocouple sensor inputs directly. It functions as a key component within the 3500 series machinery protection framework. The device specifically monitors bearing temperatures, differential expansion, and process thermal conditions. Many petrochemical plants and power stations rely on this module for continuous asset oversight.

Technical Specifications

Key Parameters

Interface and Connectivity

The Bently Nevada 3500/60 133819-01 uses a 40-pin front connector for all field wiring terminations. A dedicated RS-232 serial port handles configuration uploads and diagnostic data retrieval. The backplane interface carries both power and communication signals to the rack processor. Each channel provides independent open-circuit and short-circuit fault detection. Green LEDs indicate normal operation while amber alerts signal channel alarms. The module supports both two-wire and three-wire RTD configurations seamlessly.

Internal Architecture and Power Storage

This module incorporates seven major functional sections: input multiplexing, signal conditioning, analog-to-digital conversion, microprocessor control, isolation barrier, power regulation, and backplane communication. A 4MB flash memory stores configuration profiles and calibration coefficients. The onboard supercapacitor sustains critical settings during power dips up to 30 seconds. Surface-mount technology enhances resistance to mechanical vibration and thermal cycling.

Configuration and Setup

Installing the Bently Nevada 3500/60 133819-01 requires inserting it into an available 3500 rack slot. The system automatically assigns communication addresses based on physical position. Proprietary software allows independent alarm threshold programming for each input channel. Users select sensor types via DIP switch banks on the module faceplate. Always confirm wiring polarity before energizing the rack system. The module automatically performs a self-test sequence upon power-up.

Field Applications

This module performs exceptionally in steam turbine bearing temperature surveillance. It also monitors compressor discharge temperatures in gas processing facilities. Many operators apply it for motor winding temperature tracking in large induction motors. The Bently Nevada 3500/60 133819-01 works effectively in geothermal power generation plants too. Its compact channel density conserves valuable rack space in control cabinets.

Compliance and Quality Standards

The Bently Nevada 3500/60 133819-01 holds CE certification for European industrial installations. It meets API 670 machinery protection specifications rigorously. The module also satisfies IEC 61000-6-2 immunity requirements for heavy industrial environments. These approvals guarantee dependable operation in electromagnetic interference-prone sites.

Ordering and Support Information
