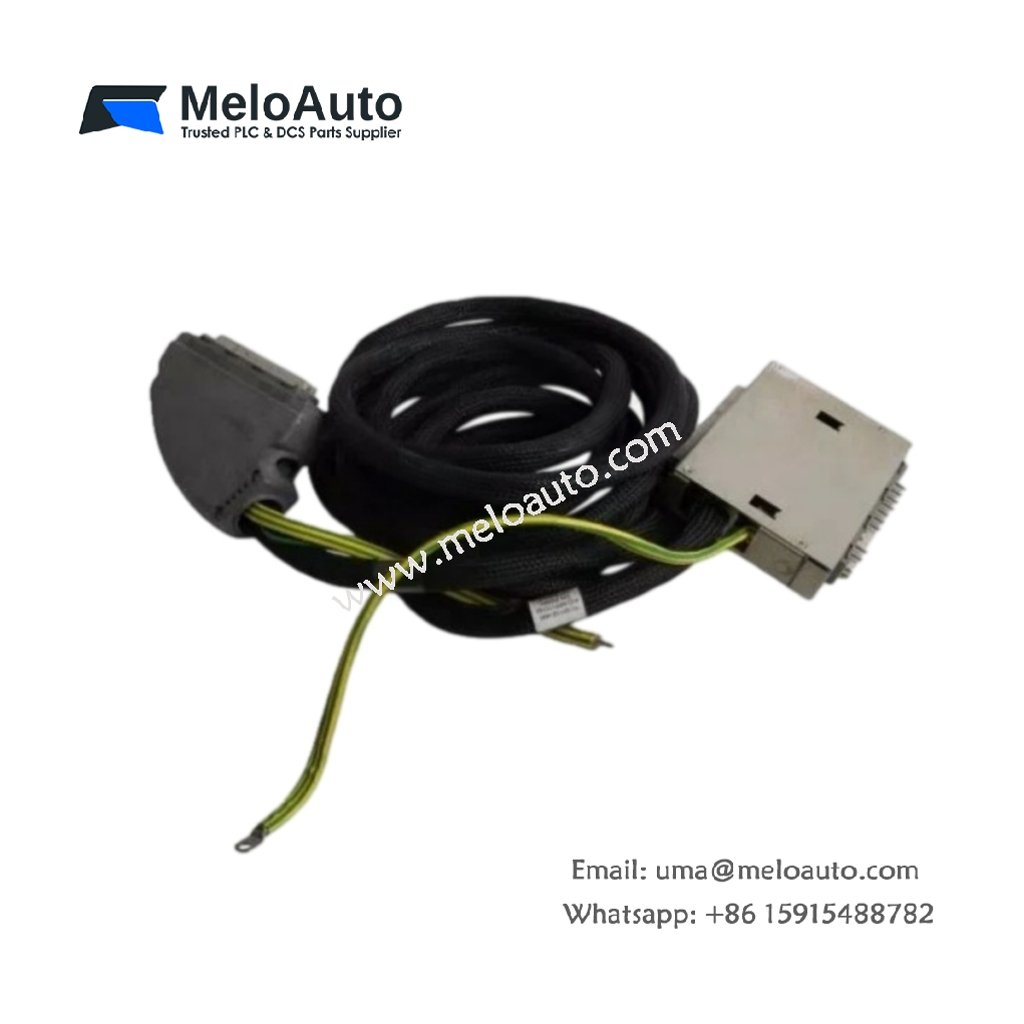

ICS Triplex TC-207-02-6M5 I/O Cable

The ICS Triplex TC-207-02-6M5 connects external I/O field devices to Regent and Trusted control platforms. System integrators choose this assembly for reliable signal routing in safety-critical installations. Consequently, the cable delivers consistent performance across demanding industrial environments.

Physical Dimensions and Weight Data

Cable routing often dictates how technicians plan cabinet layouts and field wiring. Therefore, the ICS Triplex TC-207-02-6M5 maintains a flexible profile that simplifies installation. It weighs approximately 0.9 kg and spans a total length of 6 metres. Additionally, its outer jacket measures 10 mm in diameter.

Interfaces and Connectivity Features

Stable signal transmission depends on dependable connectors at every termination point. The ICS Triplex TC-207-02-6M5 provides keyed connectors that prevent incorrect mating. Furthermore, shielded conductors reduce electromagnetic interference along the entire run. Strain relief boots protect solder joints from mechanical stress.

Component Count and Construction Details

Internal construction shapes both durability and signal integrity over time. The ICS Triplex TC-207-02-6M5 carries 50 individually insulated conductors within one assembly. Moreover, tinned copper strands resist corrosion in humid plant conditions. The jacket material meets flame-retardant standards for industrial cabling.

Key Technical Specifications

Parameter	Specification
Assembly Type	External I/O companion cable
Length	6 metres
Weight	0.9 kg
Outer Diameter	10 mm
Conductor Count	50 insulated conductors
Connector Type	Keyed, shielded
Shielding	Braided copper
Jacket Material	Flame-retardant PVC
Operating Temperature	-20°C to 70°C
Voltage Rating	300 V

Signal Performance and Compliance

Clean signal transfer directly influences overall system accuracy. The ICS Triplex TC-207-02-6M5 maintains low crosstalk across all conductor pairs. Meanwhile, the braided shield blocks interference from nearby power cables. These features support dependable operation in electrically noisy plant environments.

Industrial sites also demand strict safety certifications before deployment. The assembly complies with IEC and UL wiring standards for control systems. In addition, it meets CE requirements for electromagnetic compatibility. These credentials ensure safe integration with Regent and Trusted hardware.
