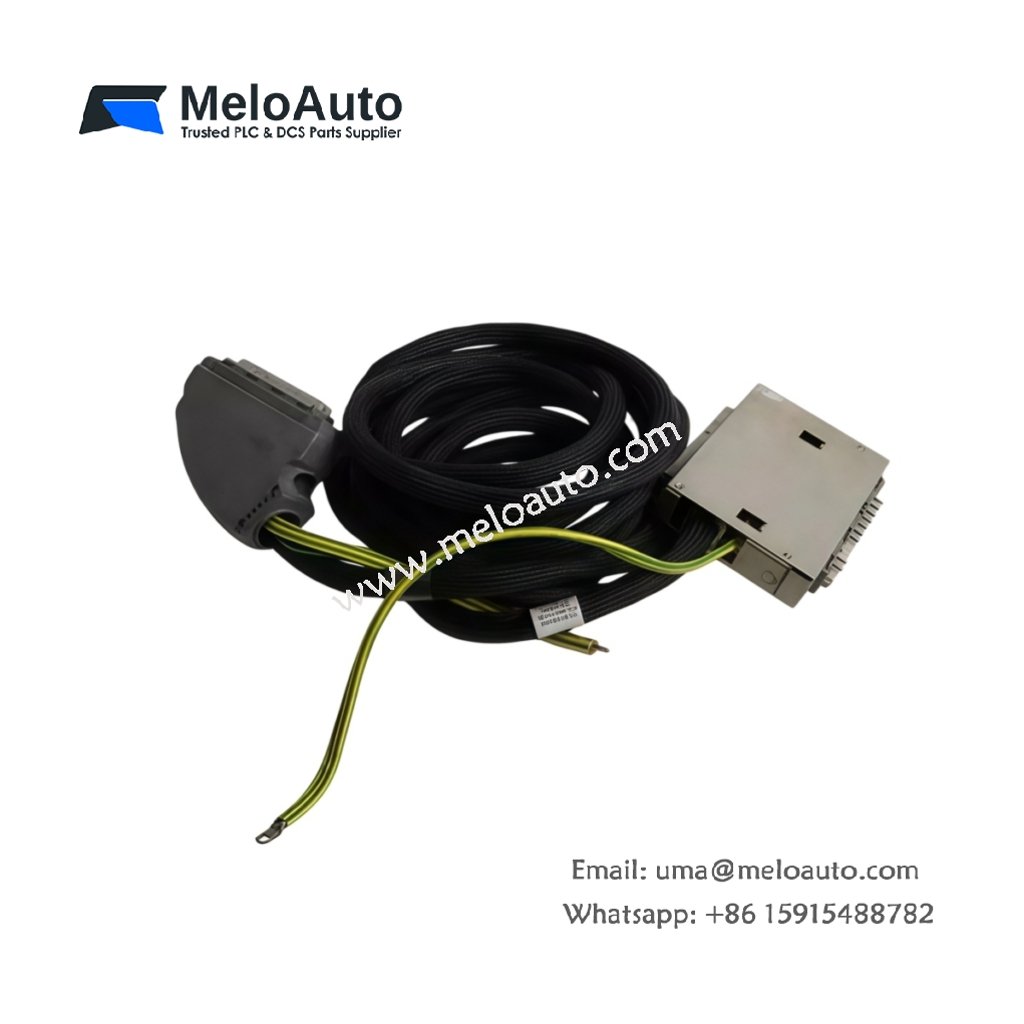

ICS Triplex TC-203-02-6M5 Interconnect Cable

The ICS Triplex TC-203-02-6M5 links controller chassis and expansion racks within Regent and Trusted architectures. System integrators choose this assembly for dependable backplane-to-backplane signal routing. Consequently, the cable sustains consistent data transfer across safety-critical control networks.

Physical Dimensions and Weight Data

Cabinet layout often dictates how technicians plan interconnect routing between racks. Therefore, the ICS Triplex TC-203-02-6M5 maintains a flexible profile that simplifies installation. It weighs approximately 0.9 kg and spans a total length of 6 metres. Additionally, its outer jacket measures 10 mm in diameter.

Interfaces and Connectivity Features

Stable data exchange depends on dependable connectors at every termination point. The ICS Triplex TC-203-02-6M5 provides keyed connectors that prevent incorrect mating. Furthermore, shielded conductors reduce electromagnetic interference along the entire run. Strain relief boots protect solder joints from mechanical stress.

Component Count and Construction Details

Internal construction shapes both durability and signal integrity over time. The ICS Triplex TC-203-02-6M5 carries 50 individually insulated conductors within one assembly. Moreover, tinned copper strands resist corrosion in humid plant conditions. The jacket material meets flame-retardant standards for industrial cabling.

Key Technical Specifications

Parameter	Specification
Assembly Type	System interconnect cable
Length	6 metres
Weight	0.9 kg
Outer Diameter	10 mm
Conductor Count	50 insulated conductors
Connector Type	Keyed, shielded
Shielding	Braided copper
Jacket Material	Flame-retardant PVC
Operating Temperature	-20°C to 70°C
Voltage Rating	300 V

Signal Performance and Compliance

Clean signal transfer directly influences overall system accuracy. The ICS Triplex TC-203-02-6M5 maintains low crosstalk across all conductor pairs. Meanwhile, the braided shield blocks interference from nearby power cables. These features support dependable operation in electrically noisy plant environments.

Industrial sites also demand strict safety certifications before deployment. The assembly complies with IEC and UL wiring standards for control systems. In addition, it meets CE requirements for electromagnetic compatibility. These credentials ensure safe integration with Regent and Trusted hardware.
