Technical Specifications and Hardware Overview

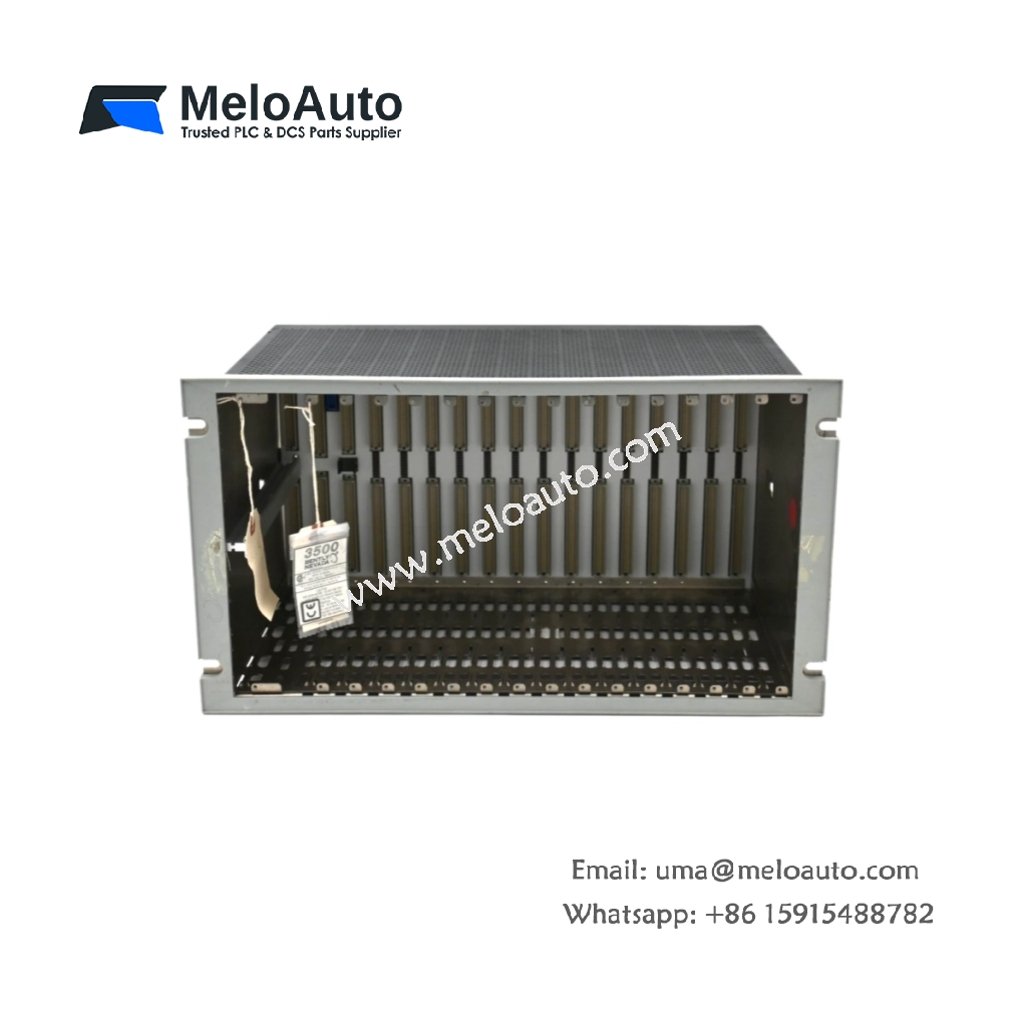

The Bently Nevada 3500/05-01-02-01-00-01 serves as the system rack for the 3500 series machinery protection platform. This rack measures 266 mm in height, 482 mm in width, and 330 mm in depth for standard 19-inch cabinet mounting. It weighs approximately 8.5 kilograms, which requires careful handling during installation procedures. The unit draws 0.1 A from a 24 V DC supply for backplane logic monitoring. It provides 12 slots for accommodating various 3500 series monitoring modules. The rack includes a passive backplane for power distribution and signal routing.
It features two power supply slots for redundant power configurations. The system rack provides a main bus for communication between all installed modules. It includes a grounding bar for chassis earthing and noise reduction. The unit supports both local and remote configuration through backplane communication. It contains no onboard memory for energy storage applications. The rack incorporates DIN rail mounting provisions for secure installation. The operating temperature range spans -20°C to 65°C for harsh environments. Storage temperatures extend from -40°C to 85°C without causing damage. Humidity tolerance covers 5% to 95% non-condensing conditions for reliable operation.
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 3500/05-01-02-01-00-01 |
| Category | System Rack |
| Dimensions (H×W×D) | 266 × 482 × 330 mm |
| Weight | 8.5 kg |
| Power Supply | 24 V DC, 0.1 A (backplane logic) |
| Module Slots | 12 slots |
| Power Supply Slots | 2 (redundant) |
| Backplane Type | Passive |
| Communication Bus | Main bus for all modules |
| Mounting | 19-inch rack or DIN rail |
| Grounding | Integrated ground bar |
| Memory Storage | None (passive chassis) |
| Operating Temp | -20°C to 65°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 5–95% RH (non-condensing) |
| Certifications | CE, ATEX, CSA |
System Integration and Configuration Features
This system rack houses all 3500 series modules in a single chassis. It provides 12 slots for monitors, interfaces, and relay modules. The Bently Nevada 3500/05-01-02-01-00-01 includes two dedicated power supply slots for redundancy. The rack uses a passive backplane to route signals between modules. It supports flexible module placement for customized system configurations. The unit provides a communication path for configuration and data transfer. It includes mounting brackets for standard 19-inch cabinet installation.
Installation and Physical Details
The 3500/05-01-02-01-00-01 requires 4U of vertical rack space for mounting. It fits into standard industrial cabinets with compatible mounting rails. The unit provides rear access for cable management and routing. It includes a removable front cover for module protection. The rack complies with ATEX and CSA certification for hazardous locations. It delivers stable mechanical support for modules during vibration conditions. The unit passes vibration testing at 10 to 55 Hz with 0.15 mm amplitude.
