Technical Specifications and Hardware Overview

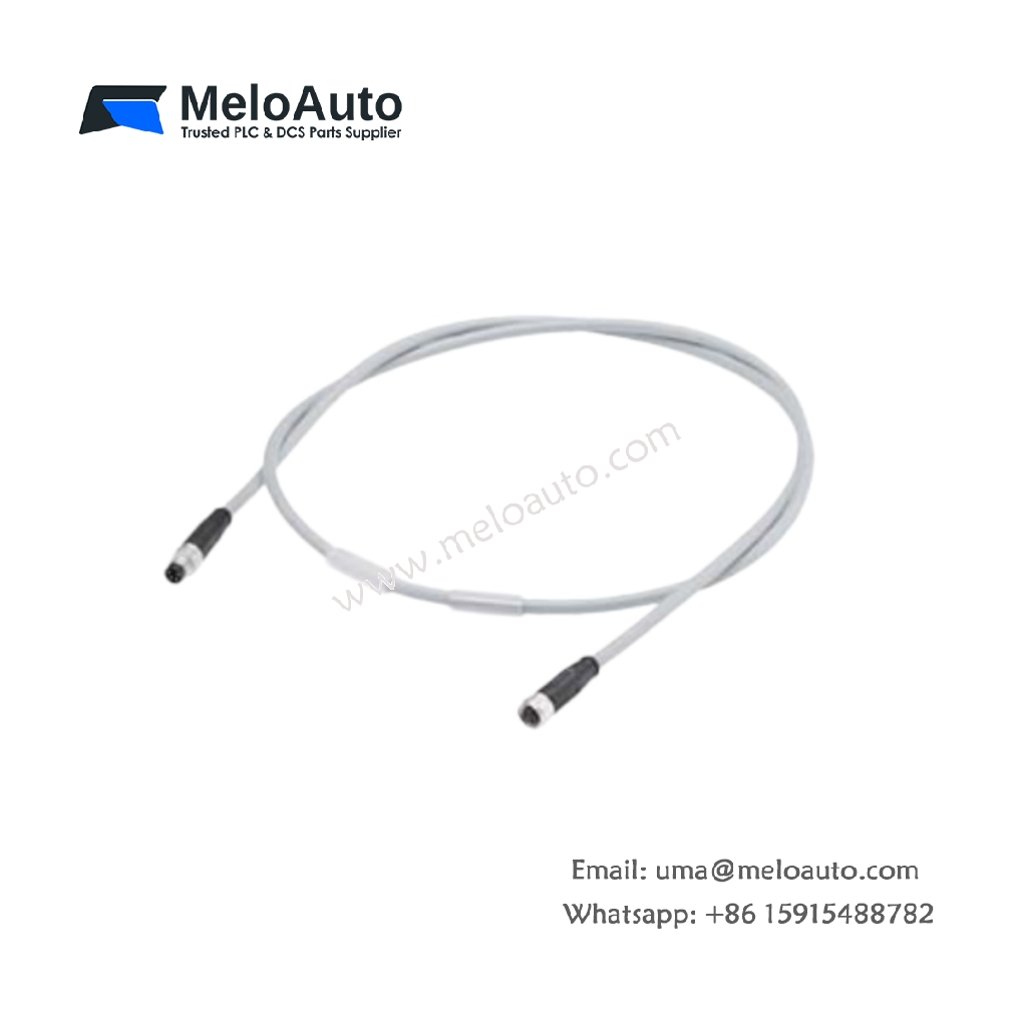

The Bently Nevada 119M6509-04 serves as a DC power supply cable for 3500 series monitoring system components. This cable measures 3,000 mm in length and 6 mm in outer diameter for flexible routing. It weighs approximately 0.25 kilograms, which enables straightforward handling during installation. The cable features a 4-pin connector on the power supply interface end. It includes a 2-pin connector on the opposite end for module power input. The unit carries 24 V DC power from the supply to the connected device.
The cable supports a continuous current rating of up to 3 A for reliable operation. It employs 18 AWG stranded copper conductors for efficient power transmission. The unit uses a braided shield to minimize electromagnetic interference effects. The insulation material withstands temperatures from -20°C to 80°C. The cable maintains a voltage drop of less than 0.5 V at full load current. It features a durable PVC jacket for mechanical and chemical protection. The unit includes strain relief boots at both connector ends for longevity. The operating temperature range spans -20°C to 80°C for diverse environments. Storage temperatures extend from -40°C to 85°C without degradation. Humidity tolerance covers 5% to 95% non-condensing conditions for reliable performance.
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 119M6509-04 |
| Category | DC Power Supply Cable |
| Length | 3,000 mm |
| Diameter | 6 mm |
| Weight | 0.25 kg |
| Connector Type 1 | 4-pin (supply side) |
| Connector Type 2 | 2-pin (module side) |
| Voltage Rating | 24 V DC |
| Current Rating | 3 A continuous |
| Conductor Size | 18 AWG stranded |
| Conductor Material | Copper |
| Shielding | Braided shield |
| Jacket Material | PVC |
| Voltage Drop | < 0.5 V at full load |
| Strain Relief | Integrated boots |
| Operating Temp | -20°C to 80°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 5–95% RH (non-condensing) |
Application and Compatibility
This power cable connects 3500 series modules directly to their DC sources. It provides reliable power transmission for monitoring system components. The Bently Nevada 119M6509-04 fits all modules with 2-pin power connectors. It works with 3500/15 power supplies and rack backplane connections. The shielded construction reduces EMI interference in noisy environments. Strain relief boots prevent connector damage during maintenance activities. The cable supports hot-swappable module replacement without power disruption.
Installation and Handling Details
The 119M6509-04 requires no special tools for connector attachment. It bends with a minimum radius of 50 mm for flexible routing. The cable withstands repeated flexing without conductor fatigue. It resists oil and chemical exposure common in industrial settings. Clear polarity marking ensures correct power connections. The cable requires no maintenance after installation.
