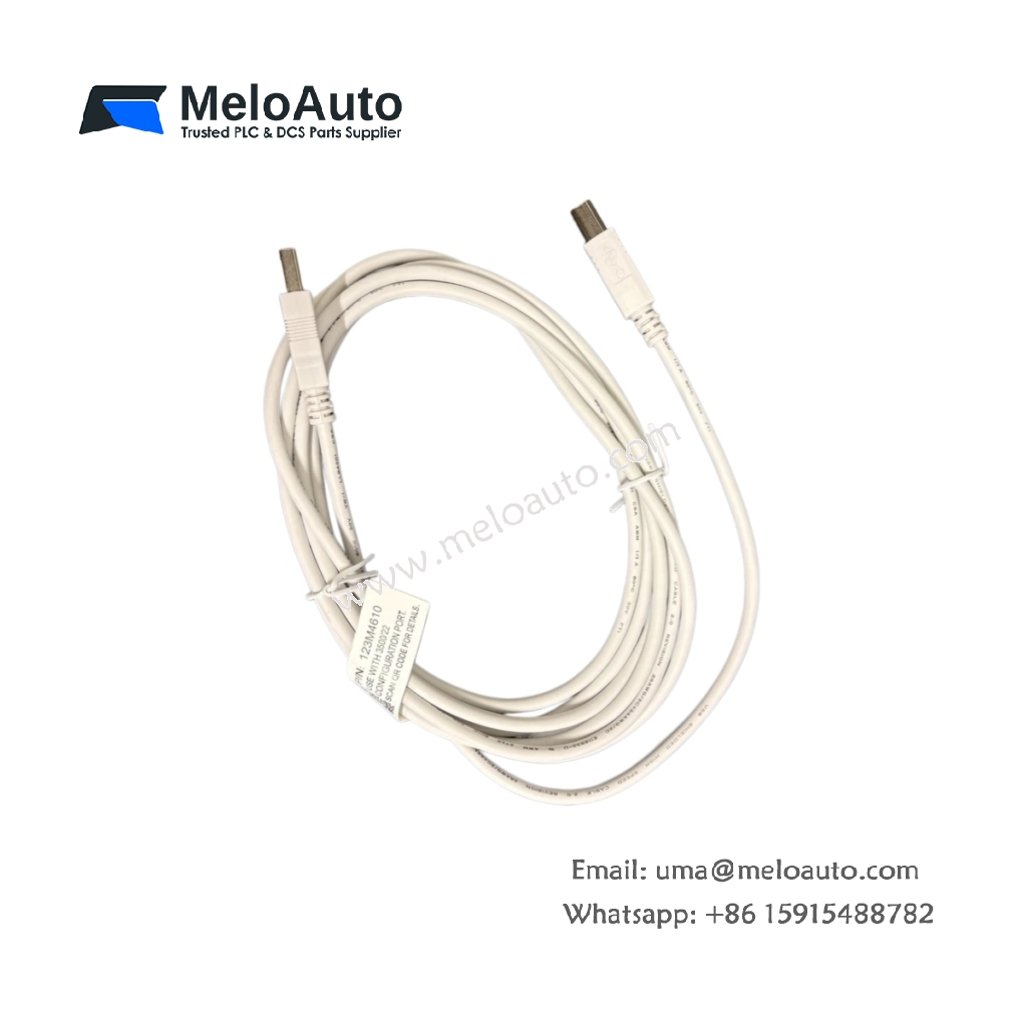

Bently Nevada 123M4610 USB Cable Assembly

Cable Overview

The Bently Nevada 123M4610 USB cable assembly connects portable data collectors to 3500 monitoring systems. This 10-foot cable provides a reliable communication link for configuration and data transfer. It features standard USB Type-A to Type-B connectors for universal compatibility. Field engineers use this cable for temporary analyzer connections to machinery protection systems.

Connector Specifications

The Bently Nevada 123M4610 uses a USB Type-A male connector on the host end. The device end features a standard USB Type-B male connector for instrument interfaces. Both connectors include molded strain relief for cable durability. The metal connector shells provide EMI shielding for signal integrity. These robust connectors withstand repeated connection cycles in field environments.

Cable Construction and Shielding

This cable uses 28 AWG stranded copper conductors for data transmission. It incorporates 24 AWG conductors for power delivery to connected devices. The assembly includes a braided copper shield with 85% coverage for noise immunity. A foil shield provides additional protection against electromagnetic interference. This dual-shielded design ensures reliable data transfer in industrial settings.

Cable Length and Physical Dimensions

The assembly measures 10 feet in total length for flexible positioning. The cable diameter reaches 4.5 millimeters for easy routing through panels. The unit weighs 0.15 kilograms for portable use. The cable maintains flexibility even at low temperatures for convenient handling. This length suits most field connection requirements.

Electrical Characteristics

The Bently Nevada 123M4610 supports USB 2.0 data rates up to 480 Mbps. It maintains 90-ohm differential impedance for signal integrity. The cable ensures 5 V DC power delivery at 500 mA for connected devices. Gold-plated contacts provide reliable connectivity and corrosion resistance. These electrical characteristics meet USB 2.0 specifications.

Environmental Durability

The cable operates within -20°C to +80°C temperature range. It withstands UV exposure for limited outdoor use. The PVC jacket resists oils and mild chemicals in industrial environments. The connector shells feature nickel plating for corrosion protection. This construction suits both factory floor and field applications.

Compatibility with Bently Nevada Systems

The Bently Nevada 123M4610 connects the 3500 rack configuration ports. It interfaces with the Trendmaster and System 1 analysis software. The cable works with portable data collectors and diagnostic tools. It also supports firmware updates for various monitoring instruments. This compatibility simplifies field service operations.

Application and Usage Scenarios

This cable establishes temporary connections for parameter adjustments. It facilitates downloading trend data from monitoring systems. Engineers use it for commissioning and startup procedures. The cable also supports on-site troubleshooting of protection systems. Its length provides convenient access for portable computers.

Packaging and Included Accessories

The cable comes in a sealed anti-static bag for ESD protection. The package includes cable ties for neat routing if needed. No additional adapters or connectors are necessary. The assembly ships ready for immediate field use. This packaging maintains cable integrity during storage.
