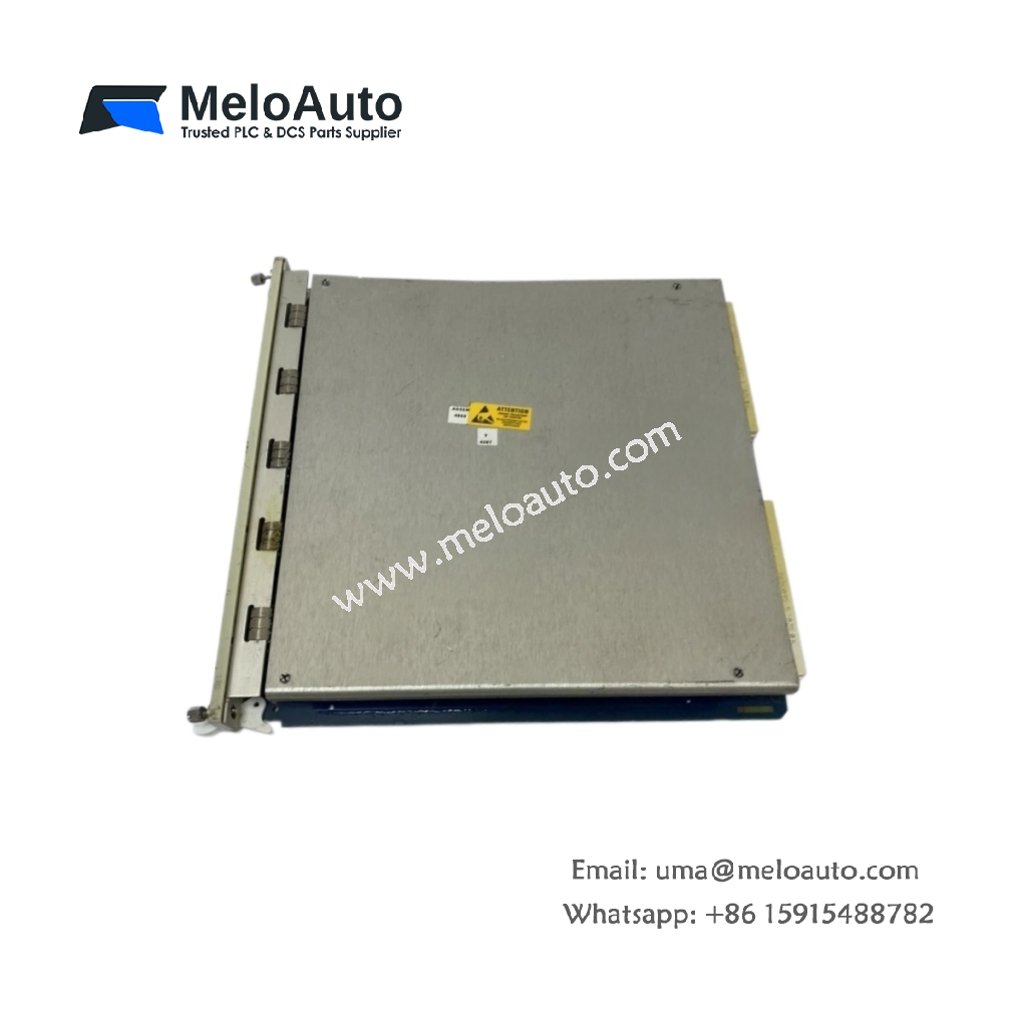

Bently Nevada 163179-01 Monitoring Module

Module Overview

The Bently Nevada 163179-01 monitoring module provides comprehensive machinery protection for critical rotating equipment. This 3500 series module combines multiple measurement functions in a single unit. It accepts inputs from proximity probes, velocity transducers, and accelerometers. Maintenance engineers use this module for complete machine condition assessment.

Input Channel Configuration

The Bently Nevada 163179-01 features 4 independent input channels for versatile measurement. Each channel accepts signals from eddy current or seismic sensors. The module provides individual signal conditioning for each channel. Users can configure channels for displacement, velocity, or acceleration measurements. This flexibility adapts to various machine types.

Measurement Parameters and Ranges

The module measures displacement from 0 to 500 micrometers peak-to-peak. It covers velocity from 0 to 100 millimeters per second peak. The acceleration range extends from 0 to 50 g for high-frequency analysis. Each channel includes programmable scaling for direct engineering units. This capability suits diverse monitoring requirements.

Output Signaling and Alarm Functions

The Bently Nevada 163179-01 provides four 4-20 mA analog outputs for system integration. It includes 8 alarm relays for alert and danger setpoints across channels. Each channel offers independent programmable trip levels. The module also supplies buffered sensor signals for diagnostic connectivity. These outputs enable effective machine protection strategies.

Signal Processing and Filtering

The module incorporates adjustable band-pass filtering for noise reduction. Low-pass and high-pass filters provide frequency band selection per channel. An integrated notch filter removes 50/60 Hz electrical interference. The module includes synchronous and asynchronous averaging methods. This processing ensures accurate and stable measurement data.

Communication and System Integration

The Bently Nevada 163179-01 interfaces with the 3500 rack backplane for system communication. It exchanges data with the controller for alarm and status management. The module supports Modbus and Ethernet communication protocols. Configuration software allows full parameter customization. This integration simplifies comprehensive machine monitoring.

Physical Dimensions and Installation

The module measures 65 millimeters in width, 150 millimeters in height, and 120 millimeters in depth. The unit weighs 0.6 kilograms for straightforward insertion. It plugs into any available 3500 rack slot. The module requires no special mounting tools. This design facilitates easy field replacement.

Power Consumption and Thermal Management

The Bently Nevada 163179-01 draws 200 milliamperes from the backplane supply. It dissipates approximately 6 watts during normal operation. The aluminum housing aids passive heat dissipation. This low power design suits high-density rack installations. The module operates reliably without additional cooling.

Diagnostic and Status Indication

Front-panel LEDs display channel status and alarm conditions at a glance. A green OK LED confirms normal module operation. Each channel has dedicated OK and alarm indicator LEDs. The module sends diagnostic data to the system controller. These indicators enable rapid fault identification.

Environmental Specifications

The module operates from -20°C to +65°C ambient temperature. It withstands 10% to 95% non-condensing humidity conditions. The unit meets ISA S71.04 environmental standards. The conformal-coated PCB provides moisture and contaminant protection. The robust design handles industrial vibration and shock.
