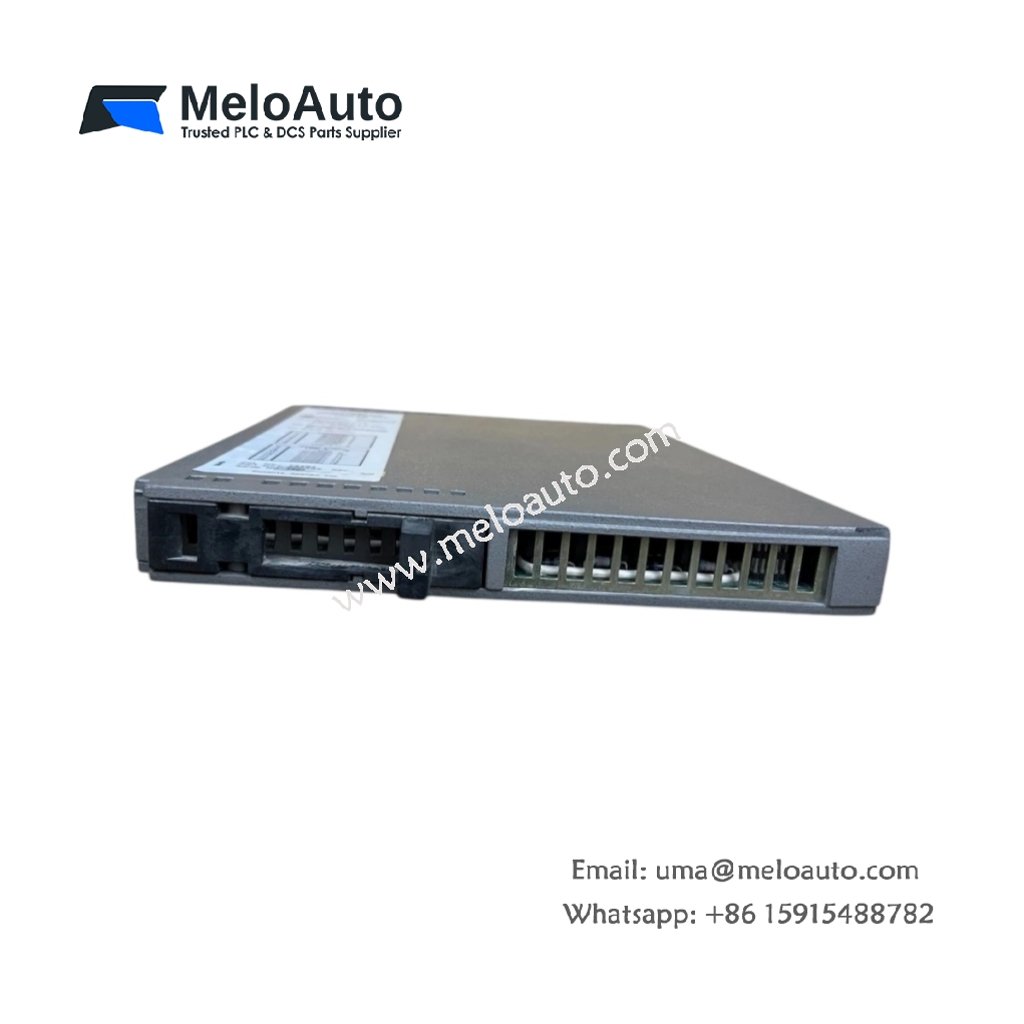

ICS Triplex T3488 Regent Digital Output Module

The ICS Triplex T3488 operates as a guarded digital output module within Regent-based safety systems. Plant engineers choose this unit for applications that demand fault-tolerant output control. Consequently, the module delivers triple modular redundancy across all output channels.

Physical Dimensions and Weight Data

Cabinet space often limits how technicians arrange large control racks. Therefore, the ICS Triplex T3488 maintains a slim profile while preserving full output capacity. It weighs approximately 1.1 kg and occupies a standard 6U rack slot. Additionally, its dimensions measure 233 mm by 160 mm by 40 mm.

Interfaces and Connectivity Features

Stable field wiring depends on dependable physical connections at every terminal. The ICS Triplex T3488 provides dual redundant backplane interfaces for critical output paths. Furthermore, front-panel LEDs let technicians verify channel status instantly. Hot-swap support allows replacements without interrupting the controlled process.

Component Count and Energy Storage

Internal architecture shapes both service life and diagnostic coverage. The ICS Triplex T3488 carries more than 350 discrete components across three separate lanes. Moreover, a lithium battery retains configuration data for up to 90 days. This storage protects non-volatile memory whenever plant power drops.

Key Technical Specifications

Parameter	Specification
Module Type	Guarded Digital Output (TMR)
Dimensions	233 × 160 × 40 mm
Weight	1.1 kg
Rack Size	6U
Backplane Interfaces	Dual redundant
Output Channels	16 guarded digital outputs
Component Count	350+ discrete parts
Energy Storage	Lithium battery, 90-day retention
Hot-Swap Support	Yes
Operating Temperature	0°C to 60°C
Output Voltage Range	18–32 VDC
Isolation Voltage	500 VDC
Diagnostic Coverage	Over 99%

Output Performance and Compliance

Fast switching directly influences overall system response times. The ICS Triplex T3488 completes typical output updates within 10 ms. Meanwhile, isolation voltage reaches 500 VDC between field wiring and internal circuits. Diagnostic coverage exceeds 99%, which strengthens safe failure detection.

Industrial sites also demand strict safety certifications before deployment. The module complies with IEC 61508 SIL 3 functional safety requirements. In addition, it meets CE and UL standards for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
