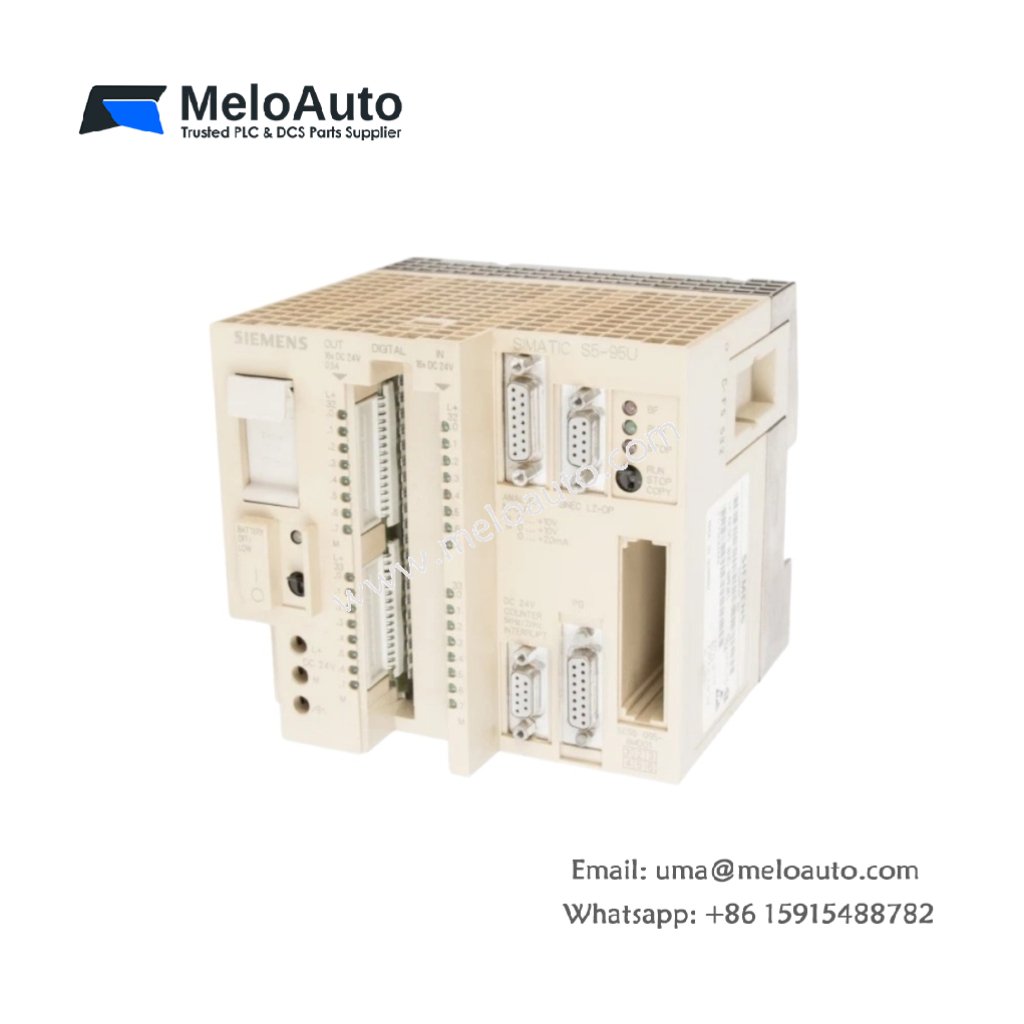

Siemens 6ES5095-8MD01 Compact Unit SIMATIC S5

Technical Overview

The 6ES5095-8MD01 compact unit integrates CPU, power supply, and I/O interfaces into a single housing for small automation tasks. This module provides a complete control solution for simple applications without the need for additional hardware. It features digital inputs and outputs for direct connection to sensors and actuators. The onboard memory stores user programs and system parameters reliably.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5095-8MD01
Product Type	Compact Unit
Series	SIMATIC S5
Digital Inputs	8 channels (DC 24V)
Digital Outputs	6 channels (DC 24V, 0.5A)
Memory	Integrated RAM/EPROM for program storage
Power Supply	Integrated, DC 24V
Communication Interface	Programming port via serial link
Approx. Dimensions (W x H x D)	160mm x 90mm x 60mm
Approx. Weight	0.6 kg

Integrated Architecture for Small Systems

The 6ES5095-8MD01 combines all essential control components in one module. This design reduces panel space requirements and simplifies system installation. Furthermore, it eliminates the need for separate power supply and backplane modules.

Built-In I/O for Direct Field Connection

The onboard digital inputs accept signals from pushbuttons, limit switches, and proximity sensors. The digital outputs directly drive relays, contactors, and small indicator lamps. Each I/O point includes status LEDs for immediate visual diagnostics.

Programming and Application Use

Users program the compact unit via the built-in serial port using STEP 5 software. The integrated memory stores the application program and retains it during power outages. Typical applications include small conveyors, packaging machines, and standalone control stations.
