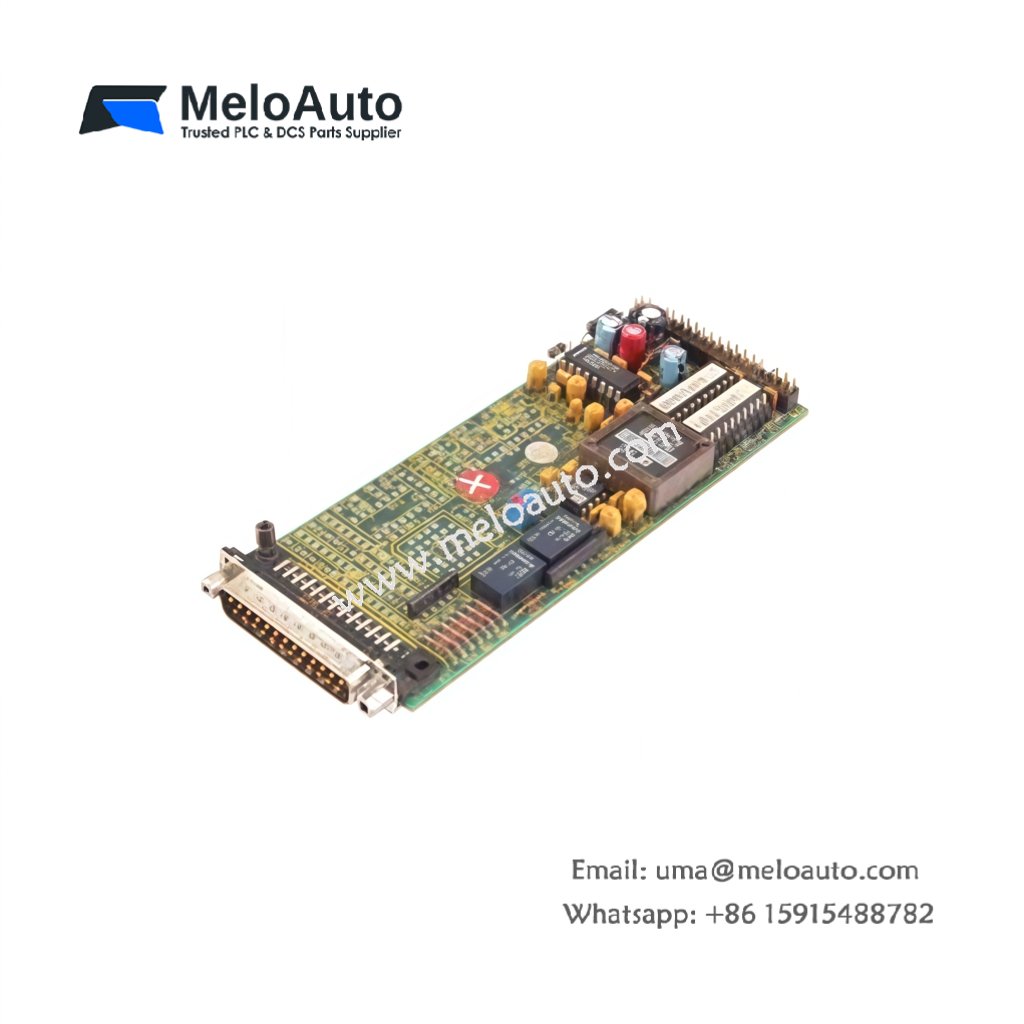

Siemens 6ES5252-5BB11 Synchro Module

Technical Specifications and Synchronization Design

This synchro control module synchronizes multiple drive axes for SIMATIC S5 PLC systems. The Siemens 6ES5252-5BB11 coordinates position and speed between two independent motors. You can install this unit into any standard S5-115U or S5-135U rack slot. Its dedicated hardware handles real-time synchronization without CPU scan delays. The module weighs approximately 0.51 kilograms. Its dimensions measure 25 cm in height, 5 cm in width, and 21 cm in depth.

Parameter	Specification
Brand	Siemens
Model	6ES5252-5BB11
Category	Synchro Control Module / Master-Slave Controller
Weight	0.51 kg
Height	25 cm
Width	5 cm (single slot)
Depth	21 cm
Number of Axes	2 axes (master and slave)
Position Resolution	16-bit (0 to 65,535 counts)
Maximum Frequency	10 kHz per encoder input
Synchronization Ratio	Programmable from 0.001 to 999.999
Input Type	5V differential (RS-422) or 24V push-pull
Output Type	±10V analog (14-bit resolution)
Analog Output Range	-10V to +10V DC
Update Rate	2 milliseconds typical
Energy Storage	None (no battery)
Component Count	Single PCB with DSP, ADCs, DACs, and optocouplers

Synchronization Modes and Operation

The module operates in position or speed synchronization modes independently. You can configure electronic gearing between the master and slave axes. The Siemens 6ES5252-5BB11 accepts incremental encoder signals from both motors. It compares actual positions against the commanded synchronization ratio continuously. The module generates a ±10V analog output for the slave drive. This output adjusts the slave speed to match the master position. A hardware latch captures position values without software delays. The module maintains synchronization even during acceleration and deceleration phases.

Feedback Processing and Error Handling

The module processes encoder feedback at rates up to 10 kHz per channel. A built-in proportional controller calculates the correction value for the slave. The Siemens 6ES5252-5BB11 includes programmable following error limits. Exceeding these limits triggers a digital output for machine stop. The module reports actual position values back to the S5 CPU. A front-panel LED indicates synchronization status and following errors. The module can operate with or without a master encoder connected.

Installation and Wiring Guidelines

You must insert this module into any standard S5 I/O rack slot. The backplane supplies 5V DC and ±15V for analog circuits. The module draws approximately 250 mA from the 5V supply rail. You must use shielded cables for encoder inputs and analog outputs. This practice prevents electrical noise from corrupting position data. The Siemens 6ES5252-5BB11 requires no external power supply for operation. You should terminate the encoder cables at the module input only. Improper termination will cause signal reflections and position errors.
