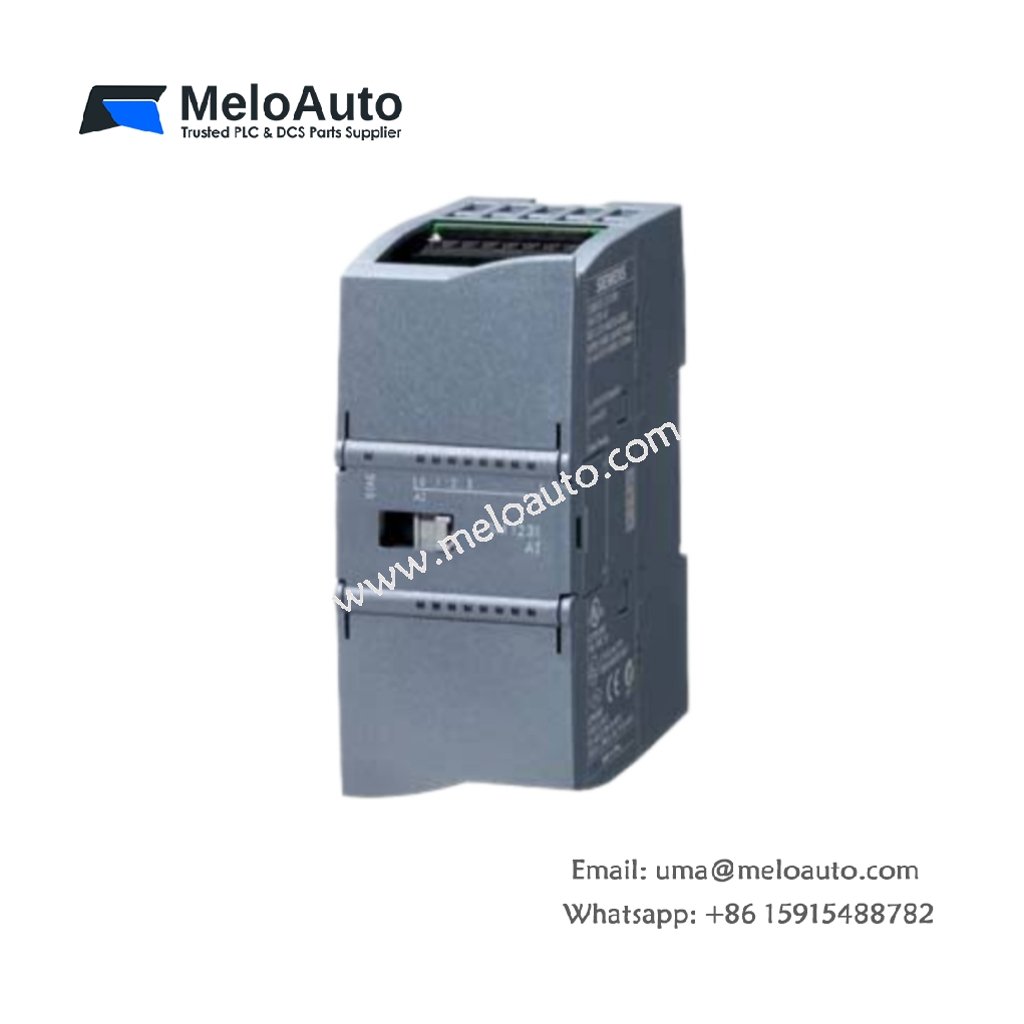

The Siemens 6ES7231-5PD30-0XB0 serves as a versatile analog input module for the S7-1200 series. This PLC module connects directly to RTD temperature sensors and resistance transmitters. It converts resistance values into digital data for the controller. You will obtain precise temperature readings for process monitoring applications. This module suits demanding industrial automation environments.
Physical Dimensions and Mounting Specifications
This analog input module features a compact housing for DIN rail mounting. Its physical dimensions are 100 mm in height, 45 mm in width, and 75 mm in depth. It weighs approximately 0.22 kilograms for straightforward installation. The operating temperature ranges from -20°C to +60°C. This wide range supports installations in various plant conditions.
Input Channel Configuration and Sensor Compatibility
The Siemens 6ES7231-5PD30-0XB0 offers four RTD input channels for temperature measurement. Each channel supports Pt100, Pt200, Pt500, Pt1000, and Ni100 sensors. The module accommodates both 2-wire and 4-wire sensor connections. It provides automatic lead wire compensation for accurate readings. The module also handles resistance signals up to 3000 ohms.
Signal Conversion and Measurement Performance
This module digitizes each RTD reading with 16-bit resolution. It samples all channels within a 400-millisecond cycle time. The Siemens 6ES7231-5PD30-0XB0 achieves a measurement accuracy of ±0.1% of full scale. It applies digital filtering to eliminate electrical noise. The module stores calibration data in onboard EEPROM memory.
Diagnostic and Status Monitoring Features
The module provides comprehensive diagnostics for each input channel. It detects sensor open-circuit and short-circuit fault conditions. The Siemens 6ES7231-5PD30-0XB0 includes LED indicators for power and module status. These indicators show operational readiness and fault states. The module also supports firmware updates through the backplane interface.
Component Architecture and Build Quality
The device contains approximately 60 discrete electronic components. Engineers select low-drift components for stable temperature measurement. The PCB features conformal coating for moisture and dust protection. This coating enhances reliability in challenging industrial environments.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 100 mm × 45 mm × 75 mm |
| Weight | Approx. 0.22 kg |
| Operating Temp | -20°C to +60°C |
| Input Channels | 4 RTD inputs |
| Supported Sensors | Pt100, Pt200, Pt500, Pt1000, Ni100 |
| Wiring Options | 2-wire or 4-wire |
| Max Resistance | 3000 ohms |
| Resolution | 16-bit |
| Accuracy | ±0.1% full scale |
| Update Time | 400 ms for all channels |
System Integration and Compatibility
The Siemens 6ES7231-5PD30-0XB0 integrates seamlessly with S7-1200 controllers. It communicates via the backplane bus for fast data exchange. The module configuration occurs through TIA Portal software. You can easily configure measurement ranges and filter settings. This module provides a cost-effective solution for temperature monitoring applications.
