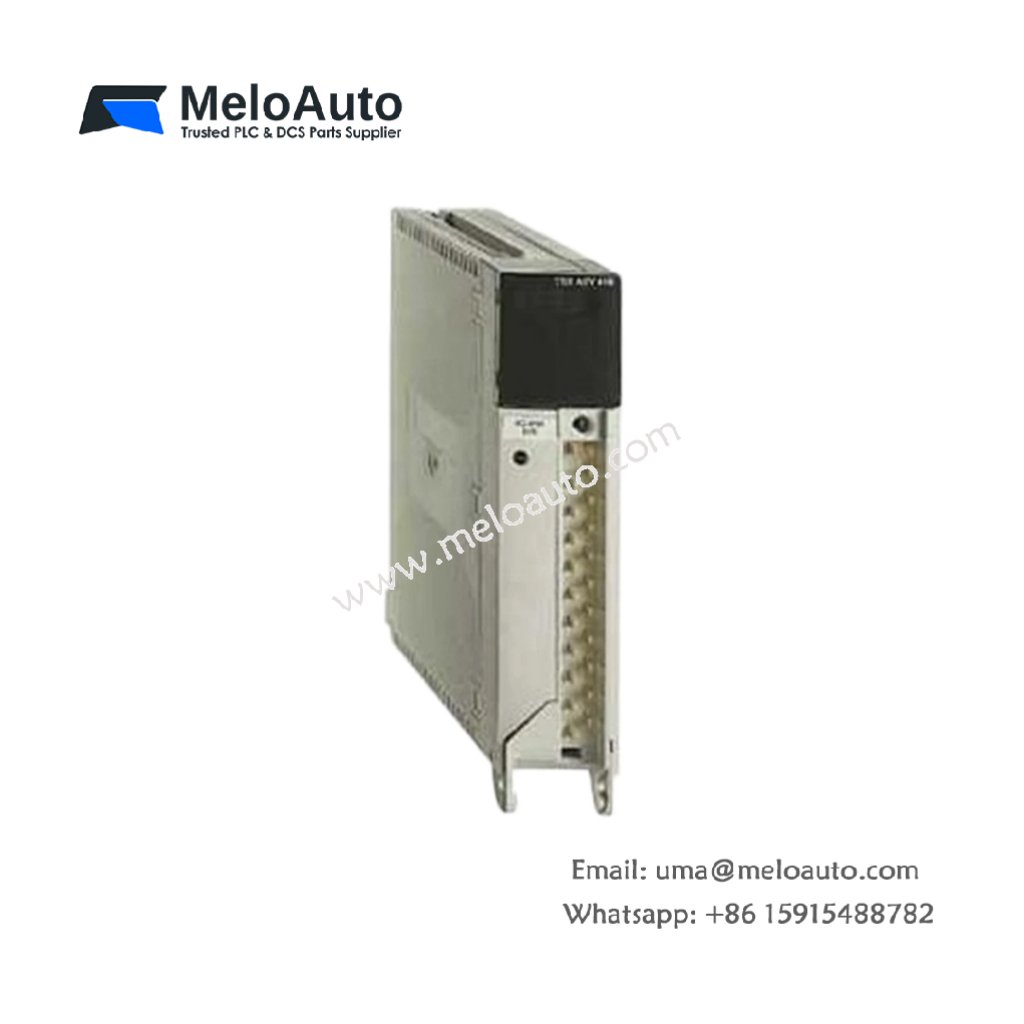

Schneider TSXAEY414 Analog Input Module

The TSXAEY414 converts analog field signals into digital values for PLC processing. This module accepts voltage or current inputs from sensors and transmitters. Its rectangular frame measures 130 millimeters in width. The module height reaches 120 millimeters exactly. Depth stays at 90 millimeters. You will find this unit weighs approximately 0.44 kilograms. Therefore, installation requires only a standard DIN rail clip. One 20-position removable terminal block handles all field wiring connections.

Physical Layout and Connectors

The terminal block accepts wires up to 16 AWG gauge. Each channel uses two terminals for signal and return paths. A green LED indicates power present on the module. Four mounting tabs secure the unit to TS35 DIN rails. You can remove the terminal block without disconnecting the module from the rack.

Technical Specifications

Parameter	Specification
Module Width	130 mm
Module Height	120 mm
Module Depth	90 mm
Unit Weight	0.44 kg
Analog Inputs	8 (differential)
Terminal Block	1 x 20-position (16 AWG)
Component Total	234 discrete parts
Input Ranges	0–10V, ±10V, 0–20mA, 4–20mA
Resolution	16 bits (0.0015% of range)
Accuracy	±0.1% of full scale
Conversion Time	2 ms per channel
Internal Energy Storage	560 µF capacitor bank
Input Impedance	>1 MΩ (voltage), 250Ω (current)
Operating Temperature	0°C to +60°C

Internal Design and Energy Storage

The TSXAEY414 contains exactly 234 discrete components onboard. A 560 microfarad capacitor bank filters noise from the internal power supply. Eight independent signal conditioning circuits handle each input channel. Each circuit includes programmable gain amplifiers for range selection. A 16-bit analog-to-digital converter samples channels sequentially. The module also provides overvoltage protection on every input pin.

Operational Performance

This analog input module accepts voltage signals from 0 to 10 volts. It also reads current signals from 4 to 20 milliamperes. Moreover, the unit performs automatic range detection for each channel. You can configure each channel independently using software settings. The module filters 50 Hz and 60 Hz noise with digital filtering. Eight green LEDs indicate active channels during normal operation. Consequently, you achieve accurate analog measurement for process control. Schneider designed this module for Modicon Premium automation platforms. Its shielded design rejects electromagnetic interference effectively.

In summary, the TSXAEY414 delivers precise analog input conversion. Use this module for temperature, pressure, or flow monitoring. It provides 16-bit resolution for high-accuracy measurements. Order this analog input module for your Schneider PLC system.
