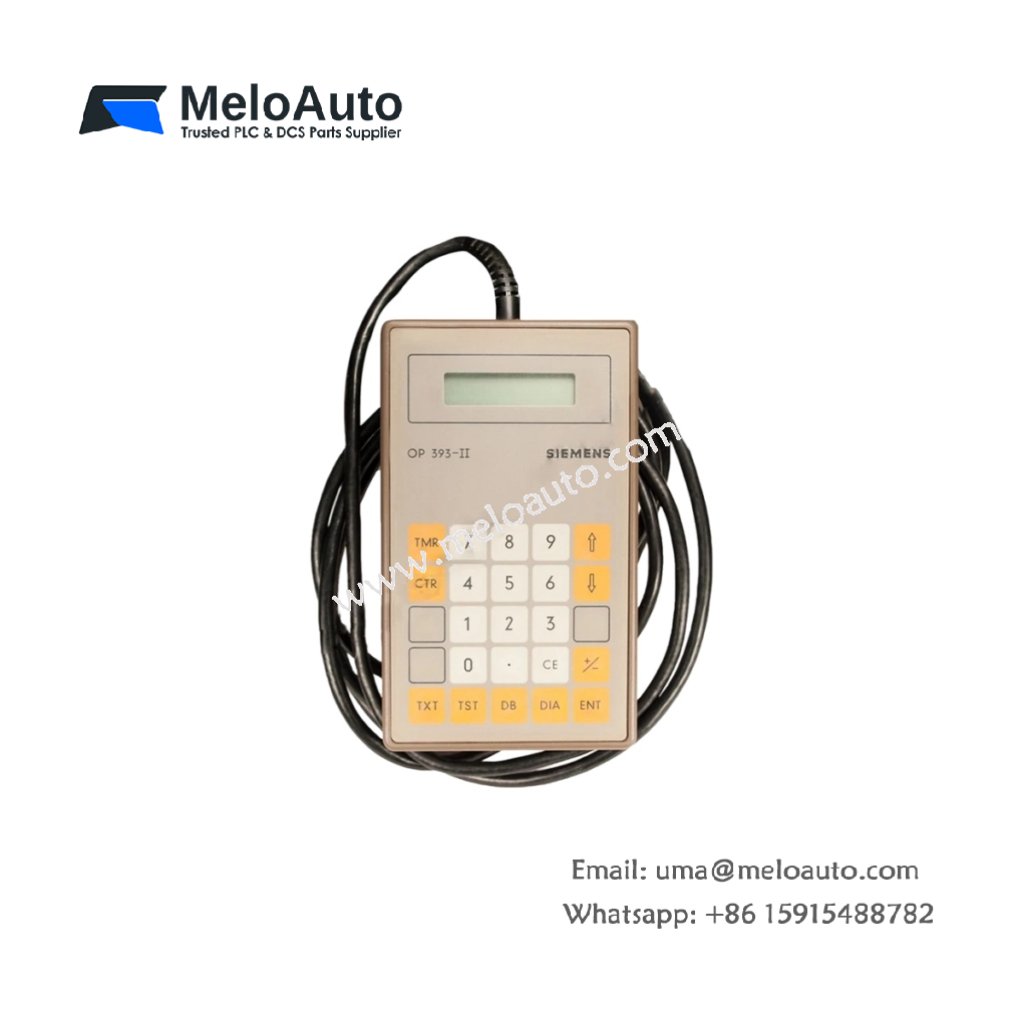

This operator panel provides local monitoring and control for S5 PLCs. The Siemens 6ES5393-0UA12 belongs to the SIMATIC S5 operator panel family. You can display process values and system status on its LCD screen. Users can acknowledge alarms and modify setpoints through the membrane keypad.
Physical Dimensions and Hardware Layout
The Siemens 6ES5393-0UA12 measures 19.2 cm in overall width. Its total height reaches 13.5 cm including mounting bezel. This operator panel weighs approximately 0.65 kg. A plastic housing with metal backplate provides durability. The panel fits standard 192 x 138 mm cutouts for flush mounting.
Display and Keypad Specifications
This panel features a 4-line backlit LCD display. The Siemens 6ES5393-0UA12 shows 20 characters per line clearly. A 16-key membrane keypad includes numeric and function keys. Four LEDs indicate power, communication, and two programmable statuses. The unit connects to S5 CPUs via a 15-pin D-sub serial cable.
| Parameter | Specification |
|---|---|
| Product Type | Operator panel (text display) |
| Product Family | SIMATIC S5 OP |
| Display Type | LCD, backlit |
| Display Lines | 4 |
| Characters per Line | 20 |
| Keypad Type | Membrane, 16 keys |
| Keypad Features | Numeric keys, function keys, cursor keys |
| Status LEDs | 4 (Power, Com, F1, F2) |
| Communication Interface | RS‑232 (15-pin D-sub) |
| Communication Protocol | AS511 (S5) |
| Baud Rate | 9600 bps fixed |
| Dimensions (W x H x D) | 192 mm x 135 mm x 62 mm |
| Cutout Size | 177 mm x 115 mm |
| Weight | 0.65 kg (1.43 lbs) |
| Supply Voltage | 24V DC ±20% |
| Current Draw | 150 mA typical |
| Power Dissipation | 3.6 W max |
| Internal Energy Storage | 100 µF capacitor for display memory |
| Number of Components | 1 PCB, 1 keypad membrane, 1 display |
| Front Protection | IP54 (when mounted) |
| Rear Protection | IP20 |
| Operating Temperature | 0°C to +50°C |
| Backlight Life | 50,000 hours typical |
Energy Storage and Display Behavior
Internal capacitors preserve screen data during brief power dips. The Siemens 6ES5393-0UA12 maintains the last displayed values for up to 5 ms. This storage prevents screen flicker during short interruptions. The unit clears the display after a power failure longer than 5 ms.
Communication and PLC Compatibility
You connect this panel to S5 CPUs via the AS511 interface. The Siemens 6ES5393-0UA12 works with S5-95U, S5-115U, and S5-135U models. The 15-pin D-sub connector requires a shielded cable up to 15 meters. The panel polls the CPU for data updates every 200 ms.
Configuration and Programming
You program the Siemens 6ES5393-0UA12 using ProTool software. Define display texts and alarm messages in the configuration file. Assign function keys to specific data blocks and flags. The panel stores all configuration data in its internal EEPROM. Therefore, you lose no settings after power cycles.
