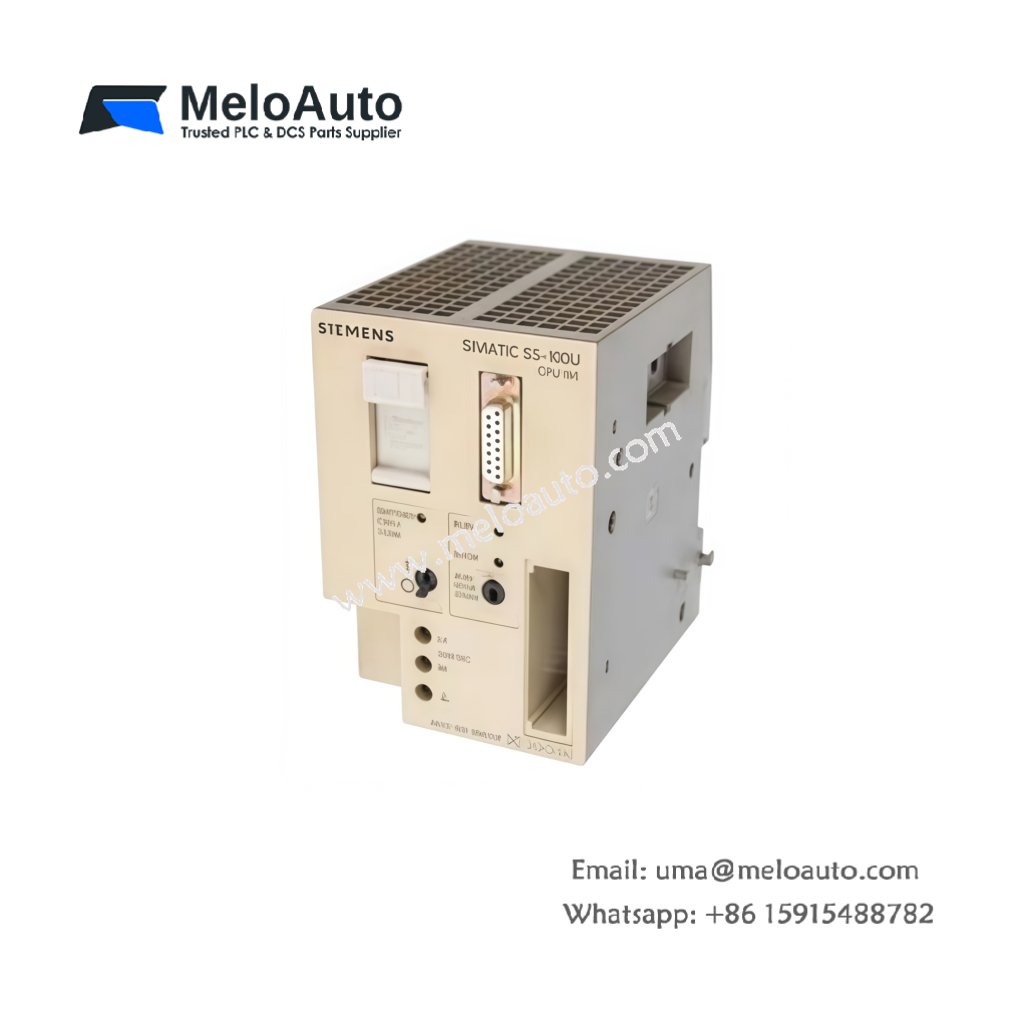

Siemens 6ES5103-8MA01 Central Processing Unit

This processor serves as the brain for small to medium S5 control systems. The Siemens 6ES5103-8MA01 executes user logic and manages all I/O communication. It measures 232 mm in width and 75 mm in height. This unit weighs approximately 0.85 kg for secure rack installation.

Technical Specifications Table

Parameter	Value
Product Model	Siemens 6ES5103-8MA01
Category	Central Processing Unit (CPU)
Compatible Rack	SIMATIC S5-103U
User Memory	1 KB RAM (battery-backed)
Memory Technology	Static RAM with lithium battery
Processing Speed	1.6 ms per 1K of bit operations
I/O Address Space	32 digital inputs + 32 digital outputs
Dimensions (W x H x D)	232 mm x 75 mm x 130 mm
Weight	0.85 kg
Front Interface	1 x 20-pin female connector
Programming Port	1 x 5-pin DIN (TTY interface)
Internal Components	1 x 8-bit microprocessor, 1 x quartz crystal
Energy Storage	1 x 3.6 V lithium battery for RAM retention

Internal Architecture and Processing Logic

This CPU contains a single 8-bit microprocessor running at 4 MHz. A quartz crystal provides the precise timing for all operations. The Siemens 6ES5103-8MA01 stores user programs in 1 KB of static RAM. A replaceable lithium battery maintains this memory during power outages. The processor executes bit operations in roughly 1.6 milliseconds per kilobyte. Consequently, this unit handles basic logic tasks with adequate speed for smaller machines.

Installation and Programming Guide

First, mount this CPU into the leftmost slot of your 103U rack. Next, connect your programming device to the 5-pin DIN port. Then, upload your STEP 5 program using an appropriate cable. The module automatically maps the first 32 inputs and outputs to the onboard connectors. You can expand I/O by adding up to two extension racks. This CPU supports all standard STEP 5 operations including timers and counters. Always replace the lithium battery once every two years for data safety.
