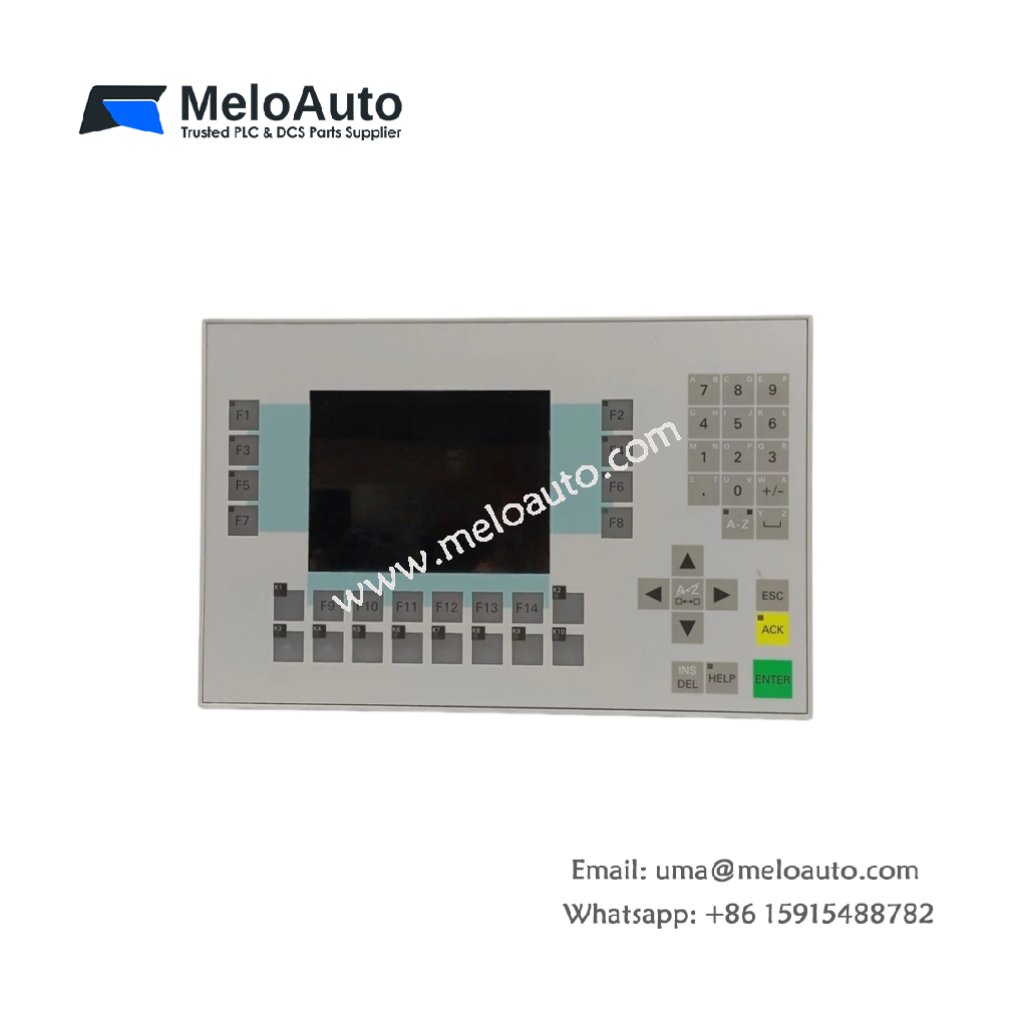

Siemens 6AV3627-1JK00-0AX0 Operator Panel

This panel provides a graphical interface for machine monitoring and control. The Siemens 6AV3627-1JK00-0AX0 displays process data and accepts operator inputs via touch or keys. It measures 310 mm in width and 215 mm in height. This unit weighs approximately 1.9 kg for panel mounting.

Technical Specifications Table

Parameter	Value
Product Model	Siemens 6AV3627-1JK00-0AX0
Category	Operator Panel / HMI
Display Type	Monochrome LCD with backlight
Display Size	5.7 inches diagonal
Display Resolution	240 x 64 pixels
Keys	30 tactile membrane keys
Communication Ports	1 x RS232, 1 x RS422/485, 1 x MPI
Dimensions (W x H x D)	310 mm x 215 mm x 65 mm
Weight	1.9 kg
Internal Components	1 x 16-bit CPU, 1 x flash memory chip
User Memory	256 KB flash for configuration data
Energy Storage	1 x 3 V lithium cell for real-time clock
Operating Voltage	24 V DC external supply

Internal Architecture and User Interface

This operator panel uses a 16-bit processor for screen rendering and logic. A 5.7-inch monochrome LCD shows 8 lines of text with 40 characters each. The Siemens 6AV3627-1JK00-0AX0 includes 30 membrane keys for navigation and data entry. Flash memory stores your HMI configuration without needing battery backup. A separate lithium cell maintains the real-time clock during power loss. This cell lasts approximately five years under normal use.

Connection and Configuration Guide

First, mount the panel into a 310 mm x 215 mm cutout on your cabinet door. Next, connect a 24 V DC power supply to the rear terminal block. Then, link the RS232 port to your PLC or PC for programming. Use ProTool or ProTool/Pro software to create your operator screens. The panel communicates with SIMATIC S5, S7, and third-party PLCs via RS422/485. You can upload configurations through the MPI port at 187.5 kbps. Replace the lithium cell when the low battery warning appears on screen.
