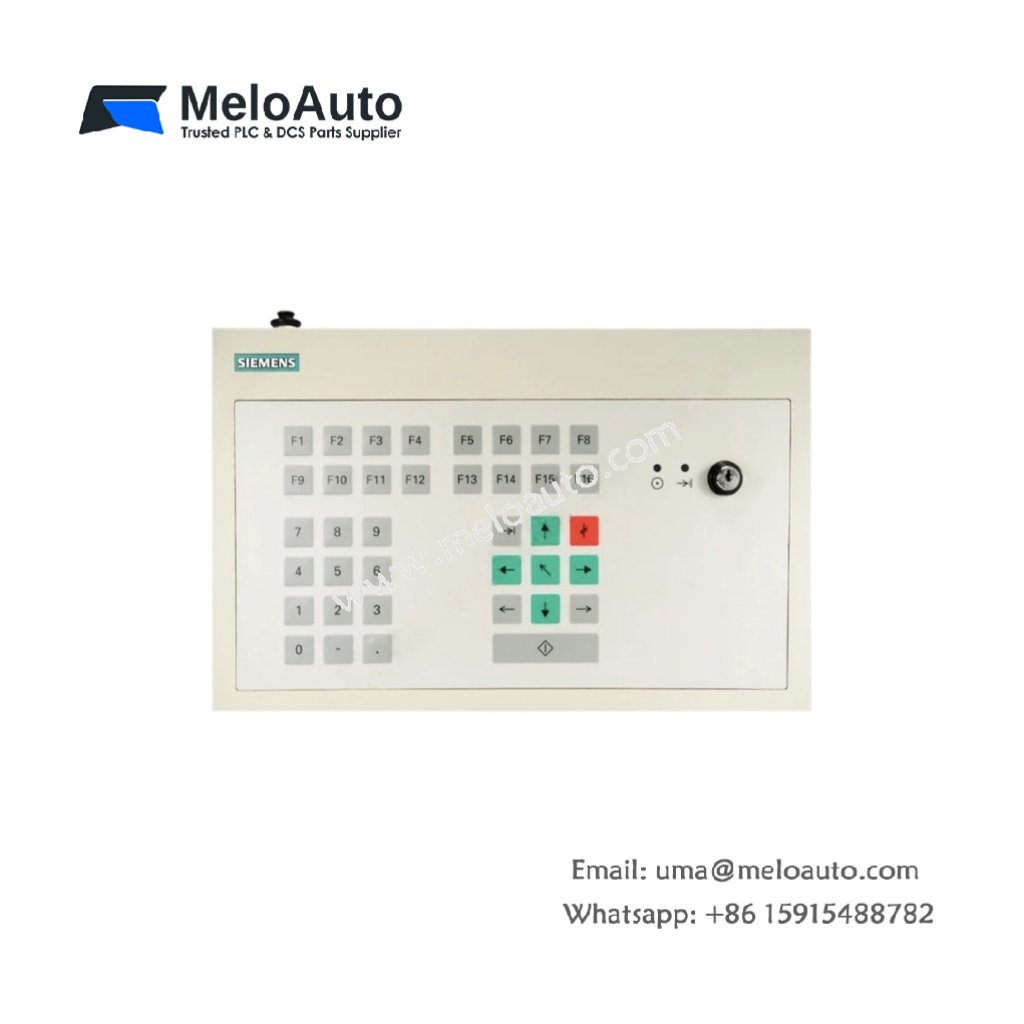

This keyboard module provides text entry for Siemens SIMATIC HMI systems. It connects directly to compatible operator panels for data input tasks. Therefore, this accessory simplifies operator interaction with industrial control systems.
Physical Dimensions and Weight Specifications
The Siemens 6AV9010-1AB00 features a membrane keypad with spill-resistant construction. Its width measures 310 mm for standard panel cutouts. The total depth reaches 35 mm including the rear connector. Consequently, technicians can mount this keyboard flush against cabinet doors.
| Parameter | Specification |
|---|---|
| Product Model | Siemens 6AV9010-1AB00 |
| Width | 310 mm |
| Height | 160 mm |
| Depth | 35 mm |
| Weight | 0.78 kg |
Interface Type and Connection Details
The Siemens 6AV9010-1AB00 uses a standard PS/2 connector for communication. This interface provides both power and data through a single cable. The cable length reaches 2 meters for flexible placement options. Hence, operators can position the keyboard away from the main panel.
Component Count and Key Configuration
This keyboard module contains one membrane layer with 64 individual keys. The assembly includes a steel backplate for structural rigidity. You will find 10 function keys for programmable shortcuts. Additionally, a separate numeric pad supports rapid value entry.
| Technical Feature | Description |
|---|---|
| Total Keys | 64 |
| Function Keys | 10 (F1 to F10) |
| Numeric Pad | Yes, 17-key layout |
| Cable Length | 2 meters |
| Connector Type | PS/2 (6-pin mini-DIN) |
Energy Storage and Power Requirements
The Siemens 6AV9010-1AB00 draws only 45 mA from the PS/2 port. It requires no external power supply for normal operation. The keyboard does not contain any internal battery or capacitor. Therefore, the device works immediately after connecting to a compatible host.
Operating Conditions and Durability Features
The keyboard withstands over 1 million keystrokes per key. Its membrane surface resists dust and light liquid spills. Users can operate this device in temperatures from 0°C to 50°C. This durability suits factory environments with regular operator interaction.
