This memory module stores project data for Siemens SIMATIC HMI panels. It provides non-volatile storage for operator interface applications. Therefore, this accessory enables quick panel replacement without reprogramming.
Physical Dimensions and Weight Specifications

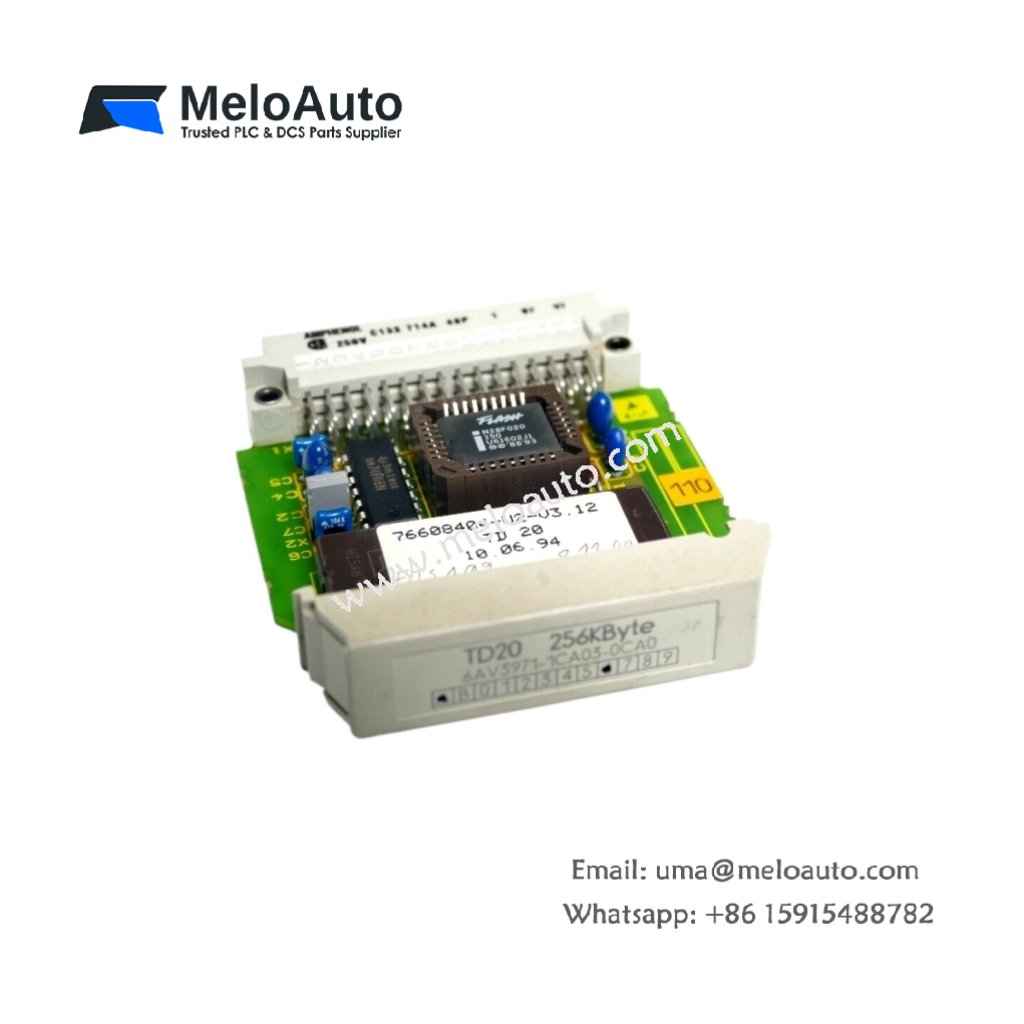

The Siemens 6AV3971-1CA03-0CA0 features a compact plastic housing for easy handling. Its dimensions match standard memory card specifications. The card weighs approximately 0.02 kg for straightforward transportation. Consequently, technicians can carry multiple cards in a standard pocket.
| Parameter | Specification |
|---|---|
| Product Model | Siemens 6AV3971-1CA03-0CA0 |
| Width | 54 mm |
| Length | 85.6 mm |
| Thickness | 3.3 mm |
| Weight | 0.02 kg |
Interface Types and Connection Layout
The Siemens 6AV3971-1CA03-0CA0 uses a 68-pin PCMCIA connector for HMI communication. This interface supports both 5V and 3.3V operation levels. The card inserts directly into compatible SIMATIC panel slots. Hence, users can install this memory card without tools or adapters.
Component Count and Memory Architecture
This memory card contains one PCB with flash memory chips. The board holds 4 MB of non-volatile storage for user data. You will also find a controller IC for interface management. An onboard write-protect switch prevents accidental data deletion or overwriting.
| Technical Feature | Description |
|---|---|
| Memory Type | Flash (non-volatile) |
| Storage Capacity | 4 MB |
| Compatible Panels | SIMATIC OP, TP, MP series |
| Write Protection | Mechanical slider switch |
| Data Retention | 10 years minimum |
Energy Storage and Power Requirements
The Siemens 6AV3971-1CA03-0CA0 draws 45 mA during read operations. It requires 70 mA when writing data to flash memory. The card contains no internal battery or supercapacitor. Therefore, it retains all data without any external power source indefinitely.
Installation and Data Transfer Performance
Users can copy projects from a PC using a standard PCMCIA adapter. The card transfers data at up to 1.5 MB per second. A status LED on the HMI indicates active read or write operations. This feature prevents card removal during critical data transfers.
