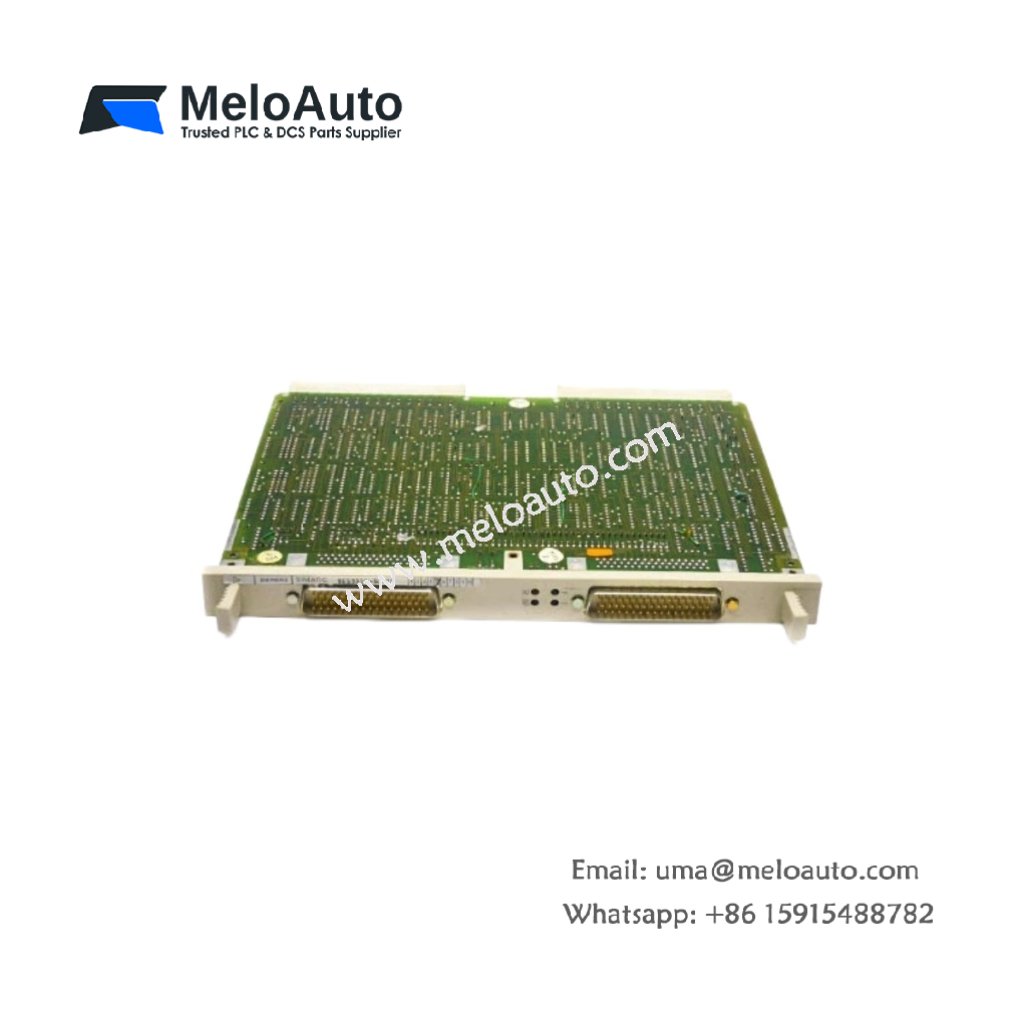

Siemens 6ES5314-3UH12 Interface Module

This interface module connects SIMATIC S5 controllers to external field devices. It converts signal levels between the backplane bus and industrial sensors. Therefore, this component simplifies wiring for distributed I/O configurations.

Physical Dimensions and Weight Specifications

The Siemens 6ES5314-3UH12 occupies one standard slot in the S5 rack. Its housing measures 233 mm in depth for backplane connectivity. The module weighs approximately 0.43 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Siemens 6ES5314-3UH12 provides a 48-pin front connector for field wiring. A second 20-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for active communication status. Hence, operators can verify data exchange at a quick glance.

Component Count and Channel Architecture

This interface module contains one main board with optocoupler isolation circuits. The board holds 8 digital input channels for 24V DC sensors. You will also find 8 digital output channels for actuator control. An onboard DC-DC converter powers the field-side electronics separately.

Energy Storage and Power Consumption

The Siemens 6ES5314-3UH12 draws 80 mA from the 5V backplane supply. It also requires 60 mA from an external 24V field supply. A small capacitor bank filters noise on the field power input. This storage smooths voltage dips from switching inductive loads.

Signal Processing and Response Time

The module scans all input channels within a 3 ms cycle time. It updates output states every 2 ms for fast response. Users can connect this unit directly to sensors without external relays. This direct connection reduces cabinet space and wiring costs significantly.
