Technical Overview

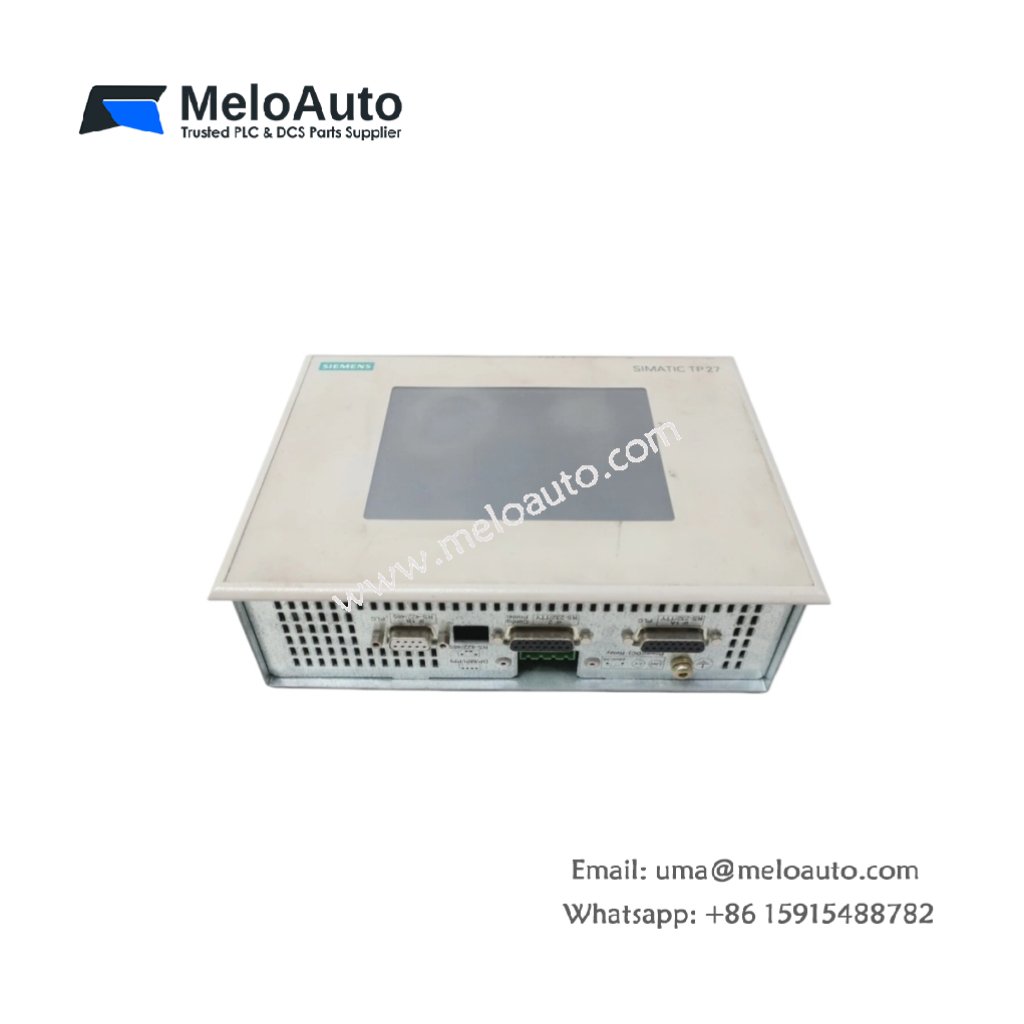

The Siemens 6AV3627-1QK00-0AX0 is a touch screen operator panel for the SIMATIC HMI series, designed for industrial automation applications. This unit provides a graphical user interface for monitoring and controlling processes. It features a color touch screen display for intuitive operator interaction. The panel includes multiple communication interfaces, including MPI, PROFIBUS DP, and RS-232. Its robust construction withstands demanding industrial environments, ensuring reliable performance in harsh conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AV3627-1QK00-0AX0 |
| Product Type | Touch Screen Display / HMI Panel |
| System Compatibility | SIMATIC S5, S7 |
| Display Type | Color TFT (Touch Screen) |
| Display Size | 5.7 inches (approx.) |
| Resolution | 320 x 240 pixels |
| Communication Interfaces | MPI, PROFIBUS DP, RS-232 |
| Power Supply | 24 VDC |
| Power Consumption | 12 W (typical) |
| Protection Rating | IP65 (front panel) |
| Dimensions | 212 x 156 x 55 mm |
| Weight | 0.8 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, CSA |
| Country of Origin | Germany |
Key Features
Color Touch Screen Display – The 5.7-inch TFT screen presents process data and graphics in vivid color. It provides an intuitive user interface for easy operation.
Multiple Communication Interfaces – MPI, PROFIBUS DP, and RS-232 ports ensure flexible connectivity to various controllers. This versatility simplifies integration into existing networks.
IP65 Protection Rating – The rugged front panel withstands dust and water spray, ensuring reliable operation in harsh industrial environments.
Graphical Visualization – The display supports custom graphics, trends, and alarms for clear process representation.
Industrial-Grade Construction – The panel operates reliably in temperatures from 0°C to 50°C and high humidity.
Low Power Consumption – The panel draws only 12 W, minimizing heat generation and energy costs.
Applications
The Siemens 6AV3627-1QK00-0AX0 excels in machine-level control, process monitoring, and data visualization. It is ideal for manufacturing, packaging, and material handling systems requiring an advanced operator interface.
