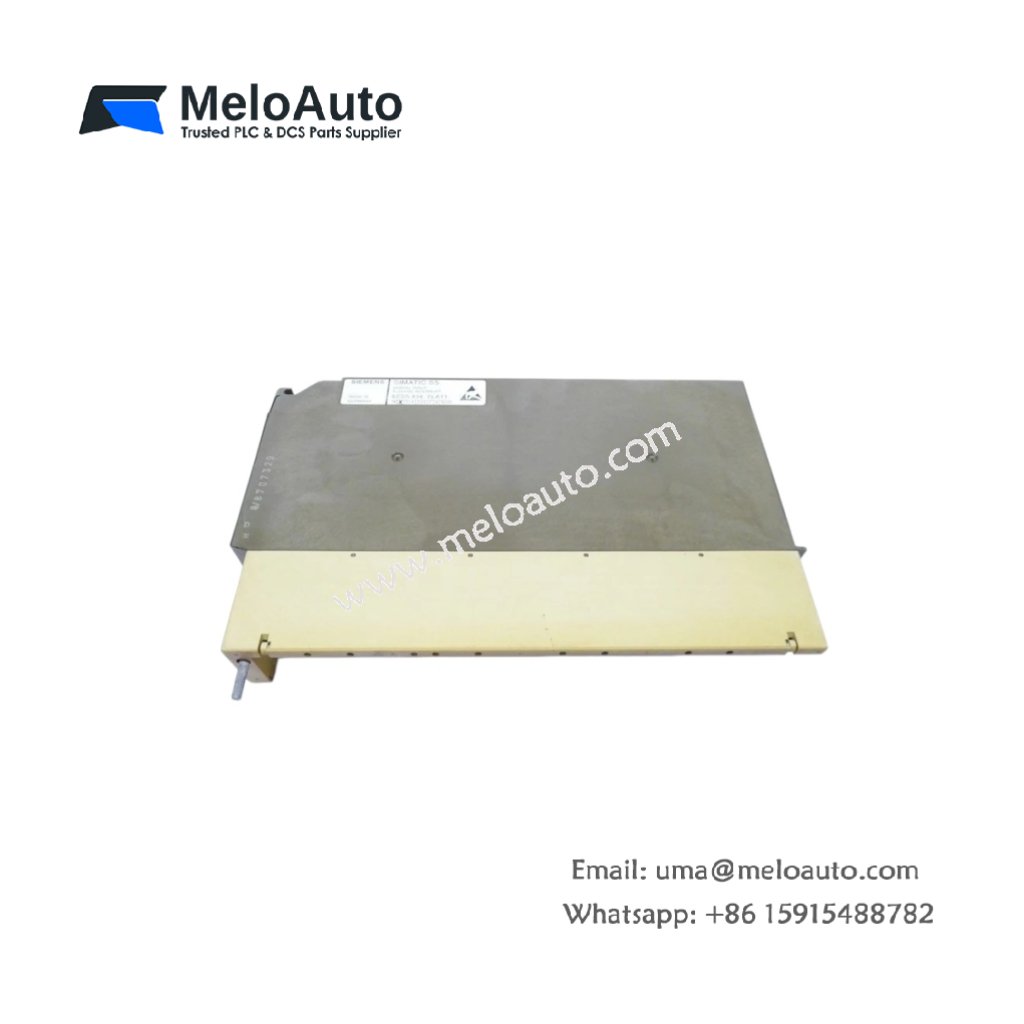

Siemens 6ES5434-7LA11 Digital Input Module

Technical Overview

The Siemens 6ES5434-7LA11 is a digital input module for the SIMATIC S5-135U programmable controller series. This unit interfaces with field devices such as limit switches, pushbuttons, and proximity sensors. It features 32 optically isolated input channels that convert 24 VDC signals into logic levels for the CPU. The module includes a removable 48-pin front connector that simplifies field wiring and replacement. Each channel has its own LED indicator, providing immediate visual confirmation of the input status.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5434-7LA11
Product Type	Digital Input Module
System Compatibility	SIMATIC S5-135U
Number of Inputs	32
Input Voltage	24 VDC
Input Current	7 mA (typical)
Isolation	Optical (channels to backplane)
ON-State Voltage	> 13 VDC
OFF-State Voltage	< 5 VDC
Input Delay	2 ms (typical)
Power Consumption	2 W (from backplane)
Terminal Type	48-pin front connector
Dimensions	233 x 37 x 268 mm
Weight	0.38 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH (non-condensing)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

High-Density 32-Channel Design – This module provides 32 inputs in a single slot, saving valuable chassis space.

Optical Isolation – The 1500V isolation protects the CPU from field-side electrical noise and voltage spikes.

Visual Status Indication – Thirty-two green LEDs provide immediate channel-level diagnostics.

Fast Response Time – The 2 ms input delay ensures reliable capture of high-speed digital events.

Wide Operating Range – The module accepts 24 VDC signals with a wide ON-voltage threshold.

Removable Front Connector – The 48-pin connector simplifies wiring and accelerates module replacement.

Applications

The Siemens 6ES5434-7LA11 excels in discrete manufacturing, process monitoring, and machine control. It is ideal for conveyor systems, packaging lines, and any automation requiring reliable digital input acquisition.
