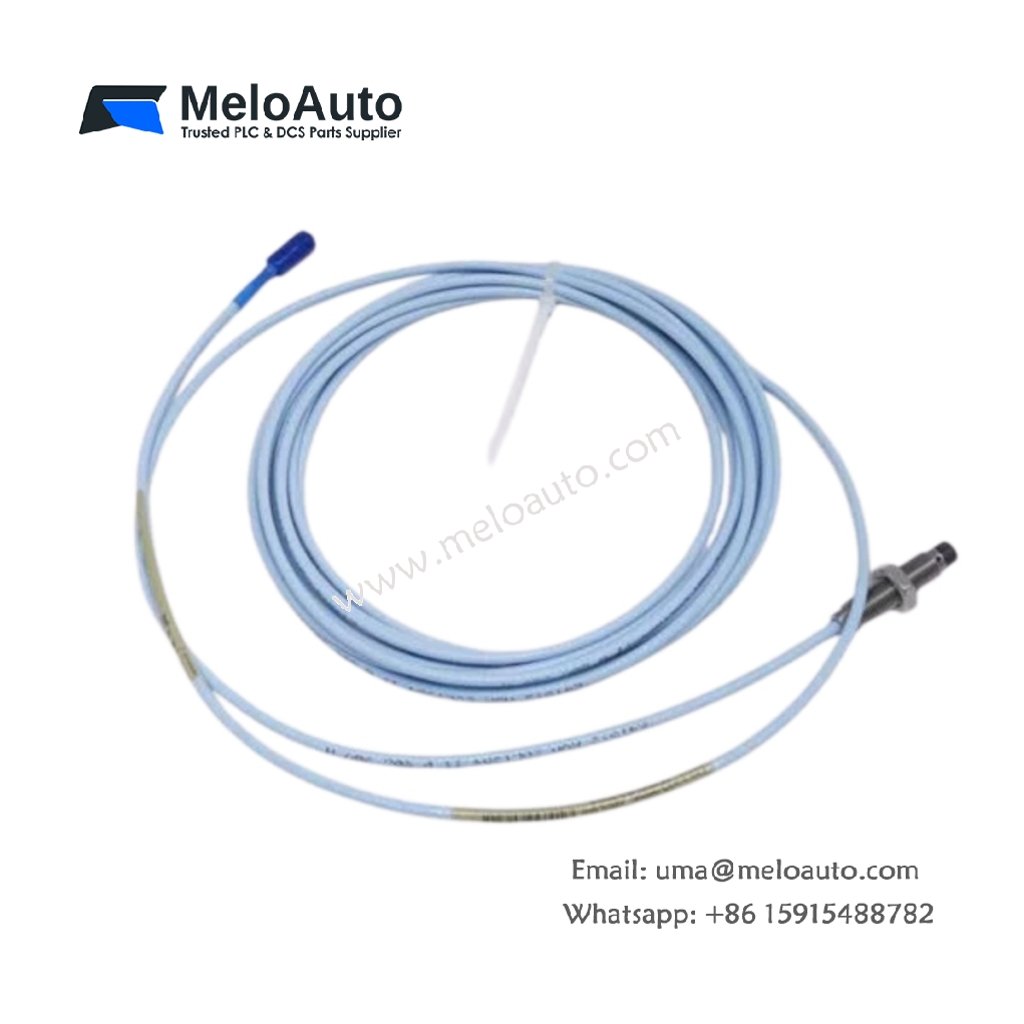

Bently Nevada 330171-00-08-20-01-05 3300 XL 5mm Proximity Probe

This 5mm proximity probe delivers accurate displacement measurements for small-scale rotating machinery monitoring. The 330171-00-08-20-01-05 provides reliable performance for turbines, compressors, pumps, and electric motors with limited mounting space. Its compact 5mm tip diameter offers excellent linearity across the measurement range. This transducer integrates seamlessly with 3300 XL monitoring systems for comprehensive machine protection.

Measurement Characteristics and Electrical Ratings

The 330171-00-08-20-01-05 operates using a standard -24V DC negative power supply system. This transducer provides a linear measurement range from 0.25mm to 2.0mm with high sensitivity. The probe tip incorporates a hermetically sealed coil that resists moisture and contamination ingress. Moreover, the integrated oscillator generates a stable RF carrier frequency for consistent signal transmission.

Physical Dimensions and Configuration Breakdown

The 330171-00-08-20-01-05 features a compact design with a total length of 80mm. The part number breakdown reveals specific configuration details for this particular probe. The “00” indicates the probe tip uses standard material without additional coating options. The “08” represents the overall length of 80mm from the probe tip to connector. The “20” specifies the cable length of 2.0 meters for flexible installation routing. The “01” indicates the unthreaded length of 1mm for proper insertion depth. Finally, the “05” designates the connector type as a standard 5-pin male plug.

Installation and Mounting Requirements

The 330171-00-08-20-01-05 requires a 5mm threaded hole for proper casing installation. You must set the initial gap correctly to achieve optimal linear performance. The smaller tip diameter suits applications with limited mounting space. Furthermore, cable routing should avoid sharp bends that can damage internal conductors.

System Integration and Diagnostic Features

The connects directly to 3300 XL proximitors and associated monitoring systems. You can pair this probe with extension cables for remote installation up to 300 meters. The system provides continuous vibration and thrust position monitoring for critical assets. Therefore, this proximity probe delivers essential protection for smaller rotating equipment in demanding applications.
