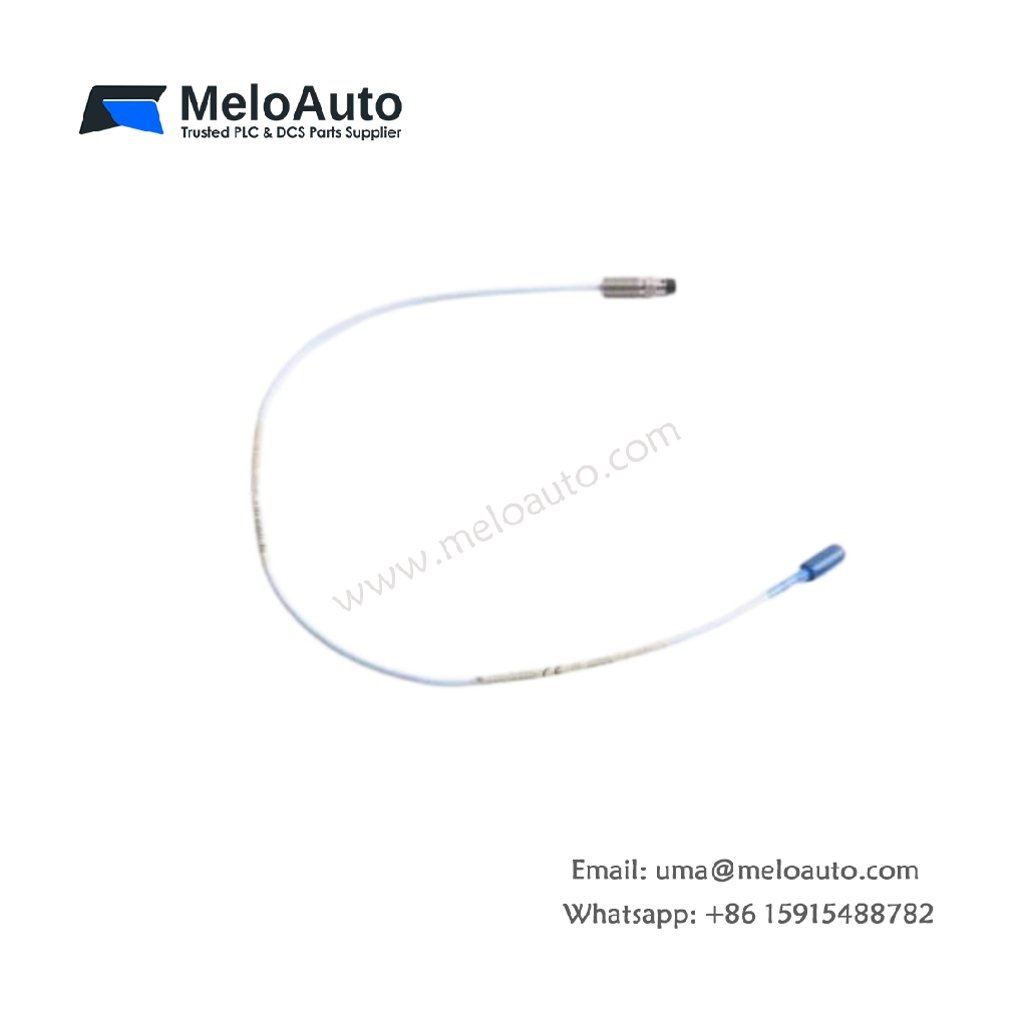

Bently Nevada 330106-05-30-20-02-00 3300 XL 8mm Proximity Probe with Side Exit

This proximity probe delivers precise displacement and vibration measurements for critical rotating machinery. The 330106-05-30-20-02-00 features a side-exit cable configuration, which simplifies installation in confined spaces. Its 8mm tip diameter provides reliable performance across a wide measurement range. This transducer integrates seamlessly with 3300 XL monitoring systems for comprehensive machine protection.

Measurement Characteristics and Electrical Ratings

The 330106-05-30-20-02-00 operates on a standard -24V DC negative power supply system. This transducer provides a linear measurement range from 0.25mm to 2.5mm with exceptional accuracy. The probe tip uses a hermetically sealed coil assembly that resists moisture and contamination. Furthermore, the integrated oscillator generates a stable RF carrier signal for consistent transmission.

Physical Dimensions and Configuration Breakdown

The 330106-05-30-20-02-00 features a 5mm thread size with side-exit cable for flexible routing. The part number breakdown reveals specific configuration details for this probe variant. The “05” indicates the probe tip uses standard material without additional plating options. The “30” represents the overall length of 30mm from the probe tip. The “20” specifies the cable length of 2.0 meters for convenient installation. The “02” indicates the unthreaded length of 2mm for proper insertion depth. Finally, the “00” designates the connector type as a standard 5-pin male plug with protective cap.

Installation and Mounting Considerations

The 330106-05-30-20-02-00 requires a 5mm threaded hole in the machine casing for mounting. The side-exit cable design allows for easier routing when the probe mounting area has limited access. You must set the initial gap correctly to achieve optimal linear performance and accuracy. Furthermore, cable routing should avoid sharp bends to prevent internal conductor damage.

System Integration and Diagnostic Features

The 330106-05-30-20-02-00 connects directly to 3300 XL proximitors and associated monitoring systems. You can pair this probe with extension cables for remote installation up to 300 meters. The system provides continuous vibration and thrust position monitoring for critical assets. Therefore, this proximity probe offers essential protection for rotating equipment in demanding applications.
