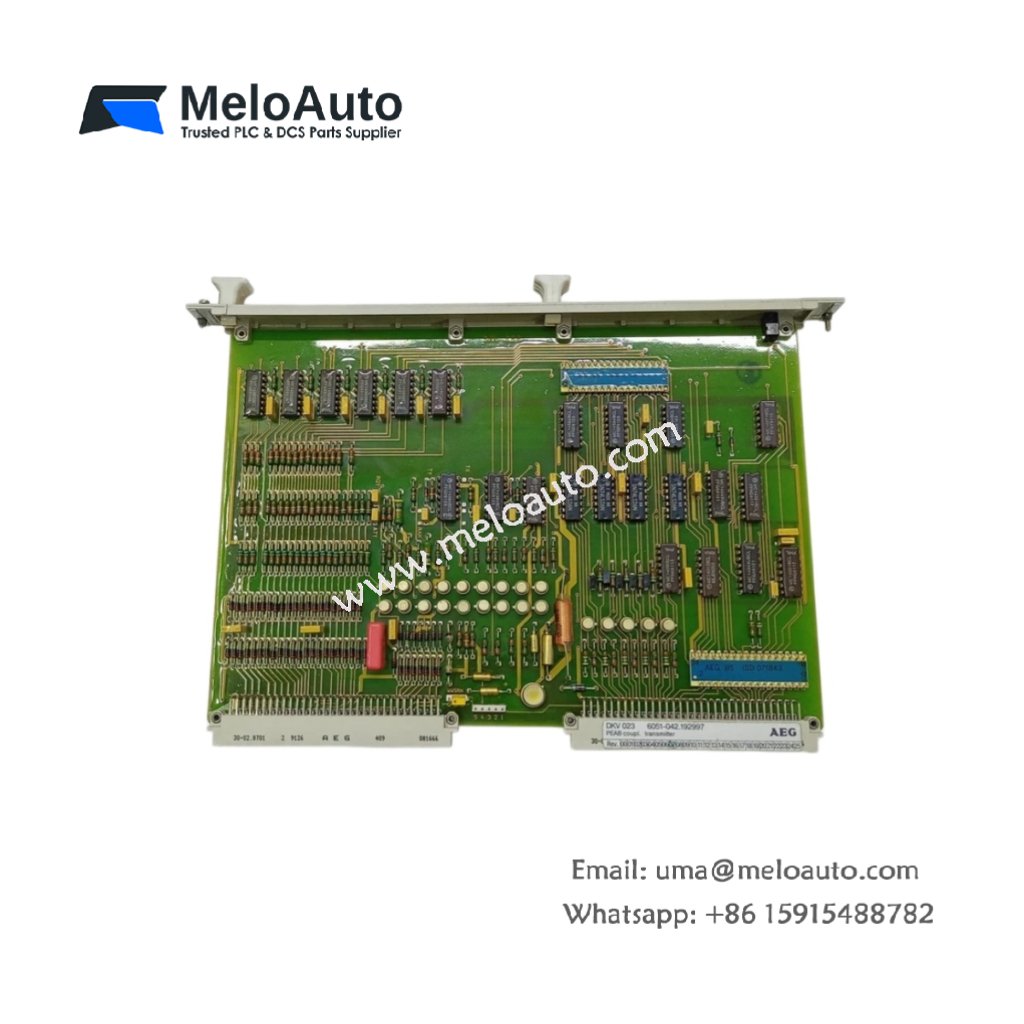

Schneider DKV 023 Industrial Control Unit

Product Overview

The DKV 023 manages machine sequencing and safety interlock functions. You will find this unit in packaging lines and conveyor systems. It executes simple logic without a full PLC programming environment. Additionally, this unit includes adjustable timing relays for delay operations. Therefore, you can replace multiple discrete timers with one device.

Technical Specifications

The table below lists all key parameters for this industrial control unit.

Parameter	Value / Description
Full Model	DKV 023
Category	Industrial Control Unit
Dimensions (W x H x D)	11.0 cm x 9.5 cm x 6.0 cm (4.33 in x 3.74 in x 2.36 in)
Weight	0.48 kg (1.06 lb)
Digital Inputs	8 channels, 24V DC (sink type)
Digital Outputs	8 relay channels, 3A each at 250V AC
Control Interface	One 18-pin removable terminal block
Onboard Components	16 resistors, 8 relays, 4 timing capacitors, 2 diodes
Energy Storage	100 µF total (small filter caps only)
Operating Voltage	24V DC ±20%
Current Draw	0.05 A (logic) + up to 3A per output
Timing Range	0.1 seconds to 30 minutes (adjustable)
Timing Accuracy	±5% of set value
Status LEDs	One power LED, 8 input LEDs, 8 output LEDs
Mounting	DIN rail (35 mm) or panel screws

The DKV 023 stores very little energy (only 100 µF total). Therefore, you only need a 2-second discharge wait before handling. Use the 18-pin terminal block for all field device connections. Meanwhile, the onboard trim pots set each timing delay independently.

Installation and Compatibility

You can mount this unit on 35 mm DIN rail or a panel. Clip the DKV 023 onto the rail or use two M4 screws. Then connect the 24V supply to terminals 1 and 2. Always verify the output load does not exceed 3A per channel.

This unit replaces multiple electromechanical timing relays. It also eliminates the need for separate interposing relays. The DKV 023 works with any 24V DC sensor or switch.

Environmental and Safety Data

The DKV 023 operates from -10°C to +50°C. It withstands 2g vibration per IEC 60068-2-6. The circuit board has a light conformal coating. Consequently, you can use this unit in mildly dusty environments. Do not exceed 30 minutes of continuous timing for best accuracy.
