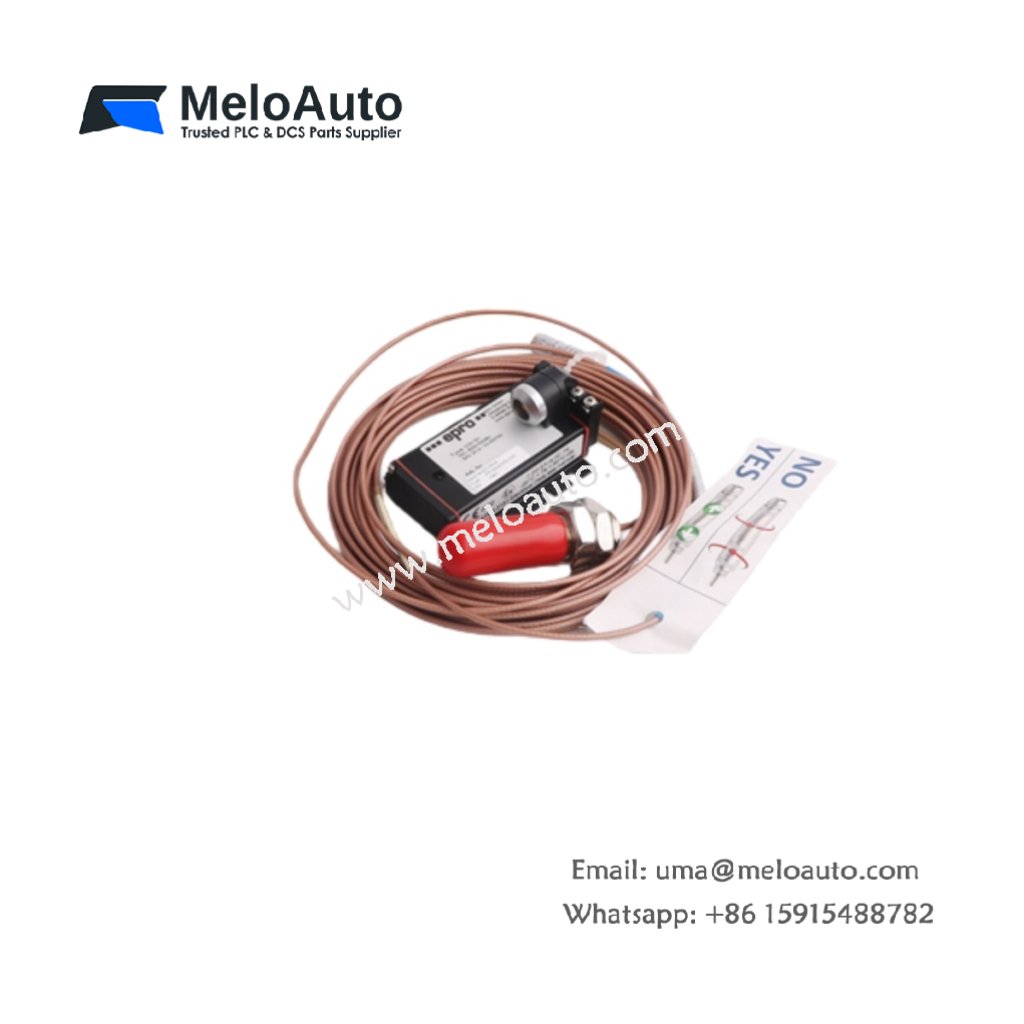

EPRO PR6424/000-040 CON021 Signal Converter

The EPRO PR6424/000-040 CON021 is an advanced Eddy Current Signal Converter designed to provide precise and reliable signal processing for industrial applications. This converter transforms signals from eddy current sensors, enabling easy analysis and ensuring high accuracy in measurement systems. It is ideal for use in critical monitoring and control systems across a variety of industrial environments.

Key Features

Signal Conversion: Effectively converts signals from eddy current sensors for accurate data processing.
Dynamic Performance: Features a wide frequency range from 0 to 20,000 Hz and a rise time of less than 15 μs, providing fast response times for precise control.
High Compatibility: Designed for use with multiple sensor models, including PR6422, PR6423, PR6424, PR6425, and PR6426.
Extended Range Use: The CON021/91x-xxx model extends the device’s capabilities, meeting the most demanding industrial requirements.
Environmental Protection: The CON021 has an IP20 protection class, making it suitable for industrial environments with limited exposure to dust and water.

Technical Specifications

Specification	Details
Frequency Range	0 to 20,000 Hz (-3dB)
Rise Time	< 15 μs
Operating Temperature Range	-30°C to +100°C (-22°F to 212°F)
Shock and Vibration Resistance	5g @ 60 Hz @ 25°C (77°F)
Power Supply Voltage	-23V to -32V (Output range -4V to -20V)
Alternative Power Supply Voltage	-21V to -32V (Output range -2V to -18V)
Housing Material	LMgSi 0.5 F22
Mounting	4 Screws M5x20 (Included in delivery)
Weight	Approx. 120 grams (4.24 oz)
Connections	Self-locking Lemo plug (Transducer), screw terminal (Power/Output)

Applications

The EPRO PR6424/000-040 CON021 is used in industrial environments for:

Signal Conversion: Processing data from eddy current sensors in systems requiring high accuracy.
Monitoring and Control: In applications such as turbomachinery and motor performance monitoring.
Condition Monitoring Systems: Ensuring reliable operation of critical machinery and equipment.

The EPRO PR6423/000-040 is an 8mm Eddy Current Sensor optimized for turbomachinery and critical displacement measurement applications. It measures both radial and axial shaft displacement, position, eccentricity, and speed without direct contact, providing high precision and reliability in demanding environments.

Key Features

Non-contact Measurement: Measures displacement and speed of rotating shafts without physical contact, reducing wear and tear.
High Sensitivity: With a sensitivity of 10 mV/μm, the PR6423/000-040 delivers precise readings even in high-speed applications.
Wide Frequency Range: Operates across a frequency range of 10 Hz to 10 kHz, making it suitable for a wide range of monitoring systems.
Temperature Resilience: The sensor operates within a wide temperature range of -40°C to +125°C (-40°F to +257°F), ensuring reliable performance in harsh environments.

Technical Specifications

Specification	Details
Measurement Range	0 to 4 mm
Sensitivity	10 mV/μm
Frequency Range	10 Hz to 10 kHz
Preamplifier Gain	100
Preamplifier Output Voltage	100 mV
Input Impedance	1 MΩ
Output Impedance	50 Ω
Dimensions	50 mm x 50 mm x 10 mm
Weight	100 grams (3.53 oz)
Cable Length	8 meters (non-armored)
Cable Connector	Lemo
Operating Temperature Range	-40°C to +125°C (-40°F to +257°F)

Applications

The EPRO PR6423/000-040 is ideal for:

Turbomachinery: For measuring displacement, eccentricity, and alignment in high-speed rotating shafts.
Vibration Monitoring: Ensuring the smooth operation of critical machines and motors in industrial plants.
Condition Monitoring: Widely used in power generation, pumps, compressors, and other industrial machinery.
