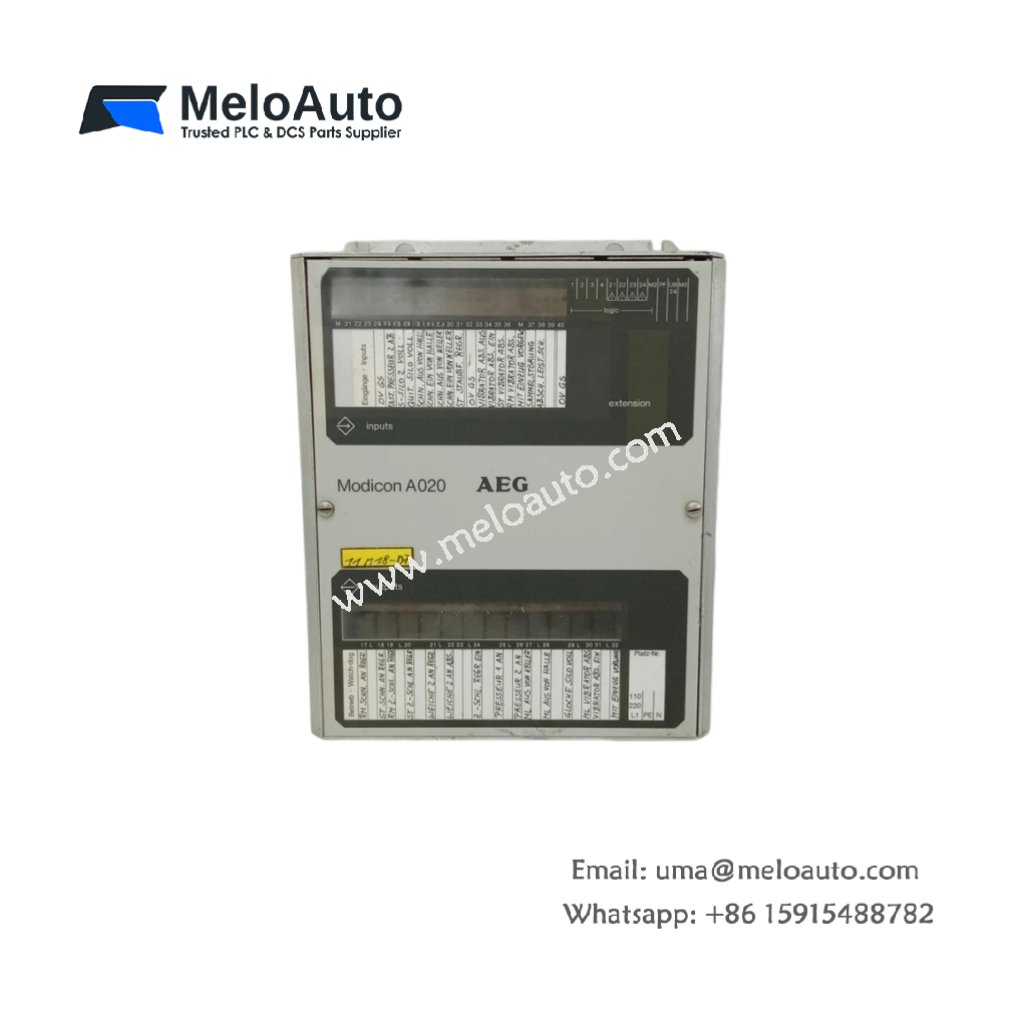

Schneider A020/ERW/220V Programmable Controller

The Schneider A020/ERW/220V serves as a compact programmable controller for simple automation tasks. This unit combines a processor, power supply, and limited I/O in one housing. Therefore, it provides a cost-effective solution for standalone machine control.

Product Overview

We designed this controller for applications requiring basic logic and timing functions. Its 220V AC input allows direct connection to standard industrial power. Moreover, this unit includes relay outputs for direct control of small actuators.

Technical Specifications

Parameter	Specification
Dimensions	11.0 cm (height) x 7.5 cm (width) x 9.0 cm (depth)
Weight	0.42 kg (approximately 0.93 lb)
Interface Type	Screw terminal block for all field connections
Component Count	118 components including CPU and power supply
Energy Storage	2 aluminum capacitors (470 µF, 400V) plus 4 ceramic
Power Input	220V AC ±10%, 50/60 Hz, 0.5A max
Digital Inputs	8 channels, 220V AC compatible
Digital Outputs	4 relay outputs, Form A contacts
Output Rating	2A at 250V AC, 2A at 30V DC
Program Memory	4 kB EEPROM (non-volatile)
Instruction Set	Ladder logic with 25 basic commands
Execution Speed	10 µs per logical instruction
Operating Temp	0°C to +55°C ambient

Integrated Architecture

The Schneider A020/ERW/220V integrates all controller functions into a single unit. Its two aluminum capacitors filter the 220V AC input for internal DC power. Additionally, four ceramic capacitors decouple noise from the processor circuits. You get reliable operation without external power supply modules.

Energy Storage Configuration

Two bulk capacitors provide 10 ms of hold-up during AC line dips. This prevents processor resets from brief voltage sags. Four ceramic capacitors filter high-frequency noise on the internal 5V rail. Clean power ensures stable operation of the CPU and memory circuits. The EEPROM retains the user program without any battery backup.

Input Specifications

Eight digital inputs accept 220V AC signals directly from limit switches. Each input draws 5 mA at nominal voltage for low power consumption. The input circuits include LED indicators for visual status confirmation. An internal optocoupler provides 2500V isolation from the logic circuits. Input response time measures 20 ms standard with no adjustment.

Output Specifications

Four relay outputs switch both AC and DC loads up to 2A each. The relays use Form A (normally open) contacts for simple control. Each output includes a status LED that illuminates when energized. The relay coils run on 24V DC derived from the internal power supply. Total simultaneous current for all four relays should not exceed 4A.

Installation Steps

Mount this controller on DIN rail using the integrated spring clip. Connect 220V AC power to terminals L (live) and N (neutral). Connect a protective earth wire to the PE terminal for safety. Then connect input devices to terminals 1 through 8 as shown on the label. Connect output loads to terminals 9 through 12 with appropriate external fusing.

Programming Method

Program this controller using Schneider’s simple ladder software via a PC connection. The instruction set includes contacts, coils, timers, and counters. Timer ranges extend from 0.1 seconds to 999 minutes. Counters can count up to 9999 events from input pulses. The 4 kB EEPROM stores up to 200 ladder rungs of typical logic.

Status Indication

A green power LED illuminates when 220V AC is present. A red RUN LED flashes when the processor executes the user program. A yellow STOP LED indicates when the controller is in programming mode. Individual green LEDs show the state of each input and output. The LEDs help troubleshoot field wiring without a programming terminal.

Application Scope

This programmable controller suits small conveyor systems and packaging machines. Many OEMs choose the Schneider A020/ERW/220V for dedicated equipment control. Its compact size fits inside machine enclosures with limited space.
