Siemens 6ES5245-1AB12 | SIMATIC S5 Valve Control Module

Technical Overview of the Valve Controller

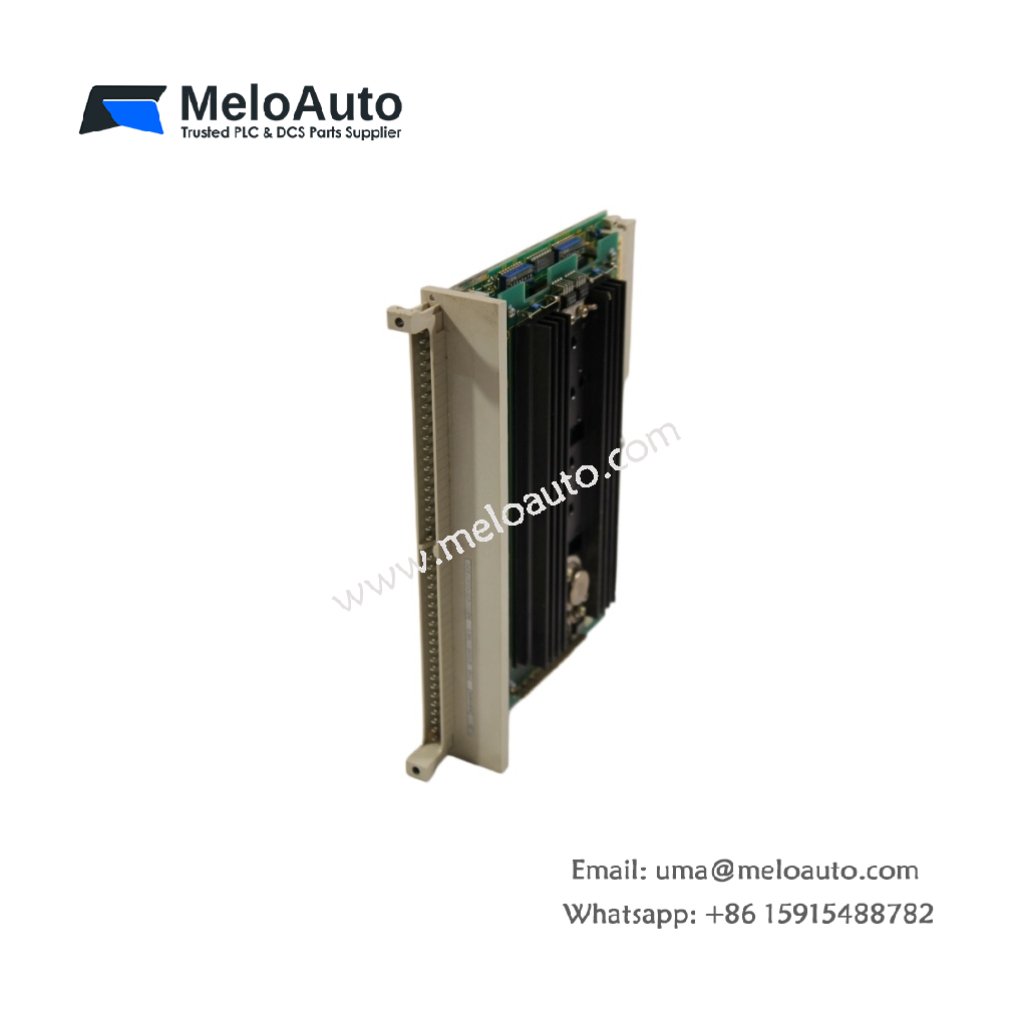

The Siemens 6ES5245-1AB12 functions as a dedicated valve control module for the SIMATIC S5 PLC family. This module directly manages solenoid valves and pneumatic actuators in industrial processes. It combines digital outputs with integrated driver circuits for efficient valve operation. The design eliminates the need for external relay interfaces.

Key Technical Specifications

This section details the exact parameters for the Siemens 6ES5245-1AB12 valve control module. Use these specifications to ensure proper system integration.

Parameter	Specification
Part Number	6ES5245-1AB12
Type	Valve Control Module
Product Family	SIMATIC S5
Number of Channels	8 Valve Outputs
Output Voltage	24V DC
Output Current	1.0 A per channel
Short-circuit Protection	Electronic, per channel
Diagnostics	Wire-break and short-circuit detection
Dimensions (W x H x D)	Approx. 250 x 25 x 180 mm
Weight	Approx. 1.1 kg
Compatibility	SIMATIC S5-115U, 135U, and 155U systems

Application and System Integration

This module connects directly to the S5 backplane bus for seamless communication. It drives solenoid valves in packaging, chemical, and manufacturing lines. The Siemens 6ES5245-1AB12 includes diagnostic features for detecting wire breaks. Each channel provides an LED indicator for real-time status monitoring. Consequently, maintenance teams can identify faults without additional tools.

Reliability and Performance Characteristics

The electronic protection prevents damage from overcurrent and short circuits. This feature ensures reliable valve operation in demanding environments. The module’s robust construction withstands industrial vibration and temperature changes. Engineers choose the Siemens 6ES5245-1AB12 for its integrated diagnostics and proven durability.
