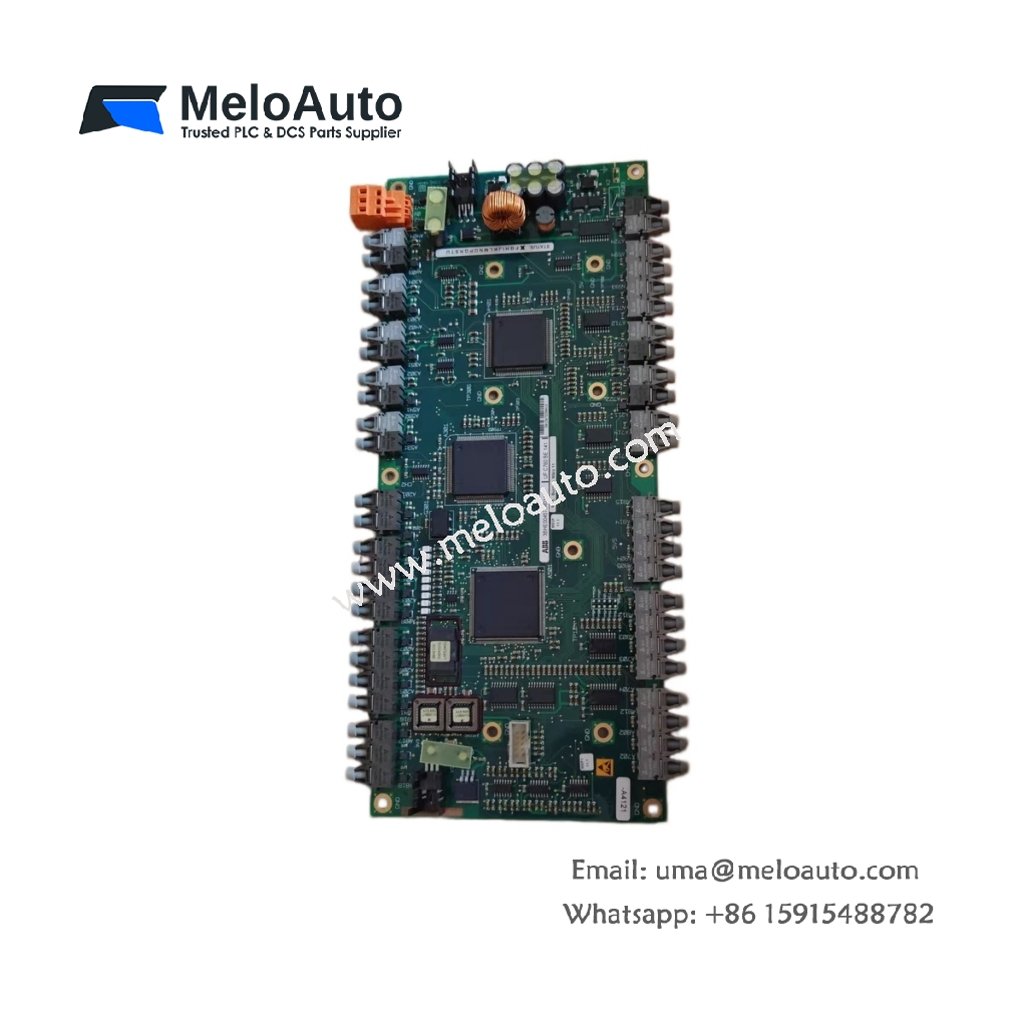

ABB 3BHE004573R0141 Communication Board

Product Overview

The ABB 3BHE004573R0141 operates as a high-performance communication interface for industrial control systems. This board facilitates seamless data exchange between field devices and higher-level automation networks. Its rugged construction ensures reliable operation in harsh manufacturing environments. We designed this module specifically for demanding process and power generation applications.

Technical Specifications

This communication board delivers robust connectivity options for versatile system integration. The ABB 3BHE004573R0141 supports multiple serial and fieldbus protocols for maximum compatibility. Engineers can configure the board to match their specific network architecture requirements. The module features extensive diagnostic capabilities for real-time health monitoring. Its compact form factor saves valuable cabinet space without compromising performance.

Parameter	Specification
Processor	32-bit RISC microcontroller
Operating Voltage	24 V DC nominal (18–32 V DC range)
Power Consumption	8.5 W typical
Communication Protocols	PROFIBUS DP, Modbus RTU, serial RS-232/RS-485
Communication Speed	Up to 12 Mbps (PROFIBUS DP)
Galvanic Isolation	2.5 kV between field and logic
Number of Channels	2 serial ports (configurable)
Weight	0.65 kg (approximately 1.43 lbs)
Dimensions (W x H x D)	65 mm x 165 mm x 175 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity Tolerance	5% to 95% non-condensing

Key Features and Benefits

The ABB 3BHE004573R0141 integrates seamlessly with ABB’s extensive automation product portfolio. Its dual-port architecture allows simultaneous communication with different network types. Moreover, the board includes built-in diagnostic LEDs for quick troubleshooting. The module supports firmware upgrades via standard serial interfaces. Consequently, maintenance teams can easily update the board without special tools.

Installation and System Integration

You can mount the ABB 3BHE004573R0141 directly onto a standard DIN rail. The board requires a 24 V DC power supply with adequate current capacity. Furthermore, you must ensure proper grounding to maintain electrical noise immunity. This board fits well within ABB’s system 800xA and other major DCS platforms. Always verify protocol compatibility before connecting to your existing network.

Reliability and Environmental Compliance

The ABB 3BHE004573R0141 complies with major international safety and environmental standards. It meets RoHS and WEEE directives for eco-friendly manufacturing. The board’s wide temperature range suits both indoor and outdoor installations. Its robust housing protects against dust and moisture ingress. This durability translates into reduced downtime and lower total cost of ownership.
