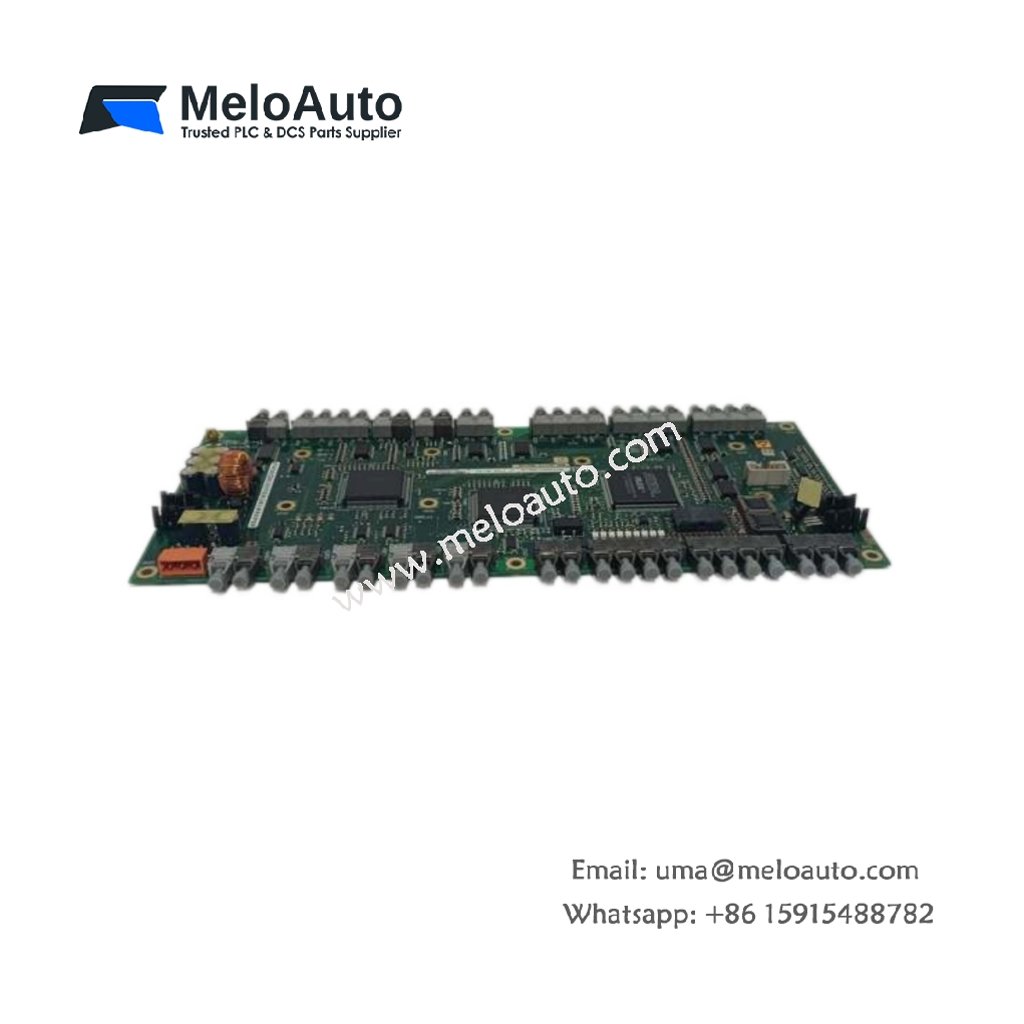

ABB 3BHE004573R0142 Interface Board

Product Overview

The ABB 3BHE004573R0142 serves as a dedicated interface module for process control systems. This board bridges field signals with the main controller for accurate data acquisition. Its advanced circuitry handles analog and digital inputs with exceptional precision. We engineered this unit for continuous operation in power generation and industrial facilities.

Hardware Architecture and Connectivity

This interface board features a robust multilayer PCB design for signal integrity. The ABB 3BHE004573R0142 provides multiple isolated channels for diverse field device connections. Front-facing LED indicators display each channel’s operational status at a glance. The module uses high-grade connectors to ensure reliable contact over many years. Furthermore, its shielded housing minimizes electromagnetic interference from nearby equipment.

Technical Specifications

The ABB 3BHE004573R0142 delivers accurate signal conversion across its input ranges. Its sampling rate supports high-speed control loops without any data loss. The board stores configuration parameters in non-volatile memory for quick recovery. Users can adjust gain and offset settings via software commands. This flexibility makes the module suitable for various measurement applications.

Parameter	Specification
Input Channels	8 analog inputs (4–20 mA / 0–10 V selectable)
Digital Channels	8 configurable digital I/O points
Resolution	16-bit analog-to-digital conversion
Sampling Rate	1 kHz per channel
Isolation Voltage	2.5 kV between channels and logic
Power Supply	24 V DC nominal (19.2–28.8 V DC)
Power Consumption	6.2 W typical
Memory Storage	256 KB EEPROM for user settings
Connector Type	48-pin D-sub and terminal blocks
Weight	0.58 kg (approximately 1.28 lbs)
Dimensions (W x H x D)	70 mm x 160 mm x 170 mm
Operating Temperature	-25°C to +65°C
Humidity	10% to 90% non-condensing
Protection Class	IP20 (installed)

Key Functional Benefits

The ABB 3BHE004573R0142 simplifies system wiring through its versatile terminal design. Its hot-swappable capability allows module replacement without powering down the entire rack. Consequently, maintenance teams can perform repairs with minimal production disruption. The board includes comprehensive self-diagnostic routines for proactive fault detection. Additionally, its low power consumption reduces heat generation inside the control cabinet.

Installation and Environmental Considerations

You must mount the ABB 3BHE004573R0142 on a grounded DIN rail within an IP54 enclosure. Proper cable shielding ensures optimal signal quality in noisy industrial environments. The module supports both vertical and horizontal mounting orientations. However, you should avoid obstructing the ventilation slots on the housing. This board works seamlessly with ABB’s DCS and PLC product families.

Compliance and Reliability

The ABB 3BHE004573R0142 meets CE and UL standards for industrial control equipment. Its solid-state design contains no moving parts for extended service life. The board withstands vibration up to 2 g across 10–500 Hz. Moreover, its MTBF exceeds 200,000 hours under normal operating conditions. This reliability translates to lower spare parts inventory and maintenance costs.
