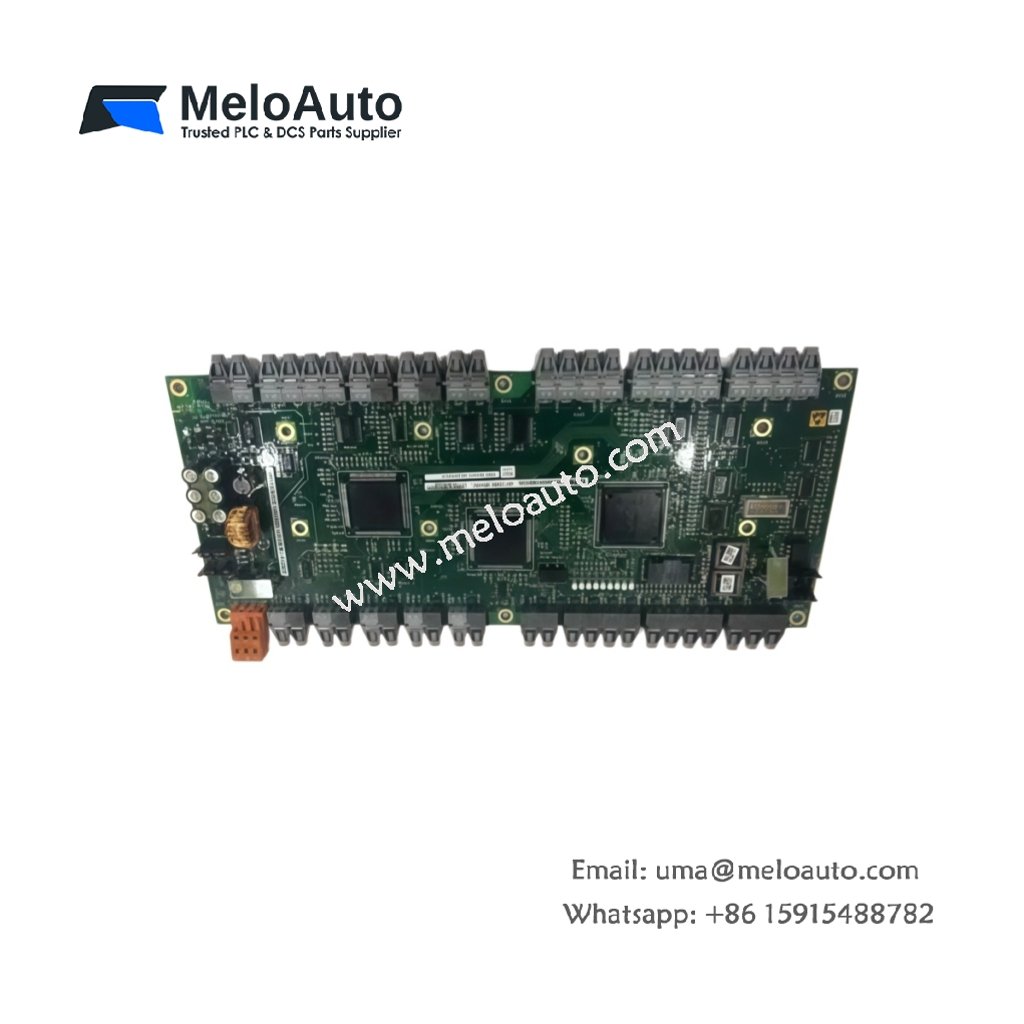

ABB 3BHE004573R0143 Interface Board

Product Overview

The ABB 3BHE004573R0143 functions as a versatile interface board for industrial automation frameworks. This module handles signal conditioning between field instruments and the primary control system. Its flexible configuration supports both analog and digital signal types. We built this unit for continuous duty in demanding process environments.

Core Architecture and Signal Processing

This interface board employs a high-speed microcontroller for real-time data handling. The ABB 3BHE004573R0143 offers multiple input ranges to accommodate various sensor types. Its onboard filtering removes high-frequency noise from incoming signals. The module stores calibration data in non-volatile memory for consistent performance. Moreover, its multilayer PCB design ensures excellent signal integrity across all channels.

Technical Specifications

Parameter	Specification
Analog Inputs	16 single-ended or 8 differential channels
Input Ranges	±10 V, ±5 V, 0–10 V, 0–20 mA, 4–20 mA
Analog Outputs	4 channels, 0–10 V or 4–20 mA
Digital I/O	8 channels, 24 V DC sink/source
Resolution	14-bit ADC (analog inputs), 12-bit DAC (outputs)
Sampling Rate	500 Hz per channel maximum
Isolation	1.5 kV between field and logic side
Power Supply	24 V DC ±20%
Power Consumption	7.8 W typical
Configurable Parameters	Gain, offset, filter settings per channel
Non-Volatile Storage	128 KB EEPROM
Connector Type	37-pin D-sub and screw terminals
Weight	0.62 kg (approximately 1.37 lbs)
Dimensions (W x H x D)	75 mm x 155 mm x 165 mm
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing

Key Features and Operational Advantages

The ABB 3BHE004573R0143 provides exceptional flexibility for mixed-signal applications. Its software-configurable input channels eliminate the need for hardware jumpers. Consequently, engineers can adapt the module to new tasks without physical modifications. The board includes comprehensive diagnostic features for monitoring signal quality. Additionally, its low-profile design saves valuable rack space in crowded cabinets.

Installation and System Integration

You must install the ABB 3BHE004573R0143 on a standard DIN rail inside a control panel. Proper grounding of the shield connections ensures optimal noise immunity. The module supports daisy-chaining for multi-board configurations. Furthermore, you can address each unit individually through its DIP switch settings. This board integrates seamlessly with ABB’s Advant and System 800xA platforms.

Reliability and Environmental Durability

The ABB 3BHE004573R0143 undergoes rigorous testing for industrial certification. Its fanless thermal design relies on natural convection for cooling. The board meets IEC 61131-2 standards for industrial control equipment. Moreover, its MTBF exceeds 180,000 hours under typical operating conditions. This reliability reduces unplanned downtime and maintenance interventions.
