Schneider 140XTS10206 | Quantum CableFast I/O Cable

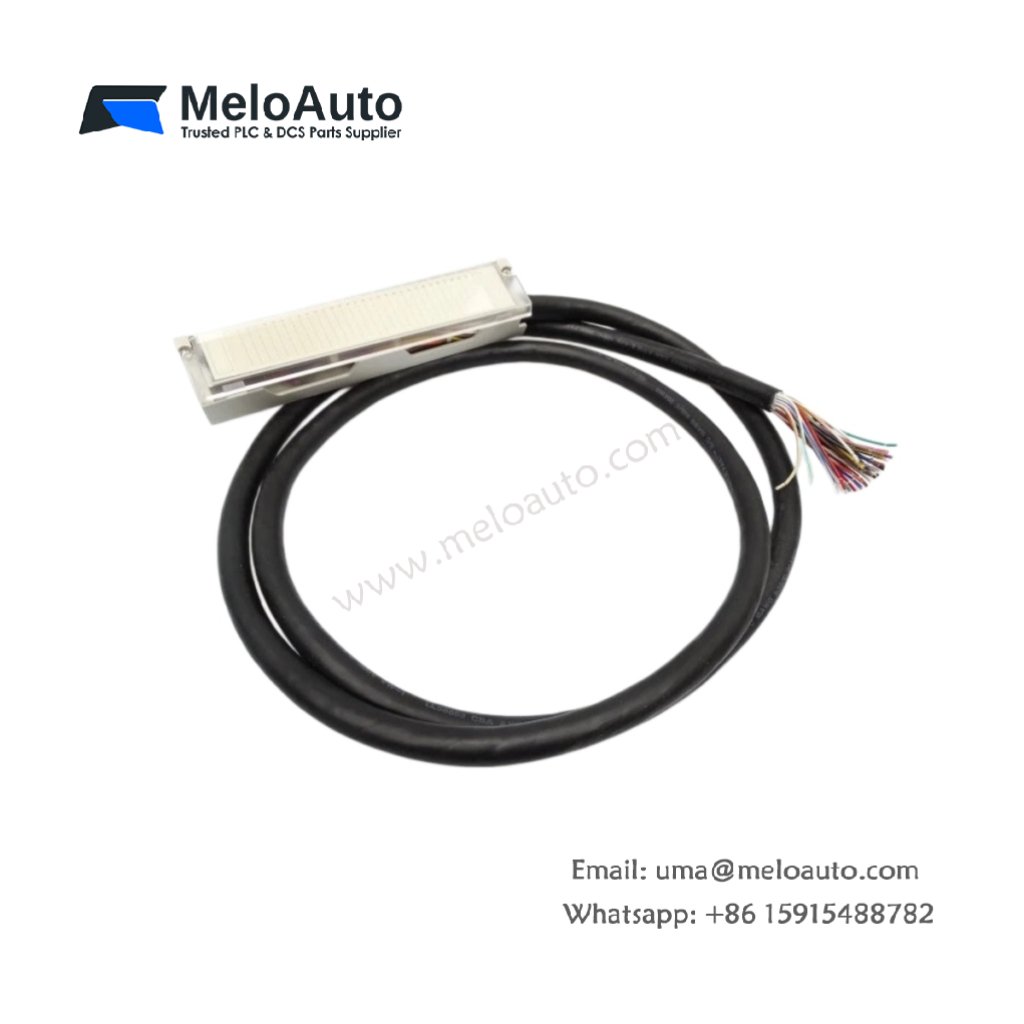

The Schneider 140XTS10206 provides a pre-wired cabling solution for Modicon Quantum I/O modules. This CableFast cable connects field devices directly to the 140XTS00200 or 140XTS00400 telefast terminals. It measures exactly 2 meters in length for flexible cabinet layouts. Weighing only 0.35 kg, the Schneider 140XTS10206 simplifies field wiring dramatically. Its robust construction ensures reliable signal transmission in industrial environments.

Cable Construction and Connector Types

The Schneider 140XTS10206 features a 26-pin SUB-D female connector on the I/O side. This cable terminates with a 20-pin removable screw terminal block on the field side. It contains 20 individually shielded twisted pairs for superior noise immunity. Moreover, each pair includes a dedicated drain wire for proper grounding. Consequently, the Schneider 140XTS10206 rejects electrical interference from motors and drives effectively.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider 140XTS10206
Product Category	Modicon Quantum CableFast I/O Cable
Cable Length	2.0 meters (2000 mm)
Connector Type (I/O Module Side)	26-pin SUB-D female
Connector Type (Field Side)	20-pin removable screw terminal block
Number of Conductors	20 wires (10 twisted pairs)
Shielding Type	Individual foil shielding + drain wire
Wire Gauge	AWG 24 (0.2 mm²)
Rated Voltage	30 V DC maximum
Rated Current per Wire	1 A maximum
Insulation Material	PVC (polyvinyl chloride)
Jacket Material	Gray PVC (flexible)
Outer Diameter	10 mm ± 0.5 mm
Minimum Bending Radius (Static)	50 mm (5 x cable diameter)
Minimum Bending Radius (Dynamic)	100 mm (10 x cable diameter)
Net Weight	0.35 kg (350 grams)
Gross Weight (packaged)	480 grams
Number of Components	1 cable assembly + 2 connectors + 1 terminal block
Energy Storage	None (passive cable only)
Flammability Rating	VW-1 (self-extinguishing)
Operating Temperature (Fixed)	-20°C to +80°C
Operating Temperature (Flexing)	0°C to +70°C
Storage Temperature	-25°C to +85°C
UL Rating	UL 2464
RoHS Compliance	Yes (2011/65/EU)
Compatible Telefast Bases	140XTS00200, 140XTS00400
Compatible Quantum Modules	All 140 discrete I/O modules with 26-pin SUB-D

Compatible Modules and Application Use

The Schneider 140XTS10206 works with any Quantum discrete I/O module using a 26-pin SUB-D connector. This includes 140DAI74000, 140DDO84300, and similar part numbers. The cable connects the module to a 140XTS00200 or 140XTS00400 telefast terminal base. Therefore, you can wire field sensors and actuators without accessing the PLC rack directly. The Schneider 140XTS10206 reduces installation time and eliminates wiring errors. Use this cable for new installations or quick field replacements. Thus, it saves valuable engineering hours during system commissioning.

Installation Notes and Ordering Information

The Schneider 140XTS10206 ships as a single complete cable assembly. You do not need additional connectors or tools for installation. Simply plug the SUB-D end into your Quantum I/O module. Then, mount the terminal block side inside your control cabinet. The Schneider 140XTS10206 supports up to 20 field devices per cable. For longer distances, consider the 140XTS10203 (3 meters) or 140XTS10205 (5 meters) variants. This cable suits conveyor systems, packaging machines, and material handling equipment perfectly.
