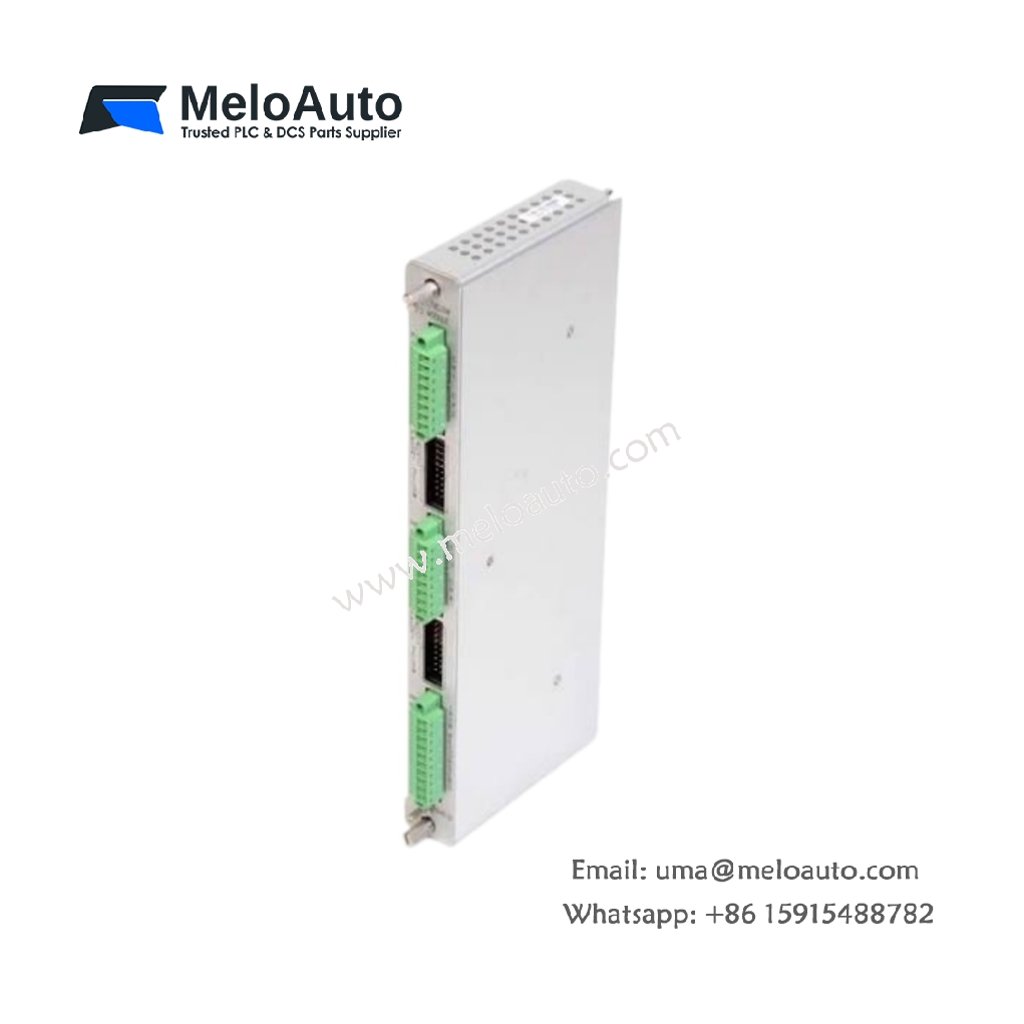

Bently Nevada 140471-01 3500/42M | 4-Channel Monitor Module

The Bently Nevada 140471-01 3500/42M four-channel monitor provides comprehensive vibration and position monitoring for 3500 systems. This module interfaces with proximity probes, accelerometers, and velocity transducers for complete machinery protection. The unit delivers real-time measurements with programmable alarm and trip settings.

Technical Specifications

Parameter	Specification
Product Type	Four-channel monitor module
Model	3500/42M
Compatibility	Bently Nevada 3500 system
Number of Channels	4 inputs (isolated)
Input Types	Proximity probes, accelerometers, velocity transducers
Input Signal Range	±5V, ±10V, 4-20mA (configurable)
Frequency Range	0.2 Hz to 10 kHz (configurable)
Dynamic Range	85 dB (minimum)
Isolation Voltage	500V DC (channel-to-channel)
Measurement Types	Radial vibration, axial position, eccentricity, acceleration
Alarm Settings	Programmable (4 per channel)
Trip Settings	Programmable (2 per channel)
Outputs	4 x 4-20mA (buffered)
Dimensions (W x H x D)	241 x 152 x 25 mm
Weight	0.9 kg
Internal Components	4 x isolation amps, 1 x DSP, 4 x ADCs, 4 x filters, 4 x DACs
Signal Processing	Digital filtering, FFT, trend analysis, peak detection
Connector Type	25-pin D-sub (female)
Power Supply	24V DC (from backplane)
Power Consumption	7W (typical)
LED Indicators	4 x status LEDs (channel health, alarm)
Operating Temperature	-20°C to +65°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Mounting	3500 rack (plug-in)
Approvals	CE, UL, CSA, ATEX

Comprehensive Vibration and Position Monitoring

The Bently Nevada 140471-01 3500/42M provides complete radial vibration, axial position, and acceleration monitoring. This module handles a wide range of measurement types for comprehensive machinery protection. Users can configure each channel for specific measurement parameters. The unit supports displacement, velocity, and acceleration measurements.

Four Isolated Channels with Configurable Inputs

Four independent channels provide 500V DC isolation for reliable signal acquisition. Each channel accepts proximity probes, accelerometers, or velocity transducers. Users can configure input types and ranges per channel independently. This flexibility accommodates diverse sensor installations and applications.

Advanced Digital Signal Processing

An integrated DSP performs real-time digital filtering and FFT analysis. The module provides trend analysis and peak detection for predictive maintenance. Programmable filters reject unwanted frequencies for accurate measurements. Users can analyze both steady-state and transient vibration conditions.

Programmable Alarm and Trip Settings

Each channel includes 4 programmable alarms and 2 programmable trips for protection. Users can set alert and danger thresholds for each measurement type. The module provides relay outputs for external alarm and trip indication. This configuration ensures early warning and automatic machine protection.

Buffered 4-20mA Outputs for External Systems

Four buffered 4-20mA outputs provide proportional measurement signals for external systems. These outputs connect to PLCs, DCS, and chart recorders. The buffered design maintains signal integrity over long cable runs. Users can integrate monitoring data with plant control systems seamlessly.

Seamless 3500 Rack Integration

The module plugs directly into the 3500 rack backplane for simple installation. A 25-pin D-sub connector provides field wiring for all sensors and outputs. Users can replace modules without system shutdown. The half-height design fits standard 3500 rack configurations efficiently.
