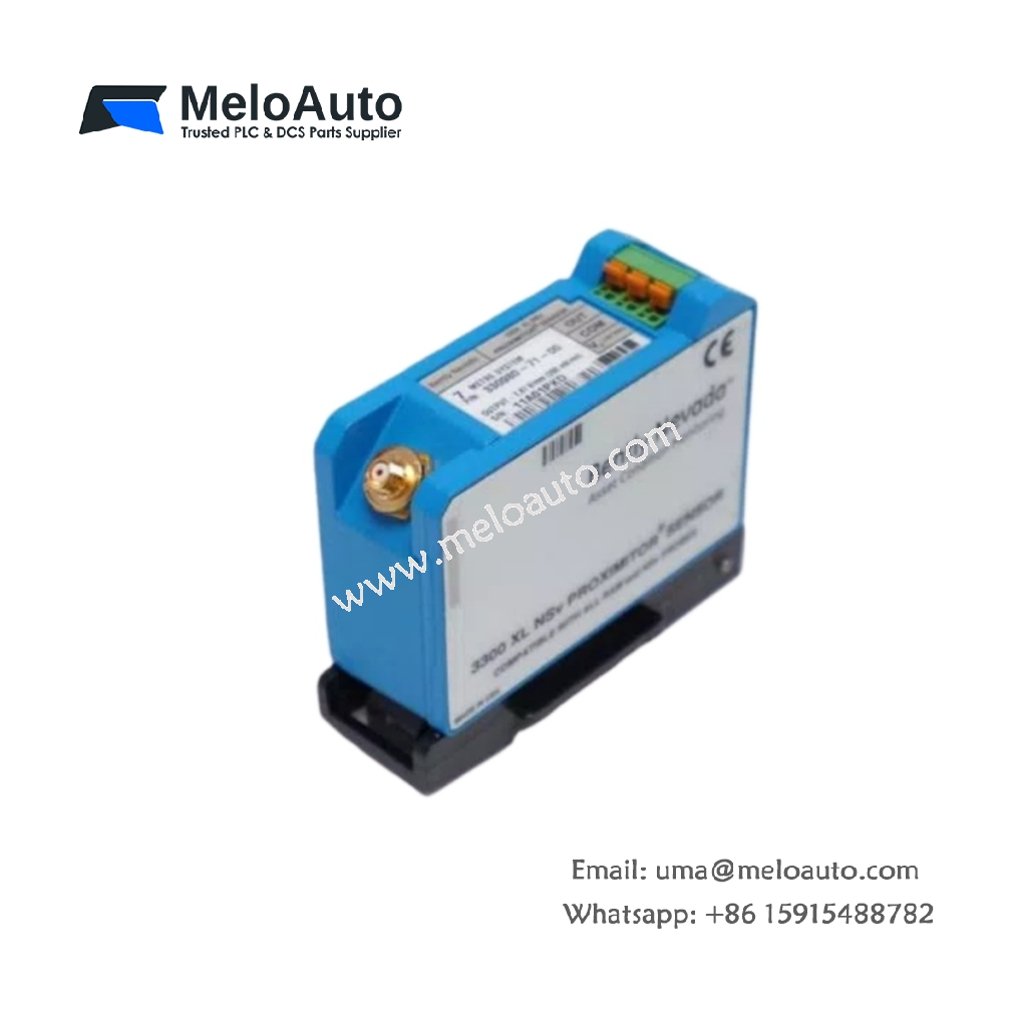

Bently Nevada 330980-71-00 | 3300 XL Proximitor Sensor

8 mm Proximitor with 7-Button Interface for 3300 XL Systems

The Bently Nevada 330980-71-00 functions as the signal conditioning element within the 3300 XL proximity measurement system. This device converts the eddy current probe’s RF signal into a proportional DC voltage. It provides reliable shaft displacement data for turbines, compressors, and motor-generator sets.

This Proximitor operates with a matching 8 mm probe and includes a 7-button interface for convenient configuration. A factory-matched configuration ensures consistent linearity without requiring field calibration. The device outputs a -1 to -21 VDC signal for direct connection to monitoring systems.

Technical Specifications

Parameter	Specification
Model	330980-71-00
Type	3300 XL Proximitor Sensor
Compatible Probe	8 mm 3300 XL Series
User Interface	7-button keypad
Supply Voltage	-17.5 VDC to -26 VDC
Output Signal	-1 VDC to -21 VDC
Output Impedance	50 Ω
Maximum Cable Length	300 m (probe to Proximitor)
Connector	BNC female (output)
Mounting	DIN rail or panel
Operating Temp	-35 °C to +85 °C
Weight	0.50 kg (approx.)
Compliance	API 670, ATEX, CSA

The 7-button interface allows convenient configuration and status checking at the unit. Its 50 Ω output impedance ensures proper signal transmission to remote monitoring systems. The device supports extended cable runs up to 300 meters for flexible installation locations.

The 330980-71-00 mounts conveniently on standard DIN rails or panels. Its BNC female connector allows quick and secure output cable attachment. This unit also features intrinsic safety certification for hazardous area applications.

This Proximitor integrates seamlessly with Bently Nevada 3500 and 1900 series monitoring systems. Its robust design operates reliably in harsh industrial environments from -35 °C to +85 °C. Therefore, this device provides a dependable solution for continuous machine health monitoring.
