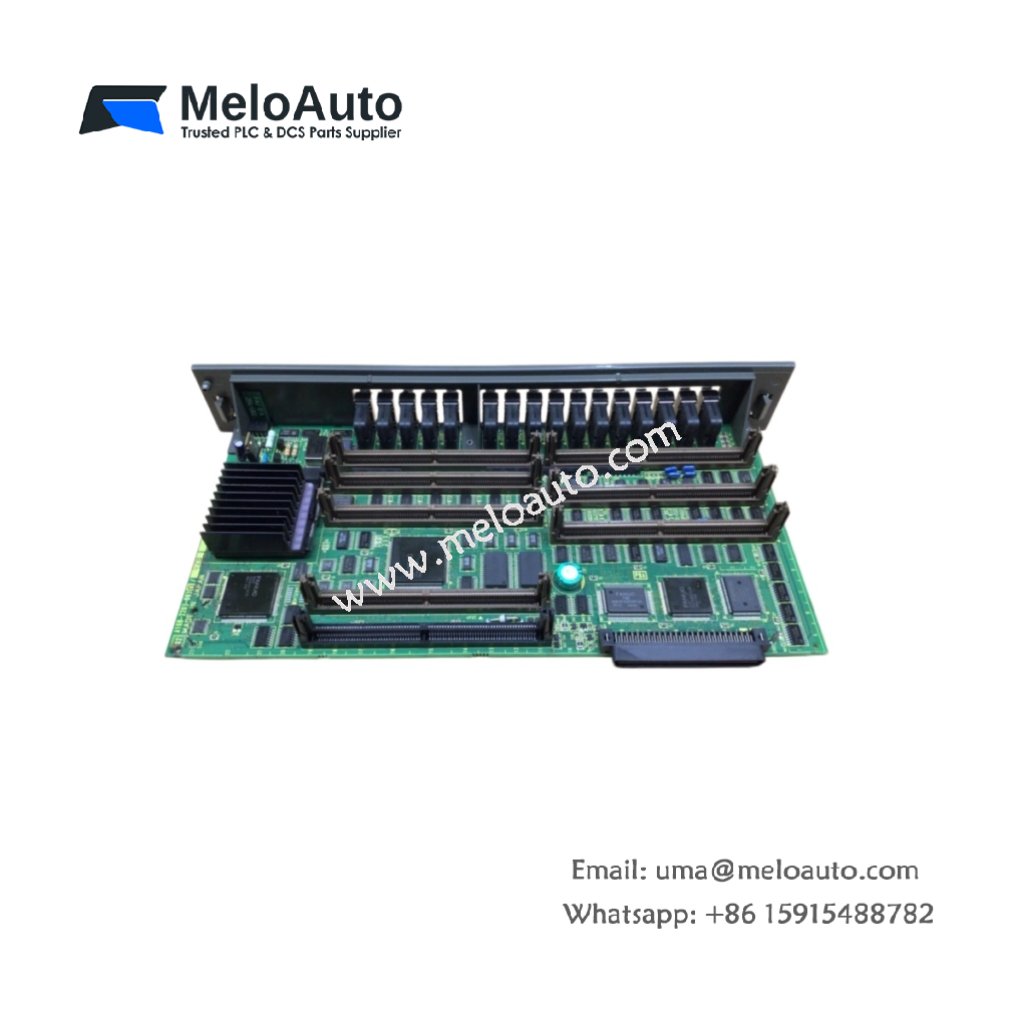

GE A20B-2900-0930/01A Circuit Board

This circuit board manages critical signal processing for CNC systems. It coordinates data flow between the main controller and servo drives. The GE A20B-2900-0930/01A ensures reliable operation in automated manufacturing cells. You can install this unit as a direct replacement in existing GE equipment.

Physical and Electrical Parameters

Parameter	Specification
Model Number	A20B-2900-0930/01A
Category	Circuit Board (PCB Assembly)
Brand	GE (General Electric)
Unit Weight	0.45 kg (1.0 lb)
Board Dimensions (L x W)	220 mm x 160 mm
Board Thickness	1.6 mm
Layer Count	4-layer PCB
Component Count	124 discrete components
Energy Storage	1,200 µF total across 6 capacitors
Logic Supply Voltage	5 VDC ±5%
I/O Interface Count	2 x 50-pin ribbon connectors

Internal Architecture and Component Layout

Moreover, the GE A20B-2900-0930/01A contains three main functional zones. The power regulation zone uses four electrolytic capacitors. These capacitors store 1,200 µF of energy for voltage stabilization. Next, the processing zone includes one 16-bit microcontroller. That microcontroller handles real-time communication tasks. Finally, the isolation zone features six optocouplers. These optocouplers separate digital signals from noisy power lines.

Interface Connectivity and Signal Routing

For external connections, this board provides two 50-pin ribbon headers. One header links to the main CNC processor. The other header connects to servo amplifier modules. Additionally, you will find four test points on the board’s edge. Those points allow diagnostic measurements without removing the unit. Therefore, troubleshooting becomes faster for maintenance technicians.

Energy Management and Decoupling Strategy

Furthermore, the GE A20B-2900-0930/01A distributes its 1,200 µF storage across three voltage rails. The 5 V rail has 470 µF of local decoupling. The 15 V rail uses another 470 µF capacitor. The 24 V rail employs a 260 µF filter capacitor. This arrangement filters high-frequency switching noise effectively. Consequently, analog sensor readings remain stable and accurate.

Thermal and Mechanical Reliability

The board operates reliably between 0°C and 60°C ambient. All 124 components use lead-free solder for environmental compliance. A conformal coating protects the GE A20B-2900-0930/01A from dust and moisture. You can mount this board using four M3 standoffs. Always maintain 10 mm clearance around the voltage regulator IC.
