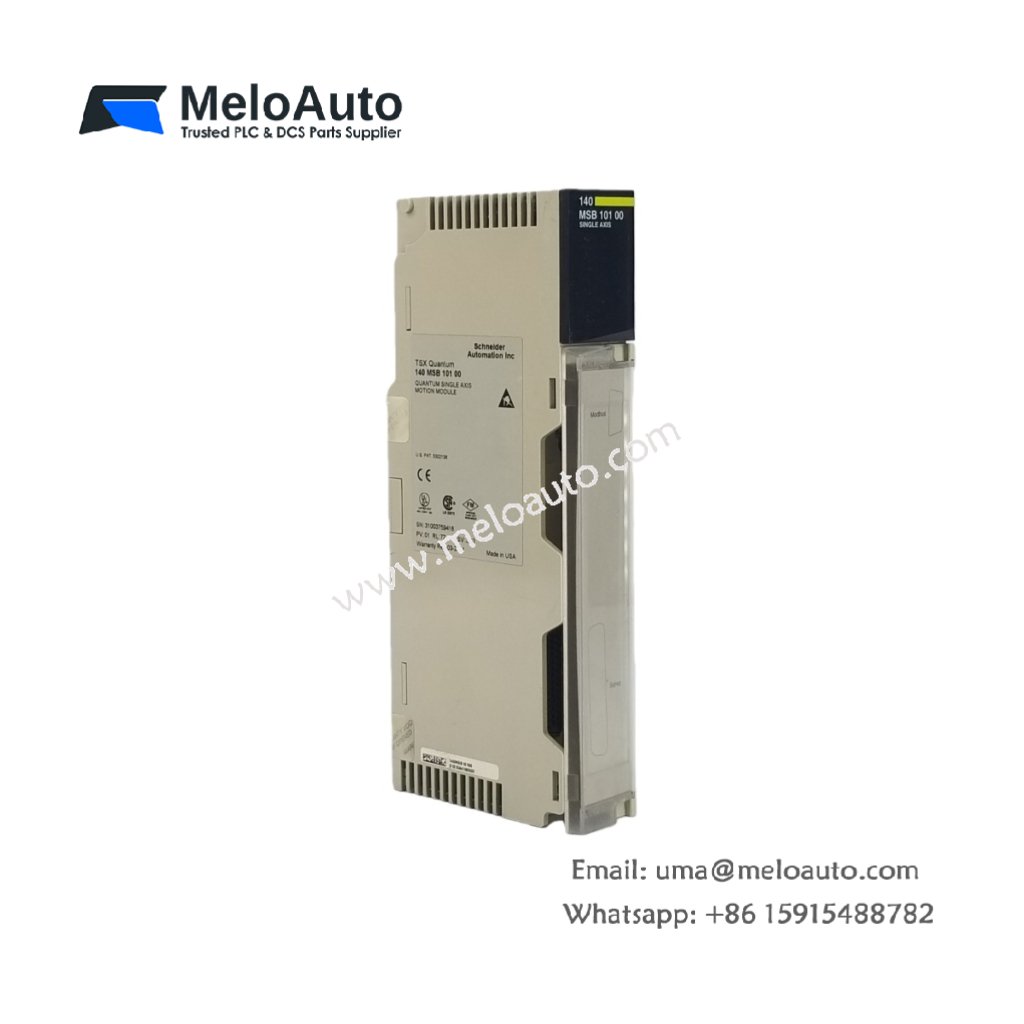

Schneider 140MSB10100 Modicon Quantum Motion Controller

Overview of the 140MSB10100 Motion Controller

The Schneider 140MSB10100 is a high-performance Modicon Quantum Motion Controller designed to synchronize one real axis and one remote axis. This controller supports a vast positioning range, offering up to 4,294,967,296 points that can be configured in units such as inches, millimeters, or counts per second. Ideal for various industrial applications, it ensures precision and reliability in motion control systems.

Key Features

• Manufacturer: Schneider Electric
• Product Type: Modicon Quantum Motion Controller
• Part Number: 140MSB10100
• Product Line: I/O Modules
• Weight: 1.13 lbs (0.51 kg)
• Axis Control: One real and one remote axis synchronization
• Positioning Range: Up to 4,294,967,296 points
• Motion Types: Absolute, relative, homing, and continuous movements
• Update Rates: Position loop updates at 1 ms; speed loop updates at 0.5 ms
• System Accuracy: Achieves up to 0.5 arc/min, depending on the encoder
• Encoder Compatibility: Supports differential encoders, with 5 V ± 20% voltage
• Incremental Encoder Frequency: Up to 500 kHz (x1) or 2000 kHz (x4)

Technical Specifications

Features & Performance

The 140MSB10100 enables seamless synchronization between a real axis and a remote axis. It supports absolute, relative, homing, and continuous motion types, offering flexibility for different automation tasks. With a position loop update rate of 1 ms and a speed loop update rate of 0.5 ms, the controller provides precise and rapid adjustments, crucial for high-performance systems.

Moreover, the 140MSB10100 achieves a system accuracy of 0.5 arc/min, depending on the encoder used. This precision makes it ideal for systems where small movements and accurate positioning are critical. The controller is also compatible with differential encoders, supporting a frequency of up to 500 kHz (x1) or 2000 kHz (x4), ensuring high-resolution control.

Ideal Applications

The 140MSB10100 is well-suited for a variety of industrial applications that require multi-axis motion control. It is particularly effective in systems involving packaging, robotics, CNC machinery, and any application where precise motion synchronization between multiple axes is essential.

Manufacturer and Model Information

• Brand: Schneider Electric
• Model: 140MSB10100
• Category: Modicon Quantum Motion Controller

The 140MSB10100 from Schneider Electric stands out in the field of industrial automation, providing high-level motion control capabilities. It is an essential part of the Modicon Quantum I/O modules, widely recognized for its advanced performance and flexibility.
