Overview

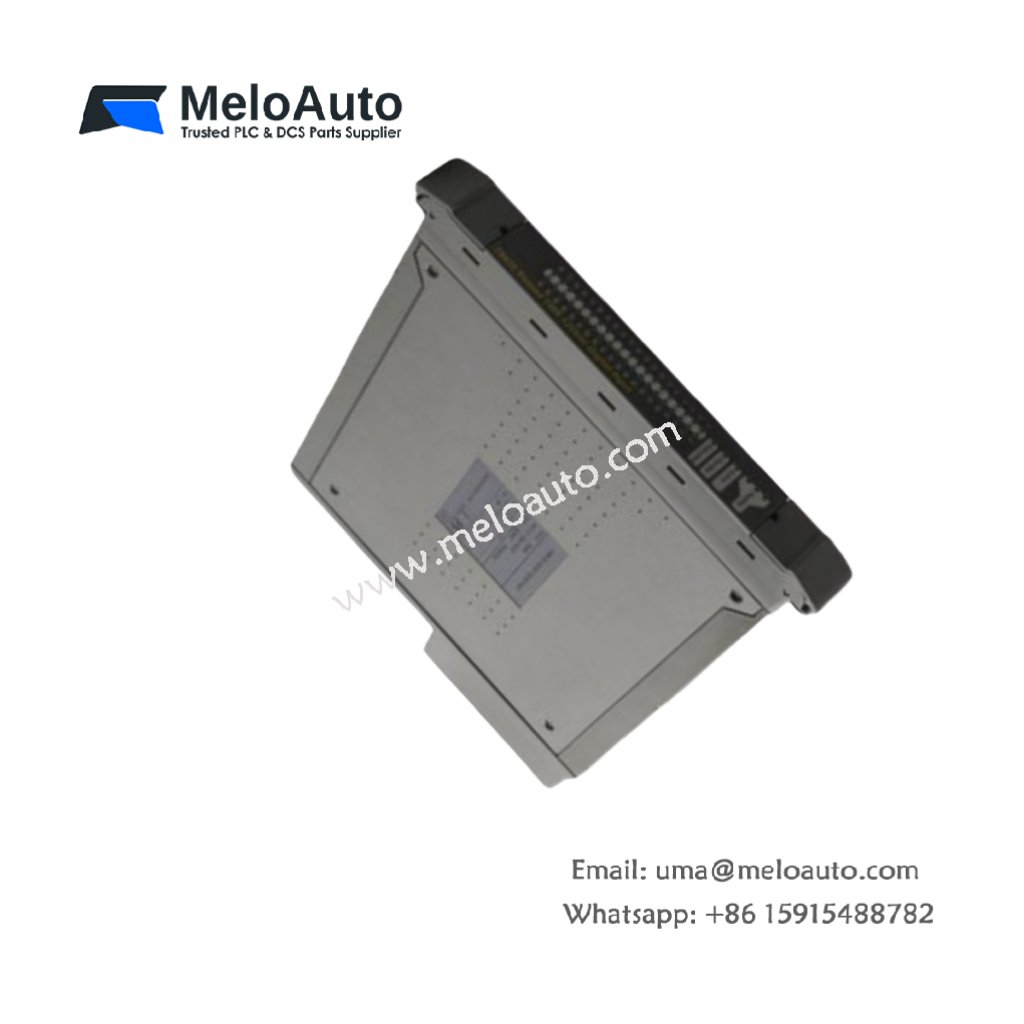

The ICS Triplex T8802 is a 60-channel 24 V DC digital input Field Termination Assembly (FTA) designed for Trusted TMR systems. It serves as the main interface between field devices and the Trusted Dual 24 V DC Digital Input Module T8402, providing reliable signal acquisition for safety-critical applications. Manufactured by Rockwell Automation, this module supports high-performance process control and industrial automation networks.
Key Features
- 60 Input Channels: Supports extensive field device monitoring with dual-wire connections.
- Fused Protection: Each channel has a dedicated fuse to prevent electrical faults.
- Hot-Swappable Modules: SmartSlot design allows one-to-many replacement without system downtime.
- Standard DIN Rail Mounting: Simplifies installation and ensures stable mechanical integration.
- Monitoring Channels: Channels 0 and 61 monitor field power supplies for enhanced diagnostics.
- 24 V DC Operation: Compatible with standard industrial control voltages.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | T8802 |
| Series | ICS Triplex Trusted TMR System |
| Manufacturer | Rockwell Automation |
| Module Type | Digital Input Field Termination Assembly (FTA) |
| Input Voltage | 24 V DC |
| Number of Channels | 60 digital input channels (+2 monitoring channels) |
| Field Wiring | Standard 2-wire field device connections |
| Fused Input | One fuse per channel for protection |
| Mounting | DIN rail compatible |
| SmartSlot Support | One-to-many hot replacement of input modules |
| Environmental Rating | Designed for industrial automation environments |
Dimensions and Weight
- Height: 111 mm
- Width: 360 mm
- Depth: 51 mm
- Weight: 1.1 kg
- Country of Origin: USA
Performance and Reliability
The T8802 ensures precise signal acquisition while maintaining system redundancy in TMR networks. Its fused channels isolate faults, protecting connected field devices. Additionally, SmartSlot connectivity enables quick module replacement, reducing downtime during maintenance.
Application Areas
Engineers implement the T8802 in process control, chemical processing, power generation, and emergency shutdown systems. It provides reliable signal interfacing for high-integrity automation networks that require SIL-rated safety performance.
Integration Notes
Install the T8802 on a standard DIN rail and connect field devices via its 2-wire terminals. Pair it with the T8402 Trusted Dual Digital Input Module to complete a fully redundant TMR input network. Monitoring channels provide additional diagnostics for field power supply stability.
Summary
The ICS Triplex T8802 delivers reliable 24 V DC digital input connectivity for industrial automation. Its 60-channel layout, fused protection, and SmartSlot design ensure high reliability in Trusted TMR systems.
