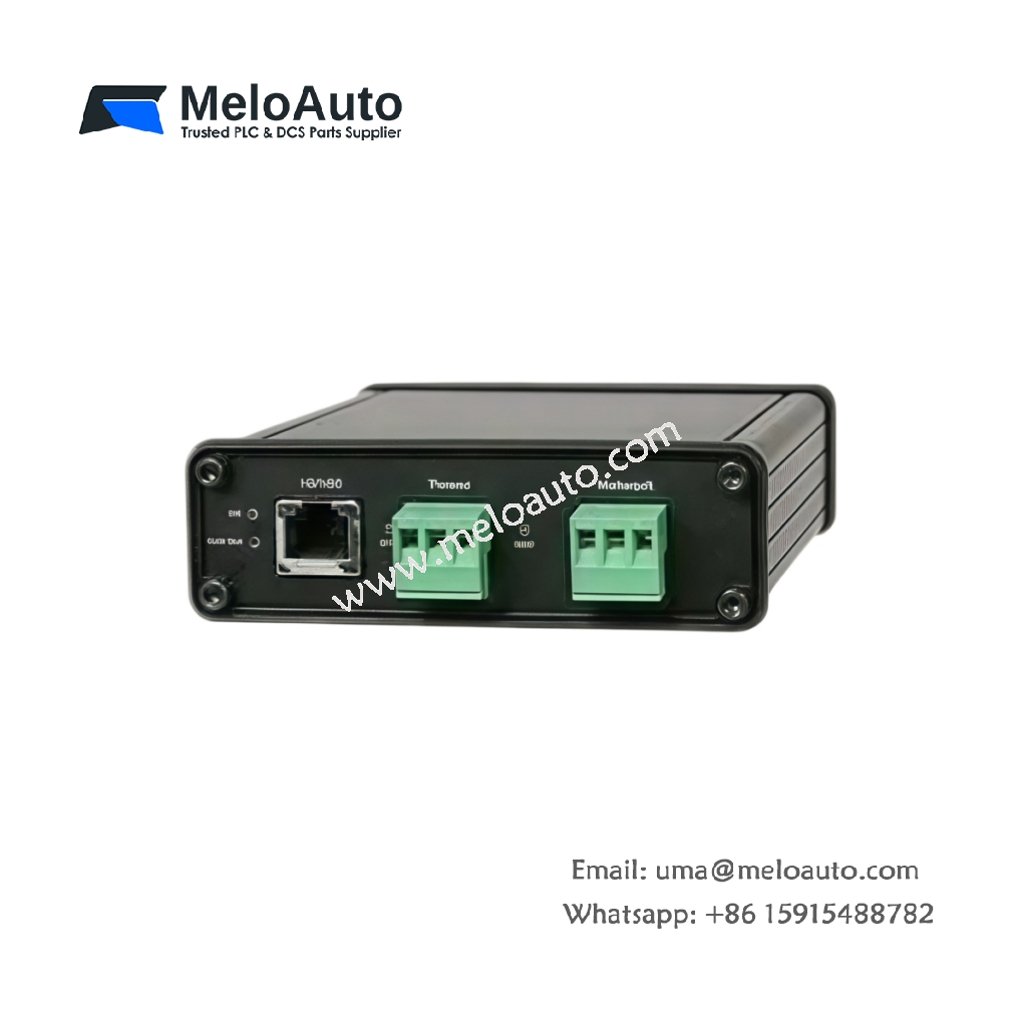

ProSoft AN-X2-AB-DHRIO Gateway

Legacy Network Bridging with the AN-X2-AB-DHRIO

The AN-X2-AB-DHRIO connects Allen-Bradley DH+ and Remote I/O networks to modern EtherNet/IP systems. This multi-purpose gateway translates data between legacy plant networks and current control platforms. System integrators therefore apply it when upgrading older control architectures. Its DIN-rail housing mounts inside standard enclosures without extra brackets.

Detailed Technical Parameters

Dual-network support defines the AN-X2-AB-DHRIO, because the gateway handles DH+ and Remote I/O traffic through separate interface stages. The processor board maps data between legacy frames and EtherNet/IP tags. Meanwhile, the Ethernet port connects directly to the plant network. Review the essential specifications in the table below.

Parameter	Specification
Function	DH+ and Remote I/O to EtherNet/IP gateway
Network support	DH+, Remote I/O, and EtherNet/IP
Ethernet port	One 10/100 Mbps port
Dimensions (W × H × D)	90 × 140 × 115 mm
Weight	Approximately 0.9 kg
Interface	Ethernet port plus DH+ and Remote I/O connectors
Component count	Processor board plus dual legacy network interface stage
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 55 °C

Integration into Control Systems

The AN-X2-AB-DHRIO snaps onto a DIN rail and connects through standard network cables. Commissioning engineers configure tag mapping through the setup software. Consequently, legacy devices return to service quickly after gateway replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Gateway

Many facilities still operate DH+ and Remote I/O networks for their proven field reliability. Hence, the AN-X2-AB-DHRIO serves as a dependable spare for keeping legacy links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the dual-network design reduces gateway count inside cabinets. This gateway keeps legacy controllers connected and production schedules on track.
