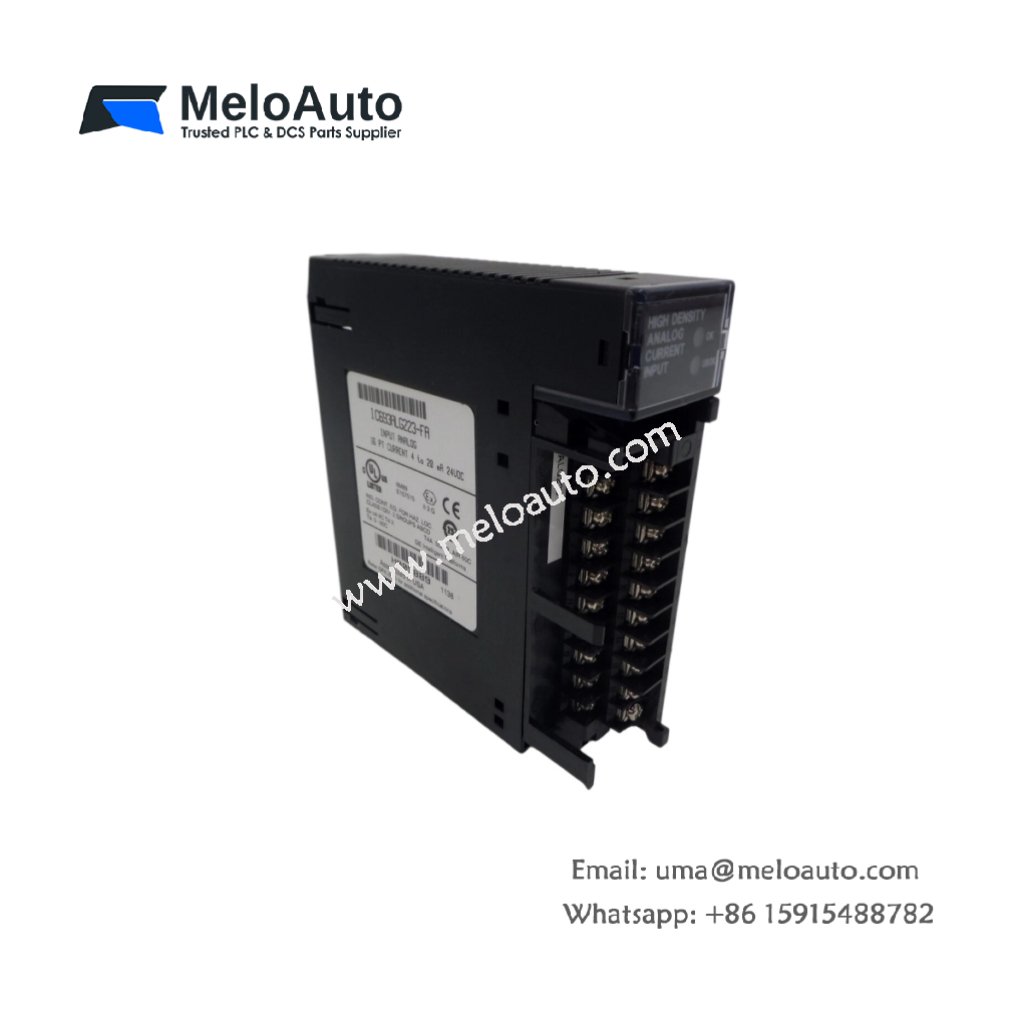

GE IC693ALG223-FA Analog Input Module

This analog input module converts field sensor signals into digital values for a Series 90-30 PLC. It accepts four differential or eight single-ended inputs. You will install this module in any I/O slot of the main rack.

Key Technical Specifications

The IC693ALG223-FA handles input ranges of 0-10V, ±10V, or 4-20 mA. Its 12-bit resolution provides 4096 counts across the full scale. The module also includes a configurable digital filter for noise reduction.

Parameter	Technical Data
Product Type	Series 90-30 Analog Input Module
Input Channels	4 differential or 8 single-ended
Input Ranges	0-10V, ±10V, 4-20 mA (selectable)
Resolution	12 bits (4096 counts)
Conversion Time	5 ms per channel typical
Accuracy	±0.25% of full scale at 25°C
Dimensions (W x H x D)	2.5 cm x 13.6 cm x 12.7 cm
Total Weight	0.28 kg (0.62 lbs)
Terminal Block	1 x 20-position removable
Backplane Connector	24-pin Series 90-30 interface
Onboard Resistors	48 precision resistors
Onboard Capacitors	16 filtering capacitors
Energy Storage	220 µF decoupling capacitance
Operating Temperature	0°C to 60°C

Hardware Architecture and Signal Conditioning

The IC693ALG223-FA uses a 12-bit successive approximation ADC for signal conversion. Forty-eight precision resistors set gain and scaling for each input channel. Sixteen filtering capacitors remove high-frequency noise from industrial environments. A multiplexer sequentially samples each selected channel before conversion.

Interface and Connectivity

One 20-position removable terminal block accepts field wiring from sensors. Each input channel includes dedicated positive and negative terminals. A 24-pin backplane connector transfers digital values to the CPU. The front panel features no LEDs for analog indicators.

Practical Installation Notes

Install this module in any I/O slot of a Series 90-30 rack. The IC693ALG223-FA requires configuration of DIP switches for range selection. Always use shielded twisted-pair cable for 4-20 mA loops. Verify the input signal does not exceed the selected range for accurate readings.
