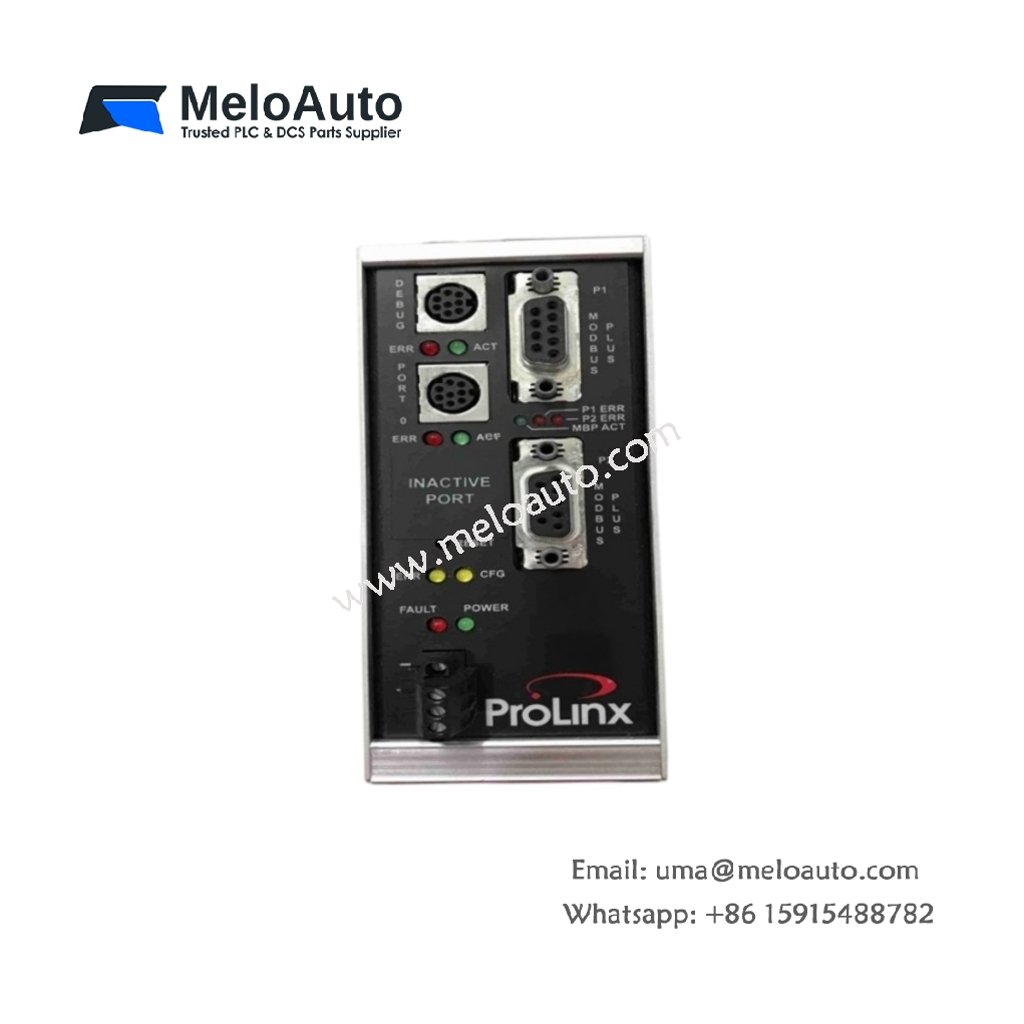

Serial Protocol Bridging with the 5301-MBP-DFCM
The 5301-MBP-DFCM connects Modbus Plus networks to DF1 serial devices in industrial control systems. This communication module translates register data between the two protocols. System integrators therefore apply it when linking legacy Allen-Bradley equipment to Modbus Plus segments. Its DIN-rail housing mounts inside standard enclosures without extra brackets.
Detailed Technical Parameters
Protocol conversion defines the 5301-MBP-DFCM, because the processor board maps data between Modbus Plus frames and DF1 messages. The serial port accepts standard RS-232 wiring for full-duplex communication. Meanwhile, the Modbus Plus port connects directly to the network segment. Review the essential specifications in the table below.
| Parameter | Specification |
|---|---|
| Function | Modbus Plus to DF1 serial communication module |
| Network protocols | Modbus Plus and DF1 full-duplex |
| Serial port | One RS-232 configuration port |
| Dimensions (W × H × D) | 90 × 140 × 115 mm |
| Weight | Approximately 0.8 kg |
| Interface | Modbus Plus port plus RS-232 serial port |
| Component count | Processor board plus communication interface stage |
| Energy storage | Local decoupling capacitor array |
| Operating temperature | 0 °C to 55 °C |
Integration into Control Systems
The 5301-MBP-DFCM snaps onto a DIN rail and connects through standard cables. Commissioning engineers configure register mapping through the setup software. Consequently, serial devices return to service quickly after module replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.
Why Plants Choose This Module
Many facilities still operate DF1 devices for their proven field reliability. Hence, the 5301-MBP-DFCM serves as a dependable spare for keeping data links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the compact design reduces panel space requirements inside cabinets. This module keeps legacy controllers connected and production schedules on track.
