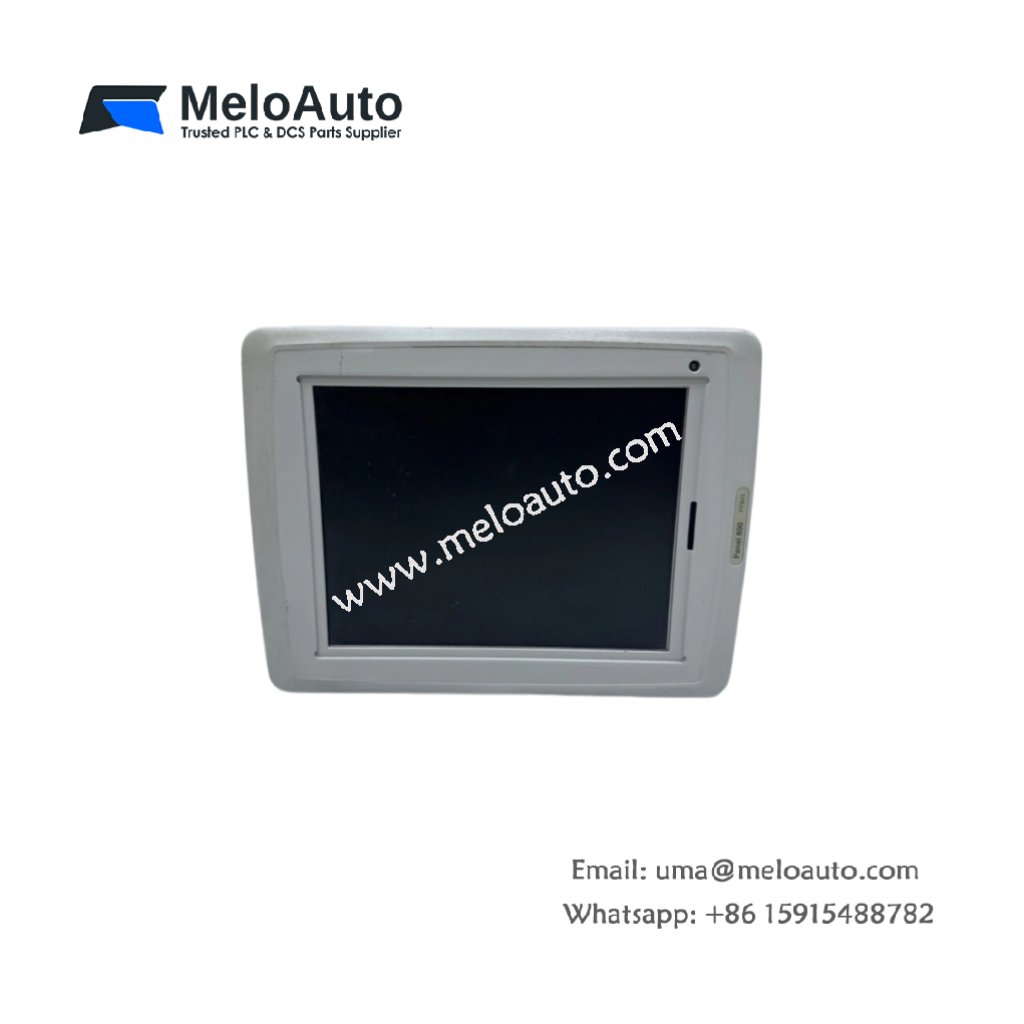

ABB 3BSE042235R1 | Operator Panel

This operator panel provides manual control for ABB Advant industrial systems. It displays process data and accepts commands from plant operators. Therefore, this component enables local monitoring and control of automated equipment.

Physical Dimensions and Weight Specifications

The ABB 3BSE042235R1 features a rugged panel-mount housing for industrial use. Its width measures 240 mm for standard cutout dimensions. The total depth reaches 75 mm including the rear electronics. Consequently, technicians can install this unit on cabinet doors.

Parameter	Specification
Product Model	ABB 3BSE042235R1
Width	240 mm
Height	180 mm
Depth	75 mm
Weight	0.92 kg

Interface Types and Connection Layout

The ABB 3BSE042235R1 provides one RS-232 port for PLC communication. A second RS-485 port supports connection to additional operator stations. The front panel carries a backlit LCD display with 4 lines of 20 characters. Hence, operators can view alarms, setpoints, and production data clearly.

Component Count and User Interface Elements

This operator panel contains one main board with a 16-bit microcontroller. The board holds 128 KB of memory for screen definitions. You will also find a membrane keypad with 24 tactile pushbuttons. An onboard real-time clock timestamps operator actions for audit trails.

Technical Feature	Description
Display Type	LCD, 4 lines x 20 characters
Keypad Keys	24 membrane keys
Function Keys	8 programmable soft keys
Communication	RS-232 and RS-485
Backlight	LED, adjustable intensity

Energy Storage and Power Requirements

The ABB 3BSE042235R1 draws 250 mA from the 24V DC supply. A supercapacitor retains the real-time clock for 14 days without power. This storage maintains event timestamps during panel shutdowns. Therefore, the panel displays correct time after power restoration.

Operating Conditions and Environmental Ratings

The panel withstands temperatures from 0°C to 50°C. Its front face carries an IP65 rating for water and dust resistance. Users can clean the panel with standard industrial cleaning agents. This durability suits harsh factory environments with frequent washdowns.
