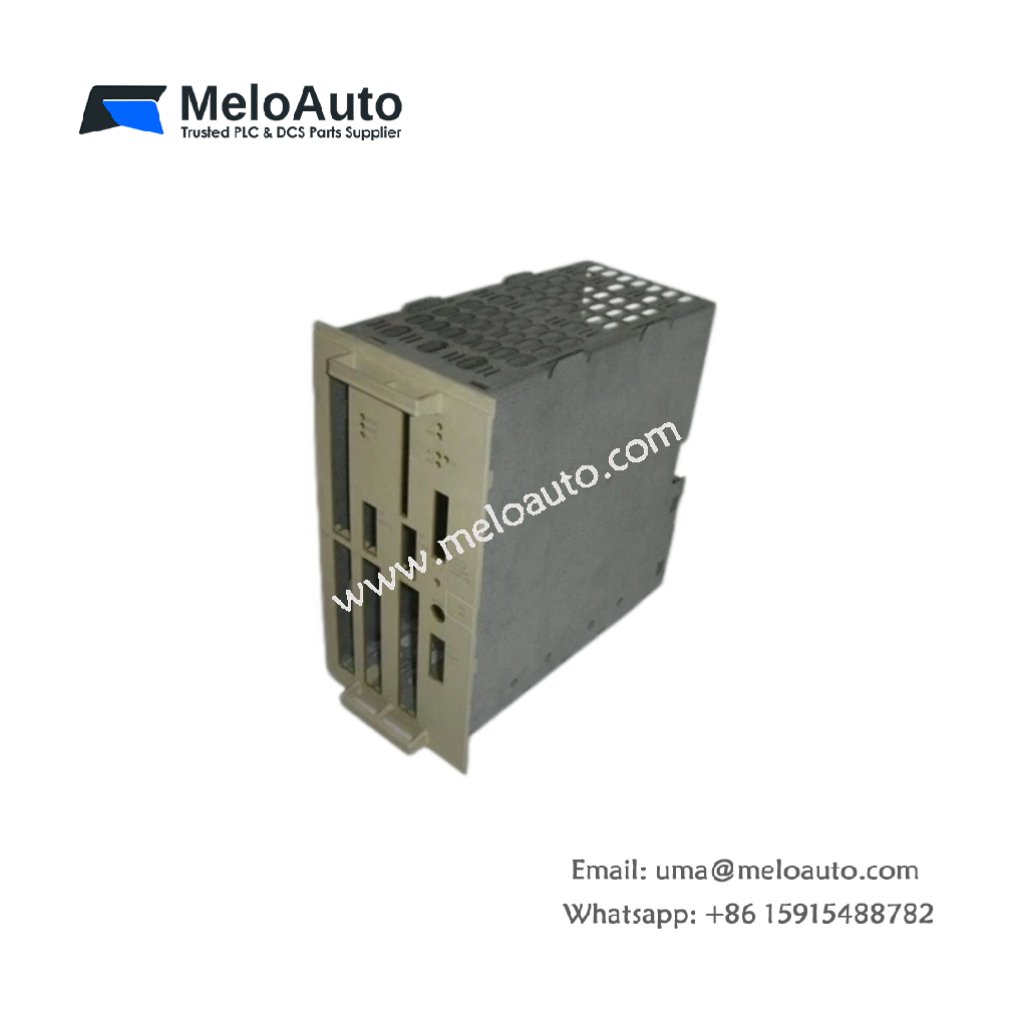

ABB 3BSE003641R1 Processor Module

This processor module executes user logic for ABB Advant Controller 70 systems. It manages real-time control tasks and communication for industrial automation. Therefore, this component suits demanding applications in manufacturing and process industries.

Physical Dimensions and Weight Specifications

The ABB 3BSE003641R1 occupies one standard slot in the Advant chassis. Its housing measures 250 mm in depth for backplane connectivity. The module weighs approximately 0.82 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The ABB 3BSE003641R1 provides one Ethernet port for plant network connectivity. A second RS-232 port supports local programming and diagnostics. The front panel carries a 9-pin D-sub connector for remote I/O communication. Hence, users can access this processor with standard cables.

Component Count and Onboard Memory

This processor module contains one main board with a 32-bit RISC processor. The board holds 512 KB of battery-backed RAM for user programs. You will also find 2 MB of flash memory for non-volatile storage. An onboard real-time clock maintains schedule data during power cycles.

Energy Storage and Power Consumption

The ABB 3BSE003641R1 draws 350 mA from the 5V backplane supply. A lithium battery retains RAM data for 1,000 days without external power. This battery maintains user programs during prolonged facility shutdowns. Therefore, the processor eliminates the need for frequent reprogramming after outages.

Processing Speed and I/O Capacity

The processor executes 0.15 microseconds per basic logic instruction. It handles up to 2048 digital I/O points within a single scan. Users can store up to 4096 function blocks in the flash memory. This capacity supports complex automation for large production lines
