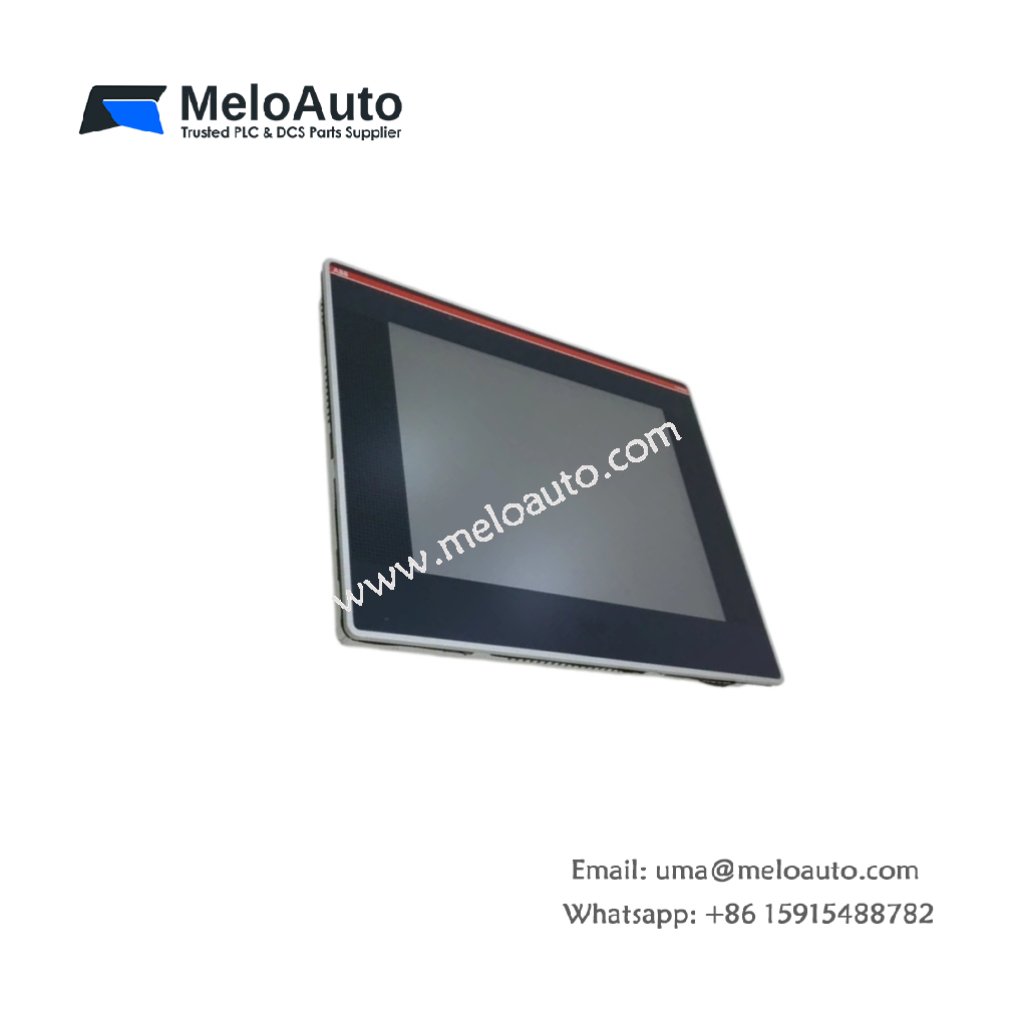

ABB 1SAP550200R0001 Touch Screen

Technical Specifications and Display Design

This touch screen display serves as an operator interface for ABB AC500 and CP600 systems. The ABB 1SAP550200R0001 allows machine operators to monitor processes and enter commands. You can mount this display onto a control cabinet door or operator console. Its rugged front face withstands washdowns and industrial dust exposure. The display weighs approximately 1.2 kilograms. Its dimensions measure 15 cm in height, 21 cm in width, and 5 cm in depth.

Parameter	Specification
Brand	ABB
Model	1SAP550200R0001
Category	Touch Screen Display / HMI Panel
Weight	1.2 kg
Height	15 cm
Width	21 cm
Depth	5 cm
Display Type	TFT LCD (color)
Display Size	7 inches diagonal
Display Resolution	800 x 480 pixels (WVGA)
Touch Technology	Resistive (4-wire)
Backlight Type	LED (white)
Brightness	400 cd/m²
Communication Ports	1 x Ethernet, 1 x RS-232, 1 x RS-485
Protocol Support	Modbus TCP/IP, Modbus RTU, ABB CP400
USB Ports	1 x USB 2.0 (host)
Input Voltage	24V DC (±20%)
Power Consumption	12 Watts maximum
Front Panel Rating	IP65 (NEMA 4X)
Energy Storage	None (no internal battery)
Component Count	TFT panel, touch sensor, LED backlight, controller PCB

Display Features and Visual Performance

The color TFT LCD presents bright, clear graphics for machine operation. An LED backlight provides uniform illumination for low-light environments. The ABB 1SAP550200R0001 displays up to 65,000 colors for vivid screen designs. You can create custom screens for machine start-up, operation, and shutdown sequences. The display automatically adjusts brightness based on ambient light conditions. A green LED indicates proper power and communication status. The screen updates within 50 milliseconds of receiving new data.

Touch Technology and User Interface

The resistive touch panel accepts input from fingers or gloved hands. You can navigate through screens using simple tap and swipe gestures. The ABB 1SAP550200R0001 includes on-screen keyboards for text and numeric entry. The touch panel registers presses accurately even with heavy work gloves. The interface responds within 10 milliseconds of touch activation. The screen remains responsive even with minor scratches or dirt. The panel includes a calibration function for touch alignment.

Communication and System Integration

You connect this display to an ABB PLC through Ethernet or serial ports. The unit supports Modbus TCP/IP for high-speed network communication. The ABB 1SAP550200R0001 also supports Modbus RTU via RS-485 for legacy systems. The USB host port allows data logging to a standard USB flash drive. You can transfer screen projects using Ethernet or USB memory. The display draws operating power from an external 24V DC supply. It requires no internal battery for configuration or data retention.

Installation and Environmental Guidelines

You must cut a mounting hole measuring 140 mm by 190 mm in the cabinet door. The display seals against the door with an included silicone rubber gasket. The front face carries an IP65 rating for dust and water protection. Consequently, you can clean the display with a damp cloth safely. The operating temperature ranges from -10°C to 55°C for reliable performance. You should avoid exposing the display to direct sunlight for extended periods. The LED backlight has an average lifespan of 70,000 operating hours.
