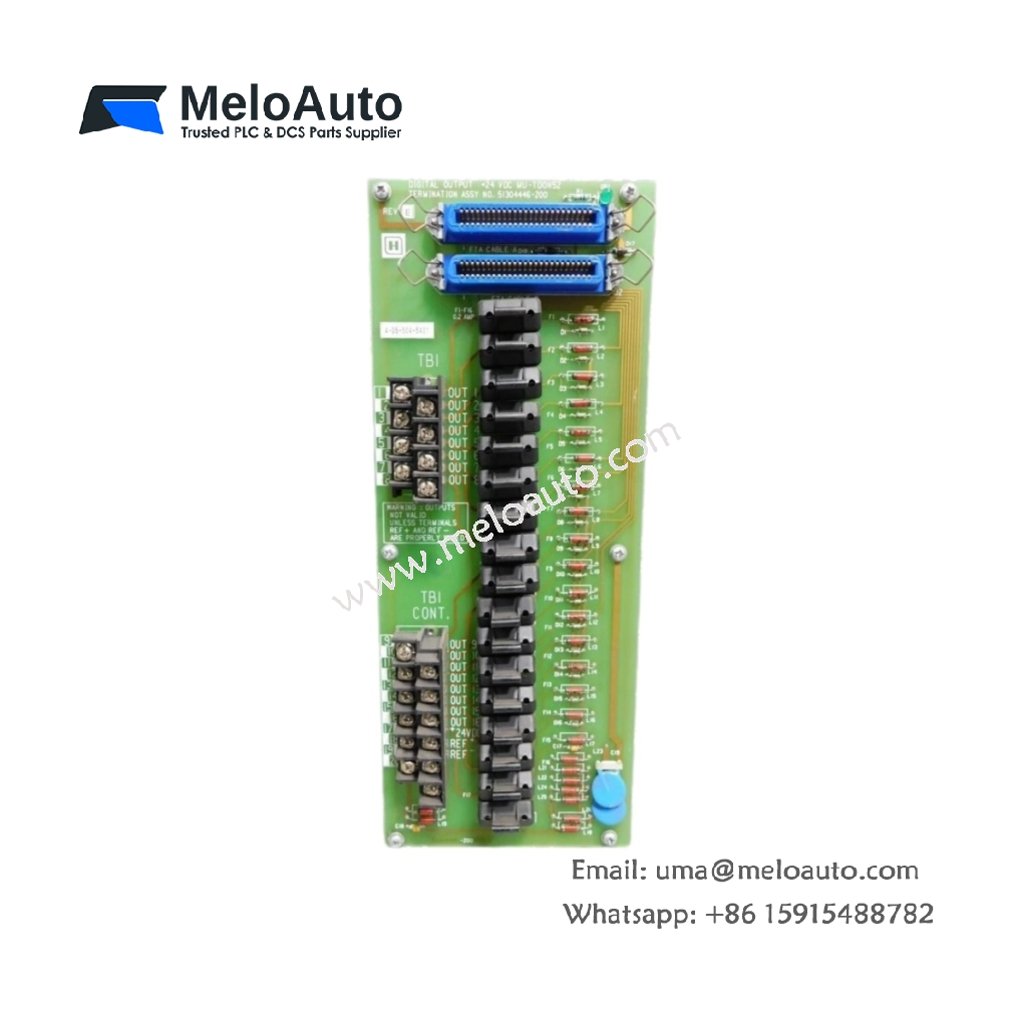

Honeywell MU-TDOD52 51304423-200 Digital Output Module

This high-density digital output module drives field actuators and indicating devices in Honeywell distributed control systems. The Honeywell MU-TDOD52 51304423-200 provides sixteen channels of 24 V DC high-side switching with comprehensive fault protection. Its compact design optimizes chassis space while delivering reliable output performance for demanding process applications.

Key Technical Specifications

Output Architecture and Load Capability

The Honeywell MU-TDOD52 51304423-200 delivers 0.5 A per channel for driving solenoids, contactors, pilot lights, and interposing relays. Its high-side switching configuration connects loads directly to the positive 24 V DC supply rail. A 1 ms response time provides adequate switching speed for most process sequencing and interlocking applications. Furthermore, the module limits total output current to 4 A, preventing excessive thermal buildup in dense configurations.

Protection Features and Diagnostic Feedback

This digital output module incorporates comprehensive electronic protection including short-circuit, overcurrent, and thermal shutdown mechanisms. The auto-recovery feature restores normal operation automatically after clearing fault conditions. Built-in diagnostics detect open-load conditions, over-temperature events, and output driver faults. Consequently, the Honeywell MU-TDOD52 51304423-200 reports detailed status information to the host controller for proactive maintenance planning.

Mechanical Design and Rack Integration

The Honeywell MU-TDOD52 51304423-200 fits standard Experion PKS and TDC 3000 rack slots with its 180 mm width and 230 mm height. Its 0.73 kg weight ensures stable installation within the chassis without additional support brackets. A removable screw terminal block accepts 28 to 12 AWG field wiring, simplifying cable connections and future modifications. LED indicators on the faceplate display each channel’s on/off status and overall module health.

Isolation Performance and Electrical Robustness

This output module provides 1,500 V AC isolation between output channels and the system backplane. Galvanic isolation protects the controller from voltage transients generated by inductive loads in the field. The design also incorporates output filtering to reduce conducted emissions and comply with industrial EMC standards. Moreover, the module withstands short-duration overvoltage events without permanent damage.

Power Consumption and Environmental Tolerance

This module draws 75 mA from the 24 V DC backplane supply during normal operation. Its 0 °C to 60 °C operating temperature range accommodates standard process control environments without derating. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for maintenance verification. The module dissipates heat efficiently through its aluminum housing without requiring forced-air cooling.

System Integration and Application Domains

The Honeywell MU-TDOD52 51304423-200 interfaces seamlessly with Experion PKS and TDC 3000 controllers through the dedicated backplane bus. It integrates with Honeywell engineering tools for straightforward configuration and commissioning. Consequently, this digital output module serves refinery valve actuation, chemical plant sequencing, power utility controls, and pharmaceutical manufacturing applications effectively.
