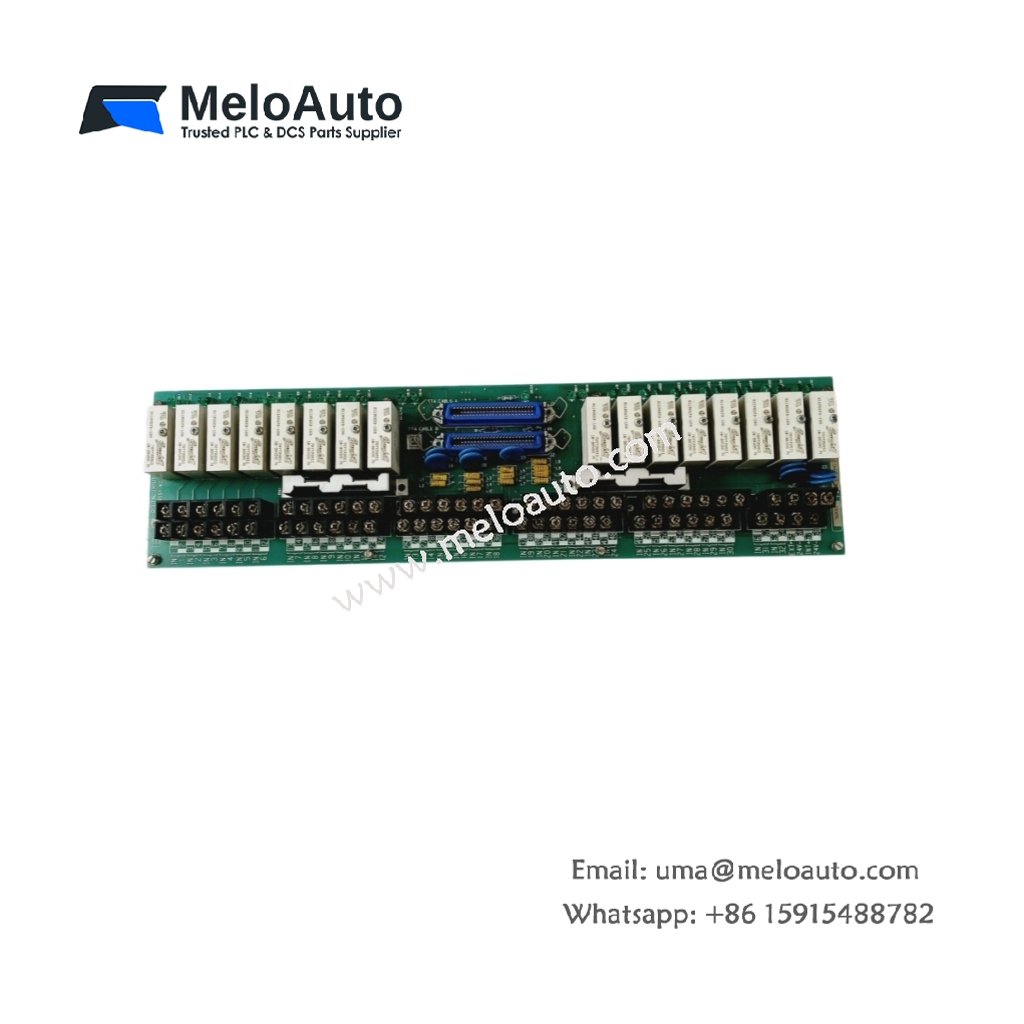

Honeywell MU-TDID52 51304441-200 Digital Input Module

This high-density digital input module captures field contact and discrete sensor signals for Honeywell distributed control systems. The Honeywell MU-TDID52 51304441-200 provides sixteen isolated channels that accept 24 V DC signals from pushbuttons, switches, and proximity sensors. Its robust design ensures reliable data acquisition in demanding process environments with significant electrical interference.

Key Technical Specifications

Input Architecture and Signal Detection

The Honeywell MU-TDID52 51304441-200 accepts 24 V DC signals from a wide variety of field devices with a 5 mA typical input current. Each of its sixteen channels features individual galvanic isolation, eliminating ground loop errors and cross-channel interference. A 2 ms input delay provides reliable noise rejection while maintaining adequate response for most process applications. Furthermore, software-configurable input filters allow operators to adjust noise immunity from 0.5 ms to 10 ms.

Channel Isolation and Noise Immunity

This digital input module offers 1,500 V AC isolation between each input channel and the system backplane. Individual channel isolation prevents ground potential differences from causing false readings in large distributed installations. The module also incorporates filtering to remove high-frequency noise from variable frequency drives and heavy switching loads. Consequently, the Honeywell MU-TDID52 51304441-200 performs reliably in electrically harsh process areas.

Mechanical Design and Rack Integration

The Honeywell MU-TDID52 51304441-200 fits standard Experion PKS and TDC 3000 rack slots with its 180 mm width and 230 mm height. Its 0.70 kg weight ensures secure mounting within the chassis without additional support brackets. A removable screw terminal block accepts 28 to 12 AWG field wiring, simplifying cable terminations and future modifications. LED indicators on the faceplate display each channel’s status and overall module health.

Configurable Input Filtering and Response

This input module provides adjustable input delays that balance noise immunity against response speed for specific application needs. The default 2 ms delay suits most general-purpose digital signal monitoring tasks. For fast event detection, users can reduce the filter to 0.5 ms for proximity sensor and counter applications. Conversely, increasing the filter to 10 ms eliminates nuisance trips from noisy switch contacts and relay chatter.

Power Consumption and Environmental Performance

This module draws 55 mA from the 24 V DC backplane supply during normal operation. Its 0 °C to 60 °C operating temperature range accommodates standard control rooms and process area installations. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for wiring inspection. The module efficiently dissipates heat through its metal housing without requiring forced-air cooling.

System Integration and Application Domains

The Honeywell MU-TDID52 51304441-200 interfaces seamlessly with Experion PKS and TDC 3000 controllers through the dedicated backplane bus. It integrates with Honeywell engineering tools for straightforward configuration and commissioning. Consequently, this digital input module serves refinery safety interlocks, chemical plant sequencing, power utility status monitoring, and material handling systems effectively.
